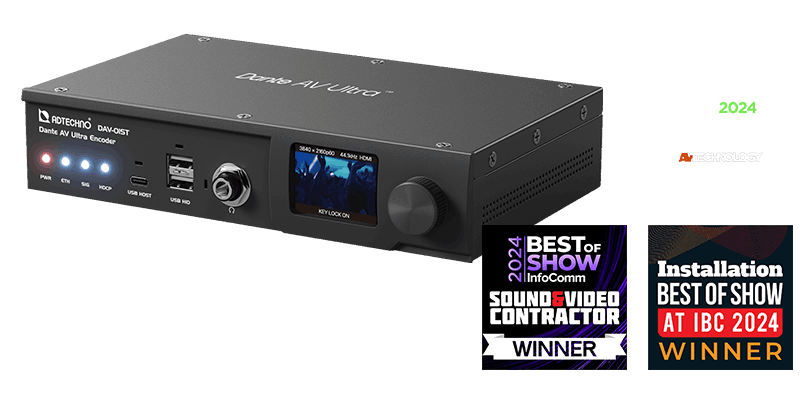

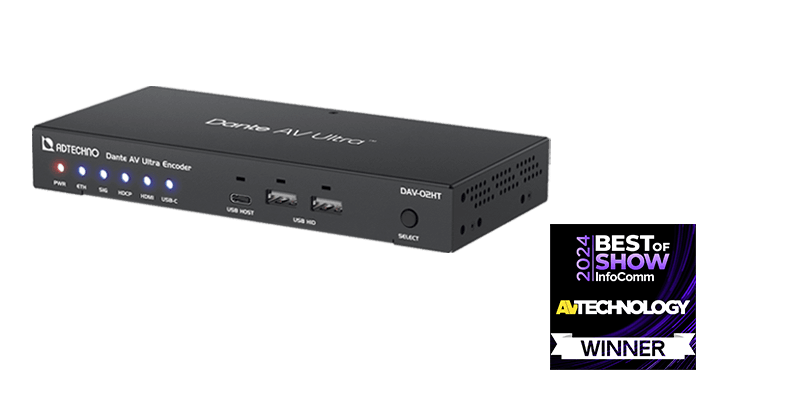

Dante AV Ultra Encoder / Decoder


Perfect AV Synchronization with Extremely Low Latency


Overview

ADTECHNO Dante AV Ultra Encoder and Decoder are the award-winning AV over IP product, powered by the Dante AV Ultra solution, allowing for lossless 4K Ultra HD video and extremely low-latency IP streaming over 1GbE network. It utilises ProAV-optimized Colibri codec, preserving high-quality graphical content for 4K60 with perfect video and audio synchronization.

BEST of SHOW 2024 AT ISE 2024 WINNER
BEST of SHOW 2024 InfoComm WINNER
BEST of SHOW 2024 InfoComm WINNER
BEST of SHOW 2024 AT IBC 2024 WINNER
BEST of SHOW 2025 InfoComm WINNER
Best in Market Awards 2025 Sound & Video Contractor WINNER
Best in Market Awards 2025 AV Technology WINNER

What is Dante AV

Dante AV is a simplified, scalable and interoperable platform for managing and distributing networked audio & video signals everywhere.

Learn more

Adaption of ProAV-optimized Colibri codec

In the main use case of ProAV, preserving high quality of complex graphical content poses a significant challenge. The new Colibri codec has been specially designed to bridge this gap, providing seamless distribution and delivery of high-quality complex graphical content for 4K60 over 1GbE. The ADTECHNO Dante AV Ultra incorporates this newly optimized video codec to flawlessly encode any graphical content while preserving visually lossless quality for video.


* Interoperability requires consistency in the video codec used on both the encoder and decoder.


Perfect Synchronization of Audio and Video

Dante AV Ultra employs a single clock to synchronize seamlessly with one another over the network using the IEEE 1588 Precision Time Protocol (PTP), delivering sub-microsecond synchronization.

Imperceptible subframe latency


Dante AV Ultra streams and transport video and audio content with highest performance and lowest latency - 4K60 with 8ms or less latency


Fast, seamless switching between video sources

Dante AV Ultra guarantees a seamless and crisp viewing experience, Instant, smooth switching between sources, even of different resolutions or refresh rates, allows the network to act as a video switcher.

The largest AV over IP technology ecosystem

Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.

Dante
Certified-User

50,000+
certified users

Products

4,000+
products

Manufacturer

600+
manufacturers

Dante AV family comparisons

Dante AV UltraDante AV-ADante AV-H
Video CodecColibriASPEEDH.264/265
Resolution SupportUp to 4Kp60 4:4:4Up to 4Kp60 4:4:4Up to 4Kp60 4:2:0
Bandwidth~ 700 Mbps~ 700 Mbps~ 30 Mbps
LatencySub Frame ~ 8 msSingle Frame ~ 17 msMultiple Frames ~ 100 ms
Common AV ClockYesNoNo
HDCP SupportYesYesNo
Dante Audio8-ch2-ch2-ch
Dante Studio Software SupportYesNoYes
Dante-Controller

Dante Controller

Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.

Learn more

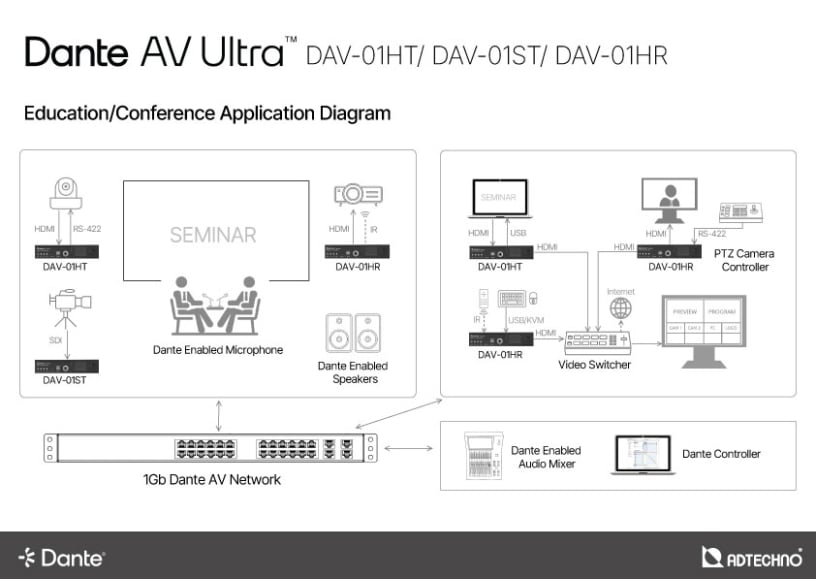

Application Diagram

Application Diagram

We have a collection of system diagrams depicting various common scenarios for ProAV applications. These include Dante AV system diagrams tailored for education/conference, broadcast, and concert applications.

Download
NetworkSwitch NetgearAV

Network Switch Guide

The following features are required for the Dante AV Ultra encoder and decoder to work seamlessly within a single network switch system:

• 1GbE Managed
• Multicast capabilities
• IGMP Snooping and Querier
• Immediate and Fast Leave
• QoS (Quality of Service)

For more details, please consult Audinate's website.

Learn more

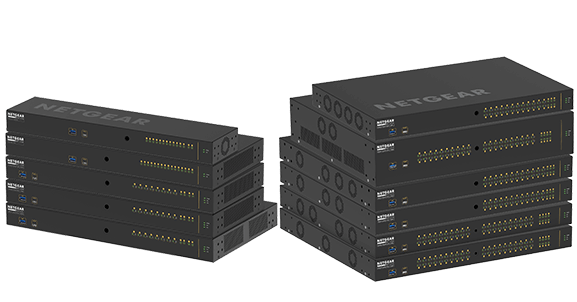

NETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.

Learn more
