Dante AV Ultra

 Dante AV Ultra Colibri to Intel® Smart Display Module

DAV-02SBL

Next-Gen AV Over IP, Built Into Your Display.

Overview

The DAV-03SBL is an advanced AV solution built on the Intel® Smart Display Module platform, enabling seamless integration into Intel® SDM-compatible displays and projectors while eliminating the need for external equipment such as wall boxes or patch panels.
It delivers high-quality 4K UHD 60p 4:4:4 video and precise audio transmission with ultra-low latency and perfect synchronization over a single 1GbE IP connection. Utilizing the Colibri codec, the DAV-03SBL ensures real-time AV delivery, ideal for live events and large-scale installations. Fully compatible with Dante AV Ultra, it supports centralized control via Dante Controller, Dante Director, Dante Domain Manager, and Dante Studio. AES67 support ensures interoperability with other AES67-compliant devices.
With dual Ethernet ports, the DAV-03SBL enables daisy-chain connectivity for simplified video wall and multi-screen installations, reducing system complexity and cost.
Designed for corporate AV, education, digital signage, broadcasting, and live events, the DAV-03SBL offers outstanding flexibility, scalability, and reliability for professional AV environments.
 Key Features
  • Stunning 4K UHD 60p 4:4:4 Video Output
  • Visually Lossless Colibri Codec Compression
  • Intel® SDM-L Platform Integration
  • Dual Ethernet Ports with Native Daisy-Chain Support
  • Native 5x5 Video Wall Synchronization
  • Flexible Power Configuration (PoE & SDM Host Power)
  • Seamless Integration with the Full Dante Ecosystem
  • AES67 Audio Interoperability

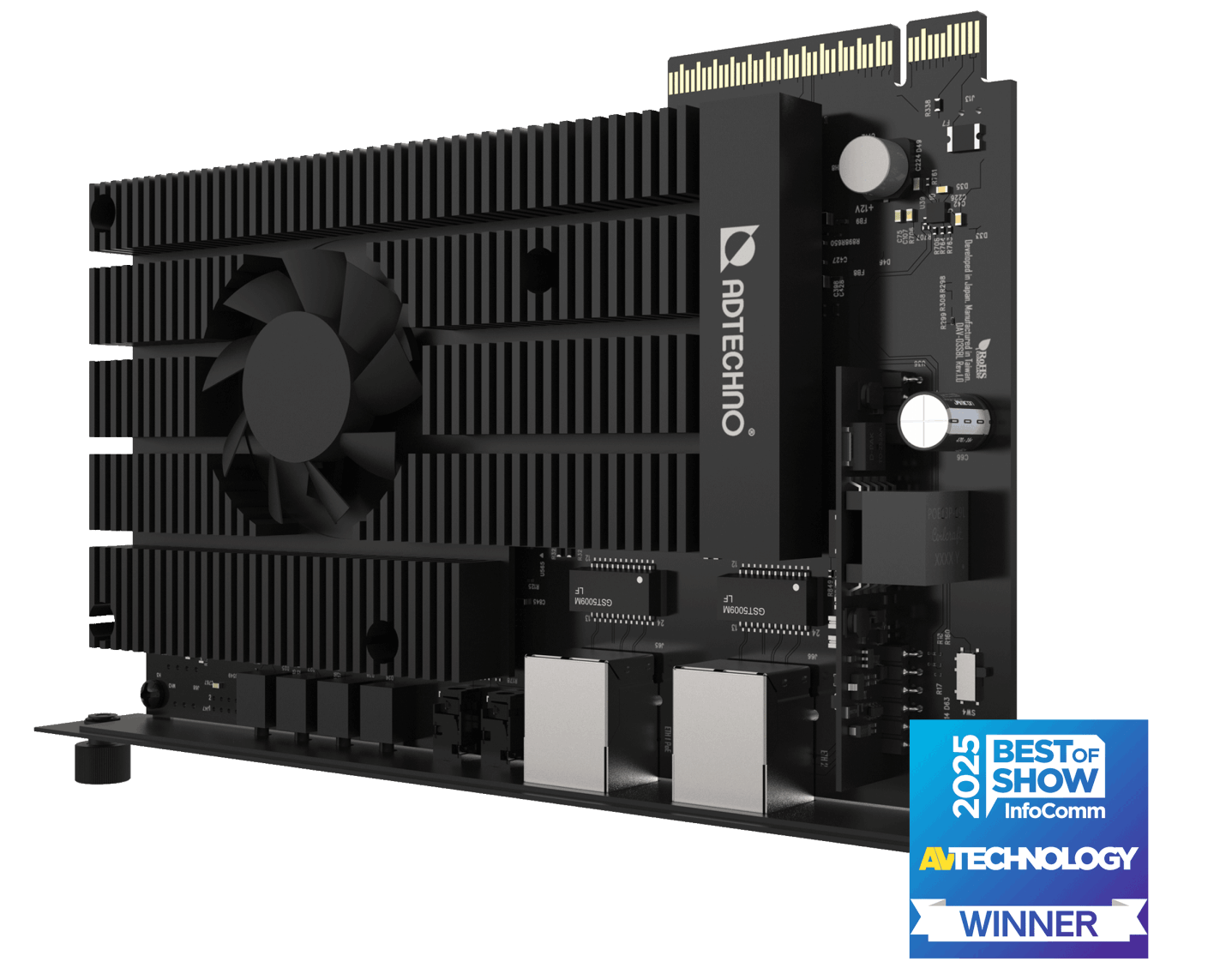

DAV-03SBL_02

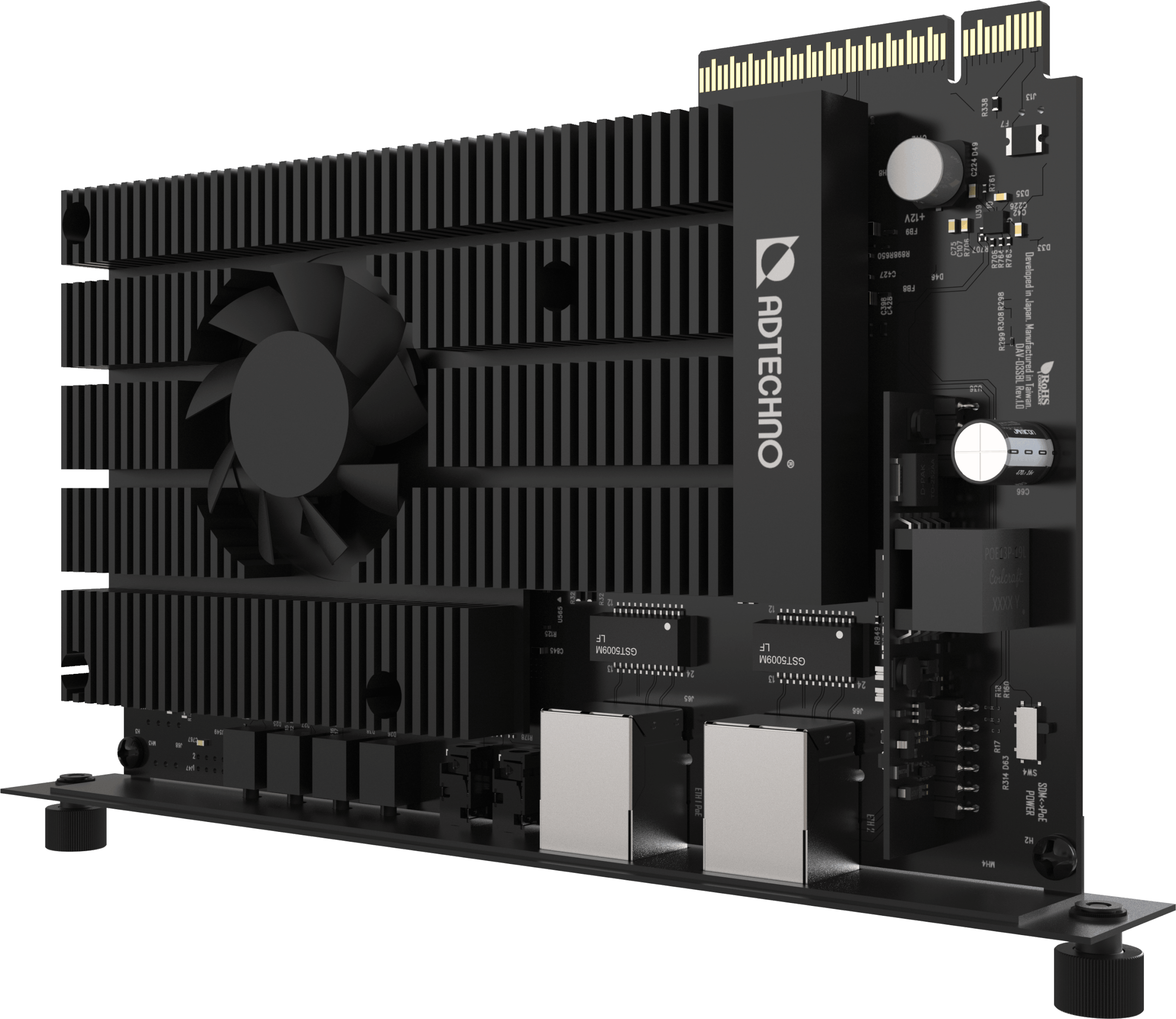

Dante AV Ultra Smart Display Module DAV-03SBL
Dante AV Ultra Colibri to Intel® SDM

• Up to 4K Ultra HD 60p 4:4:4
• HDR 10 & HLG
• Support Videowall
• Daisy-Chain Connectivity
• 1GbE PoE IP + 1GbE IP
• IR In/Out ports

Stunning 4K UHD 60p 4:4:4 Video Output

Experience uncompromised visual clarity with ultra-detailed 4K UHD resolution at 60 frames per second and 4:4:4 chroma subsampling. Perfect for demanding environments like live events, broadcasting, digital signage, and mission-critical monitoring, where every pixel counts.


Intel® Smart Display Module Platform Integration

Designed for Intel® SDM-L, the DAV-03SBL fits directly into compatible displays and projectors. This eliminates the need for external AV receivers or decoder boxes, enabling elegant, all-in-one installations with reduced system complexity.

Dual Ethernet Ports with Native Daisy-Chain Support

Simplify your network architecture with built-in dual Ethernet ports that support daisy-chain connections. Easily distribute signals across multiple displays without the need for external switches or hubs, reducing installation costs and potential points of failure.

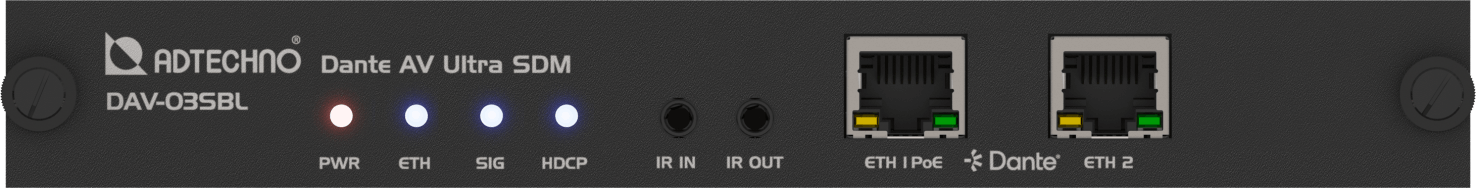

DAV-03SBL_04

Native 5x5 Video Wall Synchronization

Create immersive large-scale video walls with support for up to 25 synchronized displays. Thanks to built-in synchronization and Dante AV Ultra precision timing, no external processors or synchronization tools are required—just plug, configure, and deploy.

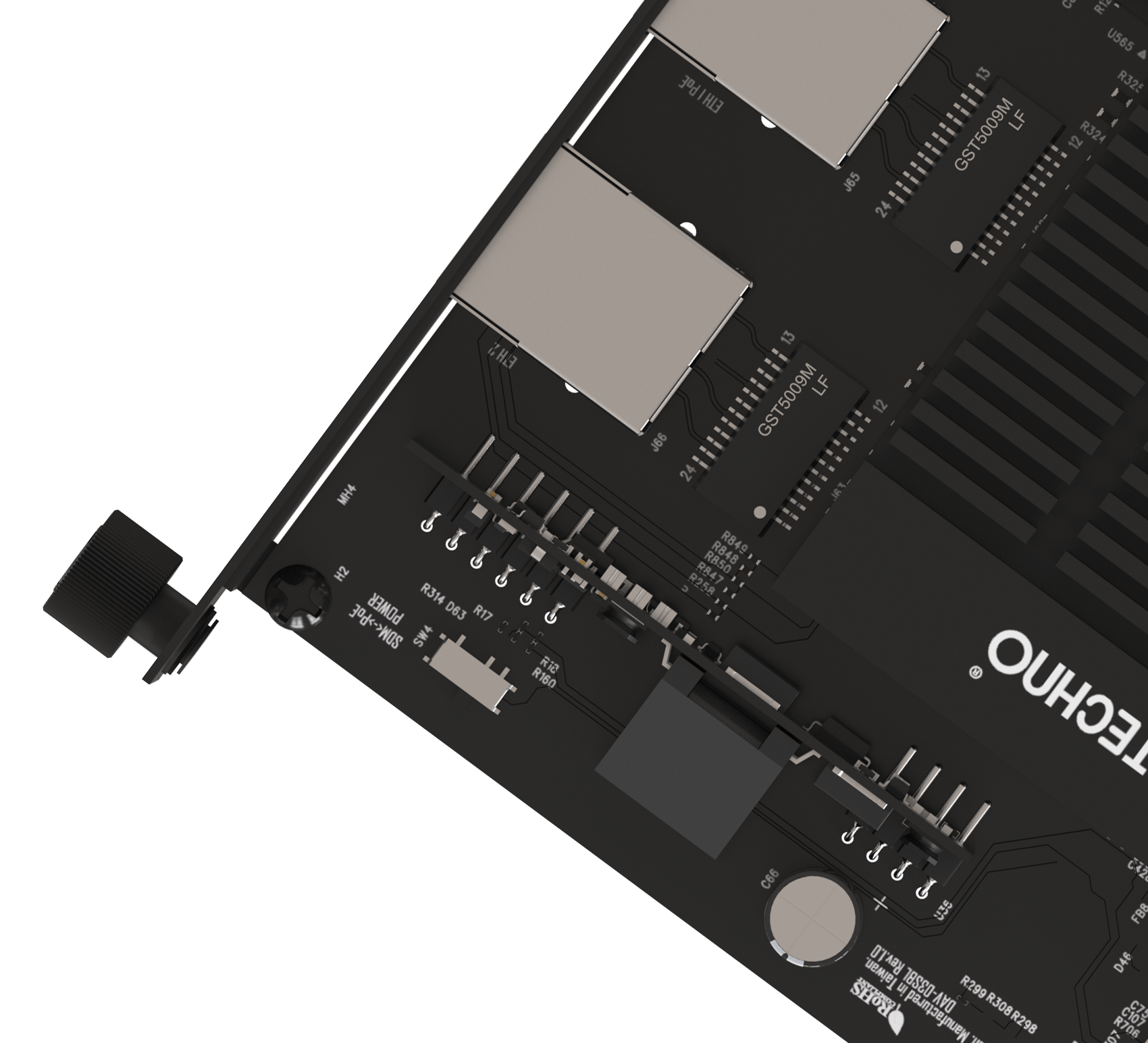

Flexible Power Configuration (PoE & SDM Host Power)

Power the module either via Power over Ethernet (PoE) or directly through the Intel® SDM slot from the host display. This dual-power approach simplifies deployment and eliminates the need for bulky adapters or separate power supplies.

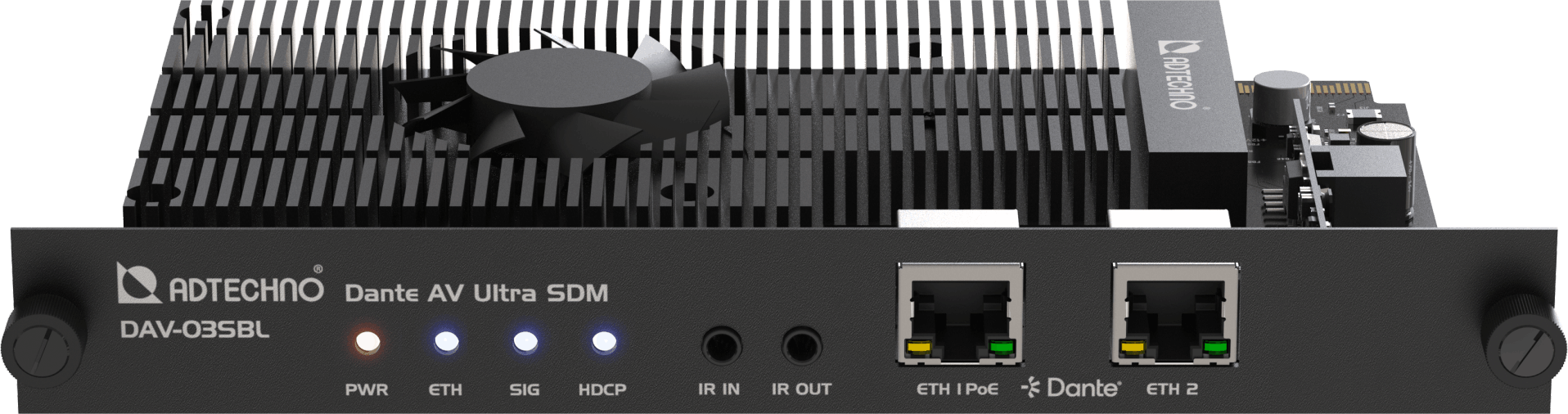

DAV-03SBL_03

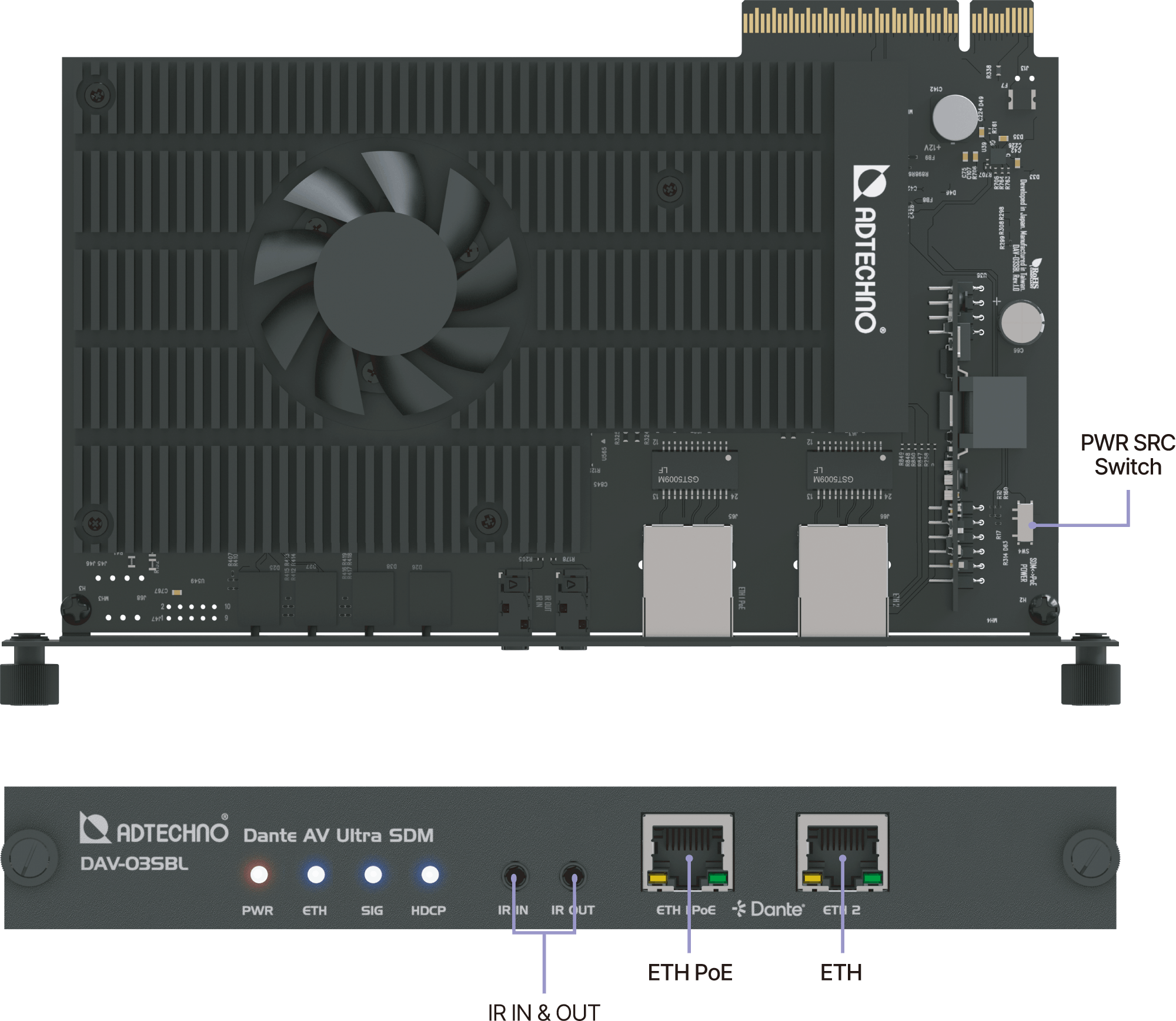

Connections

DAV-03_Connections

Specifications

DAV-03SBL Dante AV Ultra Smart Display Module - Dante AV Ultra Colibri to Intel® SDM

Audio/Video Input: 1 x 1 x RJ-45 with PoE - 1GbE
Audio/Video Output: 1 x SDM Golden Finger, 1 x RJ-45*
IR Input: 1 x 3.5mm stereo jack
IR Output: 1 x 3.5mm stereo jack
SDM I/O Interface: 1 x HDMI 2.0, 1 x USB HID, 1 x RS-232, 1 x Ethernet (1000BASE-T)
100 meters maximum with CAT 5e/6
Dimensions: 195 (W) x 112 (D) x 25 (H) mm *protrusions not included
Power: PoE 802.3 af or SDM Host
Power Consumption: 10W max.
Operating Temperature: 0 to 40 ℃ (32 to 104 ℉)
Storage Temperature: -40 to 60 ℃ (-40 to 140 ℉)
Operating Humidity: 10 - 90% noncondensing
Box Content: 1 x DAV-03SBL, 1 x Quick User Guide
Warranty: 1 year

Formats

SDM Video Output Format
(DAV-03SBL)

4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576p 50
