Touch Screen Monitor8.9" wide - LCD8901MT
- 8.9inch FHD (1920x1200) IPS Panel
- Supports HDMI, VGA, Video and Audio input
- HDCP compliant ※1)
- The capacitive 10point multi-touch panel
- Configurable aspect ratio
- Pixel-to-pixel mode and Image flip function
- Stepless adjustable stand with low CG
- VESA mount FPMPMI 75×75mm compatible
- An exclusive non-glare protection film (optional)
Related Links
Introduction
LCD8901MT is an industrial multimedia display featuring an 8.9inch 1920x1200 Full HD IPS panel.
High durability is achieved by using OCA (Optical clear adhesive) and 6H hard glass panel. It supports HDMI, VGA, Video (RCA) and audio inputs as well as a 3.5mm audio output. It is also capable of displaying HDCP protected media contents such as Blu-ray. ※1)
The capacitive multi-touch panel is compatible with Windows10 native supported 10point multi-touch function enabling easy use.
Aspect ratio can be configured to [Full screen (16:10)], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu. Other functions include Pixel-to-pixel mode, underscan and image flip function to adapt to various installations and applications.
It also features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The LCD8901MT also includes holes that can be used with wall-mount hooks and is VESA mount FPMPMI 75×75mm compatible.
We also provide an optional non-glare protective film to reduce reflection from fluorescent lamps and sunlight.
The versatility of the LCD8901MT makes it ideal for use as a sub-monitor for servers, PCs, inspection at factory lines, educational institutes, exhibitions, showrooms, video conferences, digital signage, as an OEM part integrated into other equipment and home use.
Features

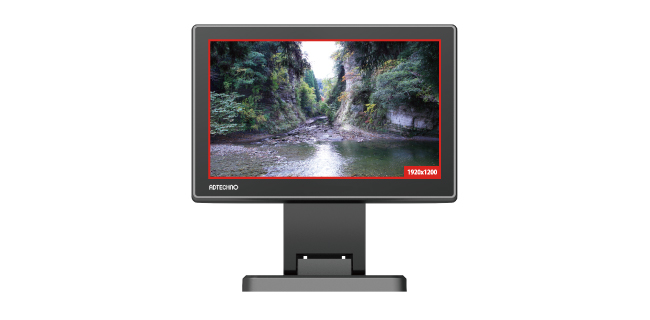

8.9inch Full HD IPS panel
The LCD8901MT uses a Full HD (1920x1200) 8.9inch IPS panel with high brightness of 350cd/m2, wide viewing angles of 170(H) / 170(V) degrees and high contrast of ratio of 800:1.

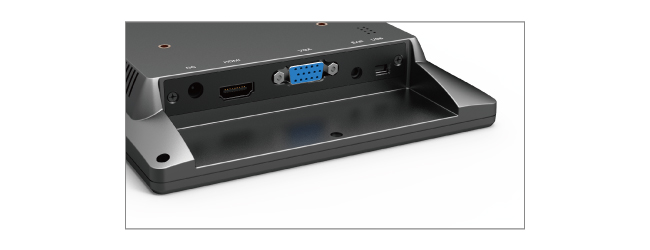

Support for HDMI, VGA, Video input
Support for HDMI, VGA, Video (RCA) input. Maximum resolution is 4K UHD@30 for digital and 1920x1200 for VGA input. Video (RCA) inputs are also provided to ensure broad compatibility with various professional and consumer products.
HDCP compliant
LCD8901MT is compliant with HDCP and is capable of displaying HDCP protected media and can be connected to Blu-ray players and game consoles. ※1)
10-point multi-touch panel
Recognizing up to 10 points of finger touch, the LCD8901MT multi-touch LCD monitor allows up to 10 fingers to write on the screen at the same time. It delivers a smooth, responsive touch experience for a variety of Windows 10 home entertainment, office work, education and customed commercial applications.

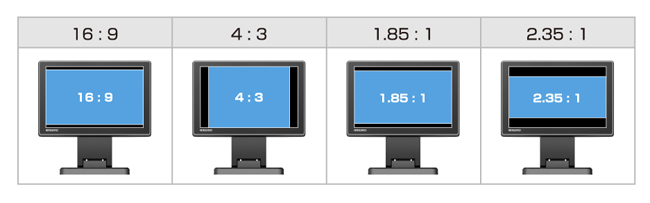

Configurable aspect ratio
Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

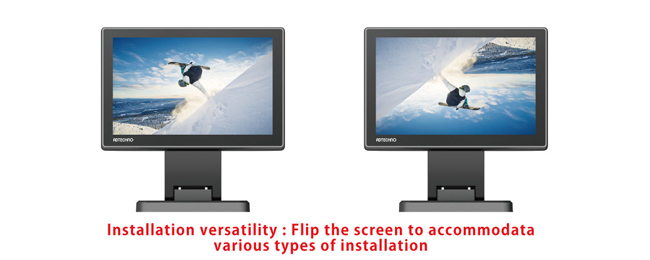

Pixel-to-pixel mode and Image flip function
When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution. The image on the screen can be flipped to adapt to various installations and applications.

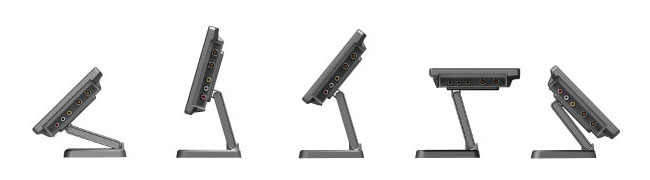

Stepless adjustable stand with low CG (center of gravity)
LCD8901MT features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).
VESA mount FPMPMI 75×75mm compatible
LCD8901MT is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75x75mm mounts. Removal of the stand is required to use the VESA mount holes.

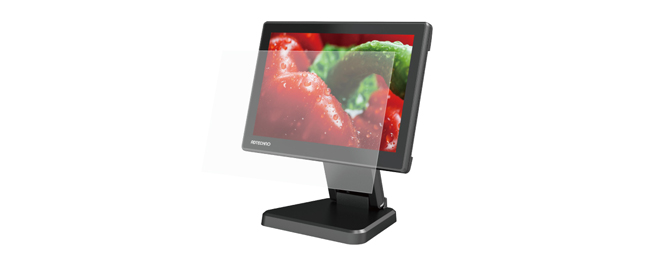

Exclusive non-glare protection film (optional)
Optional non-glare protection film to prevent reflection from fluorescent lamps and sunlight. It will also protect against scratches, fingerprint, and dust.
Product specifications
| Model No. | LCD8901MT | ||
|---|---|---|---|
| Color | Black | ||
| Panel | Size | 8.9inch 16:10 wide format IPS panel | |
| Surface | Glare / Hard coating 6H | ||
| Resolution | 1920 x 1200 | ||
| Brightness | 350cd/m2 | ||
| Contrast ratio | 800:1 | ||
| View Angle | 170°(H) / 170°(V) | ||
| Touch Panel | Type | Capacitive | |
| Control interface | USB (Mini B) | ||
| Input | HDMI x 1 / VGA x 1 / Video (RCA) x 1 / Audio (RCA) L・R x 1 | ||
| Output | 3.5mm stereo mini jack | ||
| Speaker | 1W x 1 (L only) | ||
| VESA Standard | 75 x 75 mm | ||
| Power | DC 7～24V (recommended 12V) | ||
| Power Consumption | Max. 10W | ||
| Operating Temperature | 0 ～ 50℃s | ||
| Storage Temperature | -20 ～ 60℃ | ||
| Operation humidity / Storage humidity | 10 ～ 90% (without condensation) | ||
| size | 222(W) x 153(H) x 32(D) mm (not including stand) | ||
| Weight | Approx. 545g (not including stand) | ||
| Package Contents | AC adaptor / HDMI Cable / VGA Cable / USB Cable/ Driver CD-ROM /Manual | ||
| Warranty | 1-year | ||
| Certification | FCC / CE / PSE / RoHS | ||
※1) HDCP 2.2 is not supported
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Windows and Windows10 is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
Supported Formats
| Format | Resolution | Frequency(Hz) |
|---|---|---|
| HDMI | 4K DCI(4096×2160) | 23.976 / 24 |
| 4K UHD(3840×2160) | 23.976 / 24 / 25 / 29.97 / 30 | |
| 1080p | 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 | |
| 1080i | 50 / 59.94 / 60 | |
| 720p | 25 / 29.97 / 30 / 50 / 59.94 / 60 | |
| 576p | 50 | |
| 576i | 50 | |
| 480p | 59.94 / 60 | |
| 480i | 59.94 / 60 | |
| VGA | 800×600 | 60 |
| 1024X768 | 60 | |
| 1280X1024 | 60 | |
| 1366×768 | 60 | |
| 1600X1200 | 60 | |
| 1920X1080 | 60 | |
| 1920X1200 | 60 | |
| Video | NTSC / PAL | |
