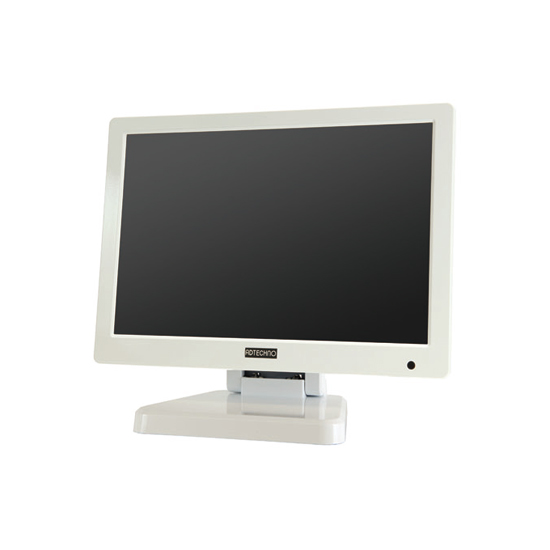

Touch Screen Monitor7" wide - LCD7620T / LCD7620TW

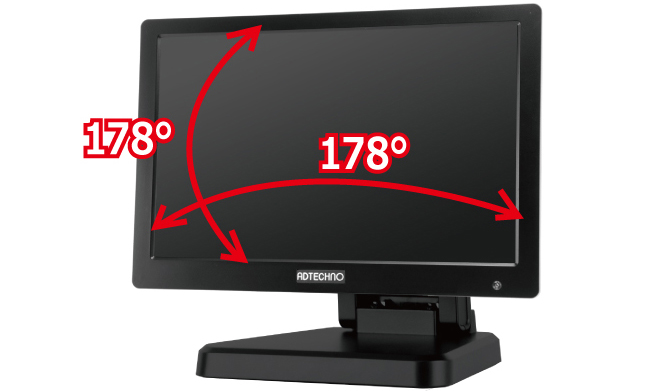

　LCD7620T features a 7 inch 1280x800 (16:10) IPS panel with 5-wire resistive touch panels, brightness of 300 cd/m2, view angle of 178° (vertically and horizontally), and a contrast ratio of 800:1.

　LCD7620T is capable of displaying resolutions up to 1080p (digital) and WUXGA 1920x200 (analog), by downscanning the larger resolutions to fit the 1280x800 panel. The aspect ratio can also be manually configured from the following presets: [Full Screen]. [4:3], [16:9], [1.85:1], [2.35:1]. Additionally, the LCD7620T is HDCP 1.4 compliant, capable of displaying HDCP protected sources such as Blu-ray, etc.et

　LCD7620T also features pixel-to-pixel mode, underscan, image flip, and also includes a function key, activated by holding down the Input/F1 button, which can be manually configured to trigger various functions for quick access. Equipped along with the speaker is a 3.5mm audio jack for external speaker connections.

　LCD7620T has a thickness of 30mm (thinnest 13mm) and is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 4 threaded holes compatible with FPMPMI 75x75mm VESA mounts. Furthermore, built-in to the rear bottom corner of the LCD7620T is a loop for attaching anti-theft cables, etc.c

　The versatility of the LCD7620T makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

5-wire resistive touch panel

The 5-wire resistive touch panel addresses the durability weakness point of the 4-wire resistive touch panel, and also produces a smoother touch analysis. Resistive touch panels also have the advantage over capacitive touch panels in versatility, usable with stylus touch pens or gloved hands.

Supports both Digital and Analog input

Digital and analog input signals such as HDMI, DVI-D, VGA and Video compatible.

Supports both Digital and Analog input

Digital and analog input signals such as HDMI, DVI-D, VGA and Video compatible.

HDCP (High-bandwidth Digital Content Protection) 1.4 compliant

LCD7620T is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.

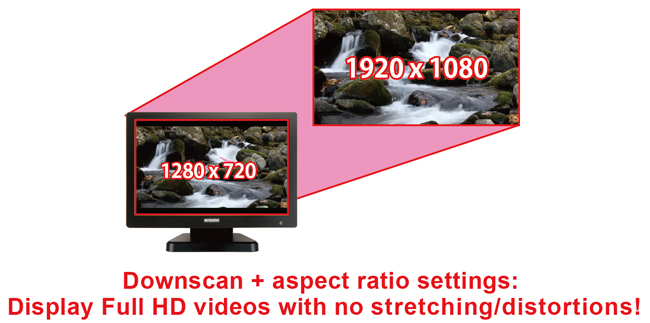

Downscan and configurable aspect ratio

LCD7620T supports up to 1080p (digital) and WUXGA 1920x200 (analog) resolutions, downscanning larger resolutions to fit the 1280・00 (16:10) screen. Additionally, aspect ratio can be configured via the OSD (on screen display) settings menu. Selectable aspect ratio presets include: [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1].

Pixel-to-pixel mode and underscan function

Pixel-to-pixel mode allows users to display media contents at its original resolution. Underscan function allows users to decease the size of the original media contents to fully fit the monitor screen.

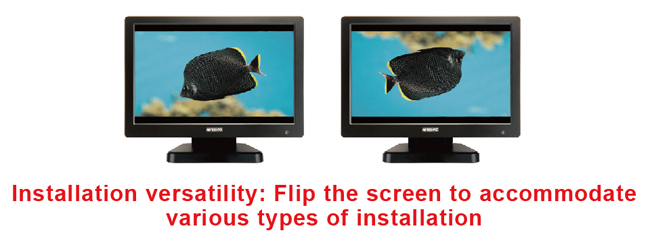

Image flip function

Flip the screen to adapt to installation and application.

Stepless adjustable stand with low CG (centre of gravity)

LCD7620T features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).
