Touch Screen Monitor17.3" wide - LCD1730MT

  • Max 4K@30 input
  • Full HD IPS Panel
  • Capacitive 10-point multi-touch panel
  • 6H hard protective panel
  • HDMI(HDCP support)/VGA/Video/Audio input
  • Cable clamp available
  • Adjustable stand with low center of gravity
  • VESA 75x75 / 100x100 mm support

Related Links

Introduction

LCD1730MT is a professional multimedia display that uses a full HD resolution (1920x1080) 17.3-inch wide (16: 9) IPS LCD panel. High hardness (hardness 6H) protection glass is attached to the LCD surface with OCA (Optical Clear Adhesive) optical transparent adhesive to accomplish a clear and strong design.

There are video input interfaces, HDMI, DVI-D, VGA, video (RCA), and audio (red / white RCA) input interface, supporting up to 4K @ 30 (10.2Gbps) video input. The HDMI and DVI-D input interface also support HDCP which is required for playing copyrighted digital content such as Blu-ray. * 1)

The LCD1730MT is enables 10-point multi-touch operation, which is supported by Windows 10 as standard, and can be used comfortably with light touch operation. * 2)

The display aspect ratio is selectable from "Full (16: 9)", "4: 3", "1.85: 1", and "2.35: 1" from the OSD (On Screen Display) setting menu. Equipped with various functions such as under scan and reverse display. LCD1730MT uses a function key to call these functions and a key lock function that disables all button operations to prevents erroneous operations.

There is a VESA mount interface with standard 75x75mm and 100x100mm screw holes in the back of the monitor. Two self-standing stands [Model No. STD_001] and [Model No.: SH_STD] can be mounted via VESA mount are available as options. You can freely adjust the angle according to the installation. In addition, a cable clamp to prevent disconnection is included as standard accessory. By attaching the cable clamp to the dedicated insertion hole on the side of each connection terminal (HDMI / Video / Earphone jack) and fixing it to the cable, you can prevent the cable from accidentally loosening or falling off. The DC connector connection uses a lock-type connector, which can prevent the cable from accidental disconnection during the operation at the field.

A special metal bracket [Model No.: LC17BRK] for mounting on a standard EIA 19-inch rack is available as option. LCD1730MT can be mounted on an EIA rack by taking 6U space.

LCD1730MT is one of the largest size monitors that can be mounted on an standard EIA rack. Not only being ideal as a server rack mount monitor, LCD1730MT can be also used in a variety of environments, from business applications to industrial and personal use, such as post-production, broadcasting stations, educational facilities, exhibitions, events, showrooms, video conferencing, and digital signage etc.

Features

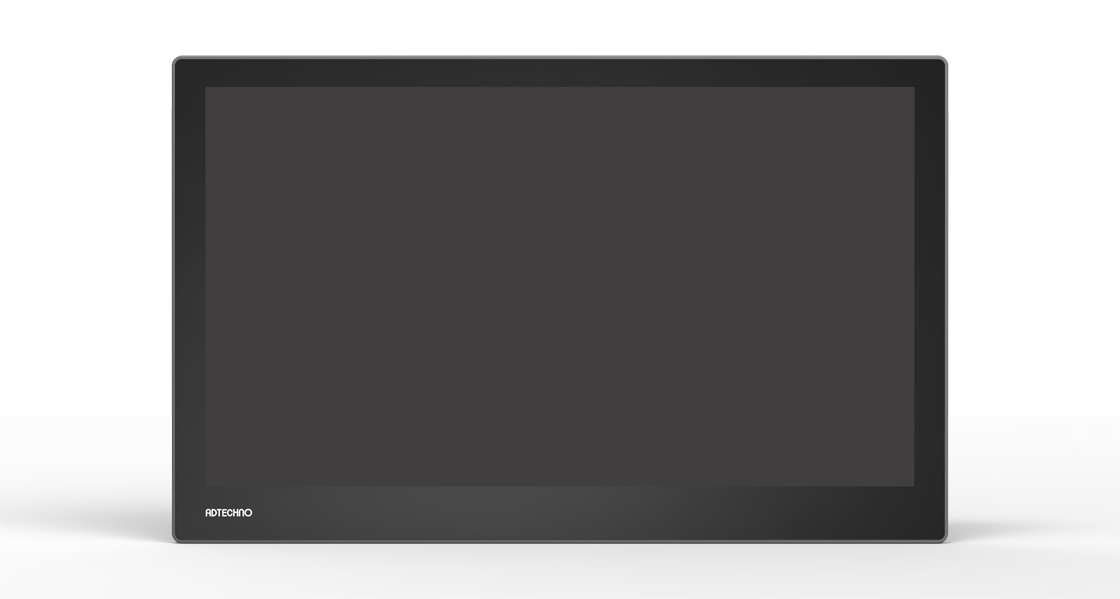

17.3-inch full HD (1920x1080) IPS panel

LCD1730MT uses a Full HD resolution (1920x1080) 17.3 inch, high brightness (250cd / m2), wide viewing angle (170 °/ 170 °), high contrast ratio (800: 1) IPS liquid crystal panel. By adopting the full HD panel, it can display images in clear colors with less color change. In addition, OCA (Optical Clear Adhesive) optical transparent adhesive is used to attach high hardness (hardness 6H) glass to the liquid crystal surface to accomplish a clear and strong design.

17.3-inch full HD (1920x1080) IPS panel

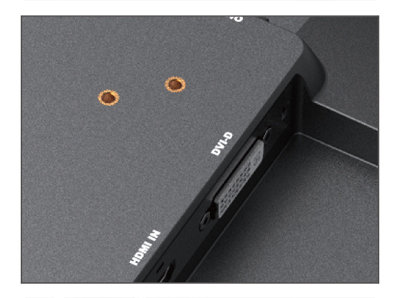

Support for HDMI, VGA, Video Input

Support for HDMI, VGA, Video Input

There are HDMI, DVI-D, VGA, video (RCA) input terminals for video and audio (red / white RCA) input terminals. Digital video signal input supports up to 4K UHD @ 30 and analog video up to 1920x1200. Video (RCA) inputs are also provided to ensure broad compatibility with various professional and consumer products. The HDMI input interface also supports HDCP which is required for playing copyrighted digital content such as Blu-ray. * 1)

10-point multi-touch panel

Recognizing up to 10 points of finger touch, the LCD1730MT multi-touch LCD monitor allows up to 10 fingers to control the screen at the same time. It delivers a smooth, responsive touch experience for a variety of Windows 10 home entertainment, office work, education and customized commercial applications. *2)

Configurable aspect ratio

Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

Configurable aspect ratio

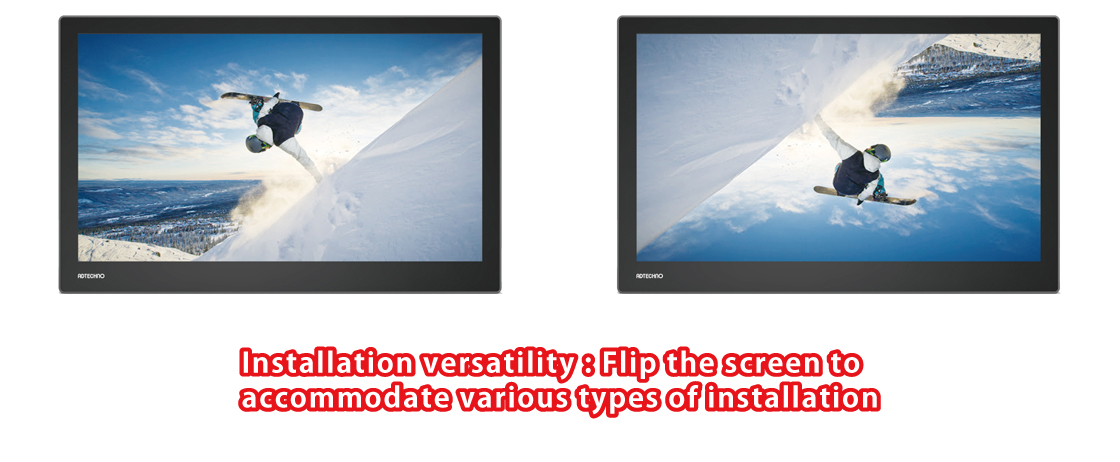

Pixel to pixel mode and Image flip function

When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution.
Image on screen can be flipped to adapt to various installations and applications.

Pixel to pixel mode and Image flip function

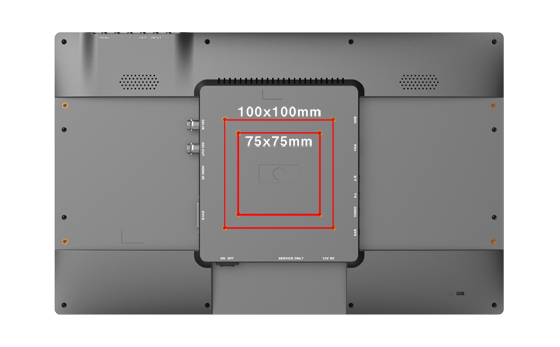

Supports standard VESA mount 75 x 75 mm and 100 x 100 mm specification

VESA mount interface with 75 x 75 mm and 100 x 100 mm screw holes are available at the backs of the monitor.

Supports standard VESA mount 75 x 75 mm and 100 x 100 mm specification

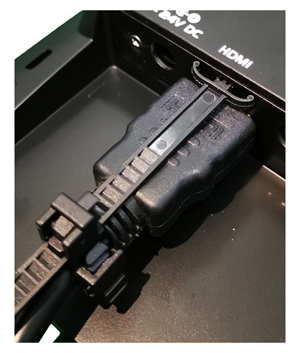

Attachable cable clamp to prevent cable disconnection

Attachable cable clamp to prevent cable disconnection

HDMI / video (RCA) / earphone jack interfaces are with a cable clamp insertion holes to prevent disconnection at each interface terminal. Cable clamps are provided as standard accessory. By attaching the cable to the monitor, you can prevent accidental disconnection and loosening of the cable.

DC Jack connector

The DC connector uses a DC Jack lock-type connector, which prevent the cable from sudden pulling off during the operation at the field.

DC Jack connector

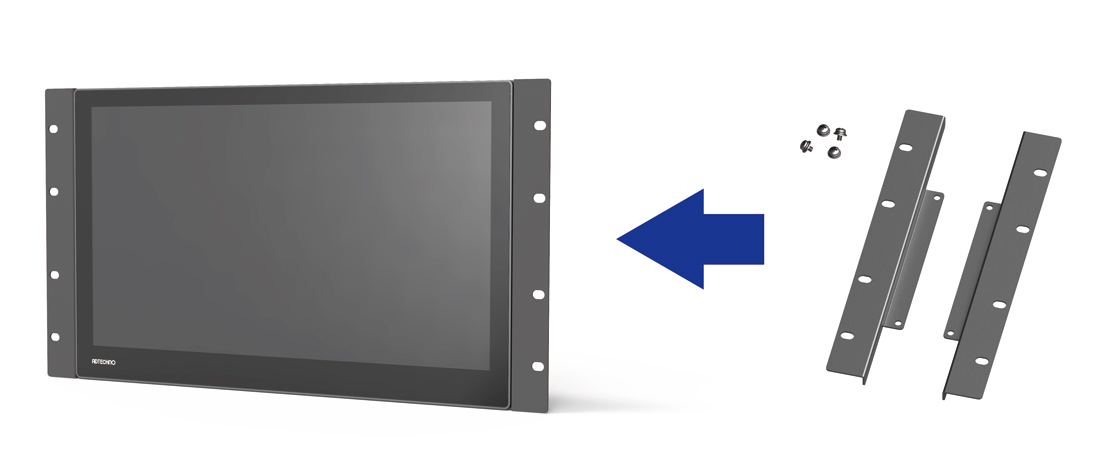

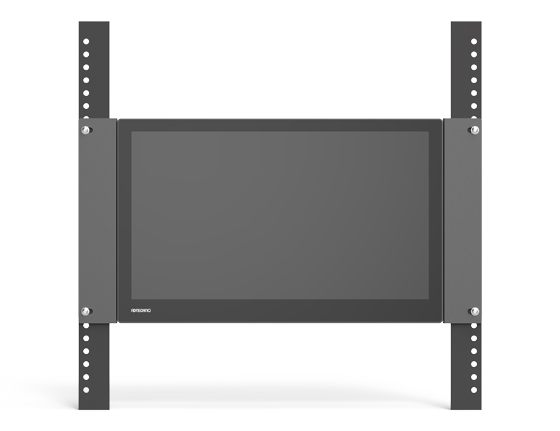

Brackets for 19-inch EIA Rack (optional)

Brackets for 19-inch EIA Rack (optional)

An optional EIA bracket, [Model No. UL17BRK] is available for mounting the LCD1730MT on a 19-inch EIA Rack.
The LCD1730MT fits on the rack with 6U.
There will be about 1.3mm of space above and below the monitor.

Brackets for 19-inch EIA Rack (optional)

Product specifications

Model No. LCD1730MT
Color Black
Panel Size 17.3” Wide(16:9)
Panel Type IPS
Surface Finish Glare / Glass(6H)
Resolution 1920 x 1080
Brightness 250 cd/m2
Contrast 800:1
View Angle 170°(H)/170°(V)
Input HDMI x 1 / DVI-D x 1 / VGA x 1 / Video(RCA) x 1 / Audio(RCA) L・R x 1
Output Earphone Jack(3.5mmΦ) x 1
Touch Panel Supported OS Windows 10 / 8.1 / 8 / 7
Control Interface PCAP 10point
Type USB mini B
Speaker 2W x 2(L/R)
VESA Standard 75x75mm / 100x100mm
Power DC 12~24V
Power Consumption Max 17W
Operating Temp. 0 ~ 50℃
Storage Temp. -20 ~ 60℃
Operating / Storage Humidity 10 ~90%
Dimension 420(W)x 264(H)x 40(D)mm
Weight About 2,150g
Included Items AC Adaptor / RCA video cable / Remote / Manual / Cable Clamp / USB Cable / Driver CD-ROM
Warranty 1-years
Certification FCC / CE / PSE(AC adaptor)/ RoHS

*1) HDCP 2.2 is not supported.
*2) Windows and Windows 10 is either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.

Supported Formats

Interface Video Format Resolution Frequency (Hz)
HDMI 480i 640×480
720×480
59.94 / 60
480p 59.94 / 60
576i 720×576 50
576p 50
720p 1280×720 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i 1920×1080 50 / 59.94 / 60
1080p 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
4K UHD 3840×2160 23.976 / 24 / 25 / 29.97 / 30
4K DCI 4096×2160 23.976 / 24
DVI-D - 720×480 60
- 800×600 60
- 1024×768 60
- 1280×720 60
- 1280×1024 60
- 1366×768 60
- 1600×1200 60
- 1920×1080 60
- 1920×1200 60
VGA - 800×600 60 / 72 / 75
- 1024×768 60 / 70 / 75
- 1280×1024 60 / 75
- 1366×768 60
- 1600×1200 60 / 65 / 70 / 75
- 1920×1080 60
- 1920×1200 60
Video NTSC 640×480 59.94
720×480 59.94
PAL 720×576 50

※HDR no support.
※YCbCr 4:2:0 no support.
※DVI-D support RGB.
※4K support 8 bit.
