Touch Screen Monitor13.3" wide - LCD1331MT

  • Max 4K@30 input
  • Full HD IPS Panel
  • 6H hard protective panel
  • PCAP 10 points multi touch support
  • HDMI(HDCP support)/VGA/Video/Audio input
  • Cable clamp available
  • Adjustable stand with low center of gravity
  • VESA 75x75 support

Related Links

Introduction

 LCD1331MT features a 13.3 inch 1920x1080 Full HD IPS panel with HDMI/ VGA/ Video & Audio input, brightness of 300 cd/m2, view angle of 170 ° (vertically and horizontally), and contrast ratio of 800:1.

 LCD1331MT employs a capacitive multi-touch panel. Windows 10 supports 10-point multi-touch operation that is supported as standard and operates with light touch operation for comfortable use.

 The robust design of LCD1331MT is realized by applying high-hardness (6H) glass to the liquid crystal surface by using OCA (Optical Clear Adhisive).

 LCD1331MT is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 4 threaded holes compatible with FPMPMI 75 x 75mm VESA mounts.

 The versatility of the LCD1331MT makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

Features

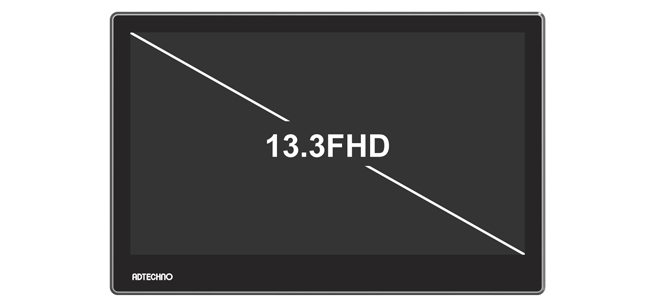

Full HD Resolution (1920x1080), wide angle (170°) IPS LCD panel

The LCD1331MT is equipped with a full HD resolution (1920 x 1080) 13.3 inch IPS panel with a brightness of 300cd/m2, contrast ratio of 800:1 and view angle of 170° (vertically and horizontally).

Full HD Resolution (1920x1080), wide angle (170°) IPS LCD panel

Supports both Digital and Analog input

Digital and analog input signals such as HDMI, VGA and Video compatible.

Supports both Digital and Analog input

HDCP (High-bandwidth Digital Content Protection) 1.4 compliant

LCD1331MT is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.

Adopts capacitive touch panel / Supports 10-point multi-touch

The touch panel model LCD1331MT uses a capacitive touch panel. Multi-touch operation of 10 points simultaneously supported as standard in Windows 10 is possible. It operates with a light touch operation and can be used comfortably.

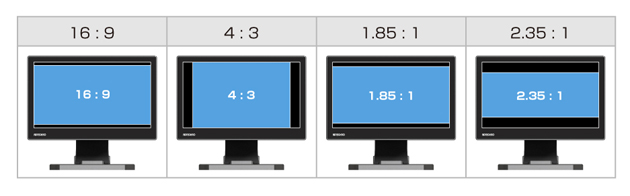

Display aspect ratio setting function

The display aspect ratio can be selected from "Full (16: 9)", "4: 3", "1.85: 1", and "2.35: 1" from the OSD (On Screen Display) setting screen.

Display aspect ratio setting function

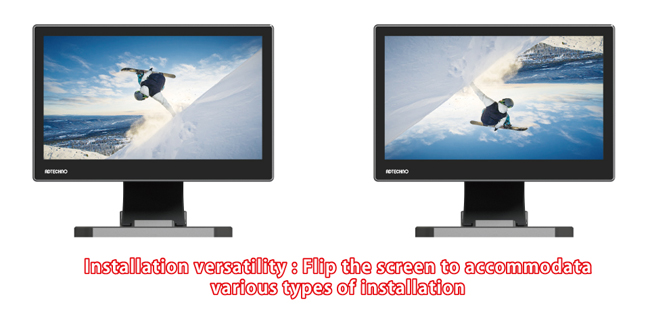

Image Flip Function

Flip the screen to adapt to installation and application.

Image Flip Function

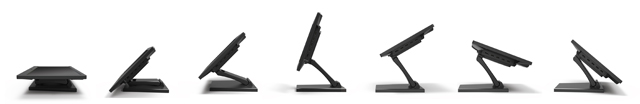

Stepless adjustable stand with low CG (center of gravity)

LCD1331MT features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

Stepless adjustable stand with low CG (center of gravity)

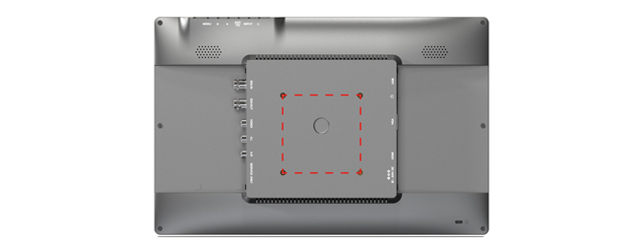

VESA mount FPMPMI 75×75mm compatible

LCD1331MT is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75・75mm mounts. Removal of the stand is required to use the VESA mount holes.

VESA mount FPMPMI 75×75mm compatible

Product specifications

Model No. LCD1331MT
Color black
Display Size 13.3”
Panel Type IPS
Resolution 1920 x 1080
Brightness 300 cd/m2
Contrast Ratio 800:1
View Angle 170°(V) / 170°(H)
Touch OS Windows 10 / 8.1 / 8 / 7
Type PCAP 10point
Control interface USB mini B
Input HDMI / VGA / Video / Audio (stereo)
Output Audio (stereo)
Speaker 2W x 2(L/R)
VESA (FPMPMI) standard 75 x 75 mm
Power DC 10 ~ 24V
Operating Temperature 0 ~ 50℃s
Storage Temperature -20 ~ 70℃
Dimensions 325.5(W) x 212(H) x 33.5(D)mm
Weight Approx. 2600g(Approx.1150g , Excluding stand)
Package Contents Monitor / Remote Control /AC Adapter
Certification FCC, CE, RoHS

※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Windows and Windows 10 is either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
