Touch Screen Monitor10.1" wide - LCD1017MT
- Max 4K@30 input
- Adopts capacitive touch panel / Supports 10-point multi-touch
- Full HD IPS Panel
- 6H hard protective panel
- HDMI(HDCP support)/VGA / Video / Audio input
- Cable clamp available
- Adjustable stand with low center of gravity
- VESA 100x100 support
Related Links
Introduction
LCD1017MT is a professional multimedia display featuring a 10.1 inch 1920x1200 Full HD IPS panel. High durability is achieved by using OCA (Optical clear adhesive) and 6H hard glass panel.
It supports HDMI, VGA, Video (RCA) and audio inputs as well as a 3.5mm audio output. It is also capable of displaying HDCP protected media contents such as Blu-ray.※1）
LCD1017MT employs a capacitive multi-touch panel. Windows 10 supports 10-point multi-touch operation that is supported as standard and operates with light touch operation for comfortable use.
Aspect ratio can be configured to [Full screen (16:10)], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu. Other functions include Pixel-to-pixel mode, under scan and image flip function to adapt to various installations and applications.
It also features a stepless adjustable stand which enables tilting and adjusting to your desired angle. LCD1017MT also includes holes that can be used with wall-mount hooks and is VESA mount FPMPMI 75×75mm compatible.
We also provide an optional non-glare protective film to reduce reflection from fluorescent lamps and sunlight.
The versatility of LCD1017MT makes it ideal for use as a sub-monitor for servers, PCs, inspection at factory lines, educational institutes, exhibitions, showrooms, video conferences, digital signage, as an OEM part integrated into other equipment and home use.
Features

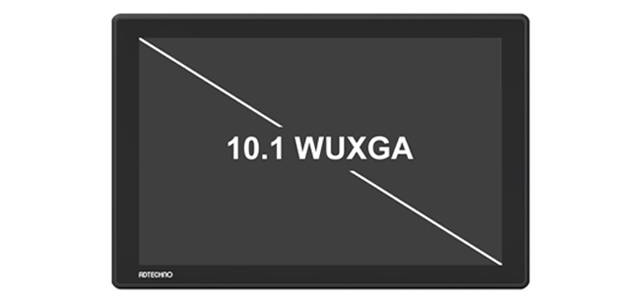

10.1 inch Full HD IPS panel
LCD1017MT uses a Full HD (1920x1200) 10.1 inch IPS panel with high brightness of 320 cd/m2, wide viewing angles of 170(H) / 170(V) degrees and high contrast of ratio of 1000:1.
Support for HDMI, VGA, Video input
Support for HDMI, VGA, Video (RCA) input. Maximum resolution is 4K UHD@30 for digital and 1920x1200 for VGA input. Video (RCA) inputs are also provided to ensure broad compatibility with various professional and consumer products.
HDCP compliant
LCD1017MT is compliant with HDCP and is capable of displaying HDCP protected media and can be connected to Blu-ray players and game consoles.*1
Adopts capacitive touch panel / Supports 10-point multi-touch
LCD1017MT uses a capacitive touch panel. Multi-touch operation of 10 points simultaneously supported as standard in Windows 10 is possible. It operates with a light touch operation and can be used comfortably.

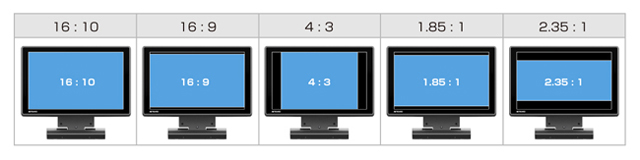

Configurable aspect ratio
Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

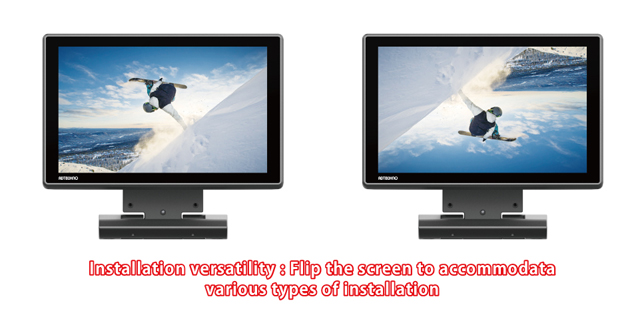

Pixel-to-pixel mode and Image flip function
When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution. The image on the screen can be flipped to adapt to various installations and applications.

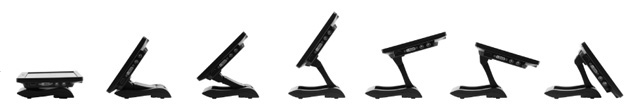

Stepless adjustable stand with low CG (center of gravity)
LCD1017MT features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

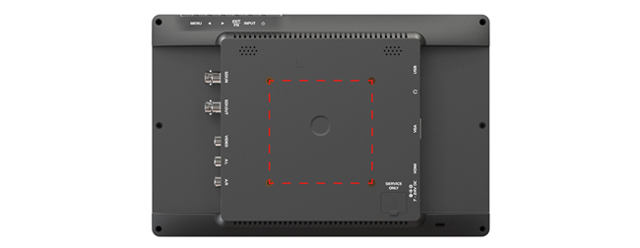

VESA mount FPMPMI 75×75mm compatible
LCD1017MT is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75x75mm mounts. Removal of the stand is required to use the VESA mount holes.

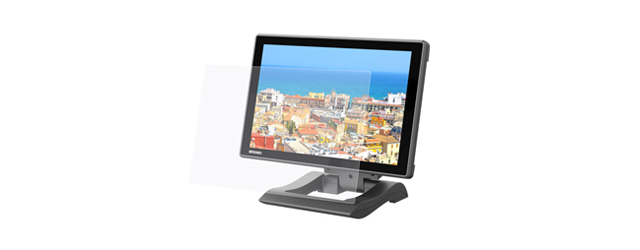

Non-glare protection film (optional)
Optional non-glare protection film to prevent reflection from fluorescent lamps and sunlight. It will also protect against scratches, fingerprint, and dust.
Specifications
| Model No. | LCD1017MT | |
|---|---|---|
| Color | Black | |
| Panel | Size | 10.1 inch 16:10 wide format IPS panel |
| Surface | Glare / Hard coating 6H | |
| Resolution | 1920 x 1200 | |
| Brightness | 320 cd/m2 | |
| Contrast ratio | 1000:1 | |
| View Angle | 170°(H) / 170°(V) | |
| Touch Panel | OS | Windows 10 / 8.1 / 8 / 7 |
| Type | PCAP 10point | |
| Control interface | USB Mini-B | |
| Input | HDMI x 1 / VGA x 1 / Video (RCA) x 1 / Audio (RCA) L・R x 1 | |
| Output | 3.5mm stereo mini jack | |
| Speaker | 1W x 2（L/R） | |
| VESA Standard | 75 x 75 mm | |
| Power | DC 7～24V (suggest 12V) | |
| Power Consumption | Max. 13W | |
| Operating Temperature | 0℃ ～ 50℃ | |
| Storage Temperature | -20 ～ 60℃ | |
| Operation humidity / Storage humidity | 10 ～ 80% (without condensation) | |
| size | 252（W） x 166（H） x 32.5（D）mm (not including stand) | |
| Weight | Approx. 630g (not including stand) | |
| Package Contents | AC adaptor / Remote Control/ Manual | |
| Warranty | 1-years | |
| Certification | FCC / CE / PSE / RoHS | |
※1) HDCP 2.2 is not supported
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
Supported Formats
| Format | Resolution | Frequency(Hz) |
|---|---|---|
| HDMI | 4K DCI(4096×2160) | 23.976 / 24 |
| 4K UHD(3840×2160) | 23.976 / 24 / 25 / 29.97 / 30 | |
| 1080p | 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 | |
| 1080i | 50 / 59.94 / 60 | |
| 720p | 25 / 29.97 / 30 / 50 / 59.94 / 60 | |
| 576p | 50 | |
| 576i | 50 | |
| 480p | 59.94 / 60 | |
| 480i | 59.94 / 60 | |
| VGA | 800×600 | 60 |
| 1024X768 | 60 | |
| 1280X1024 | 60 | |
| 1366×768 | 60 | |
| 1600X1200 | 60 | |
| 1920X1080 | 60 | |
| 1920X1200 | 60 | |
| Video | NTSC / PAL | |
