Touch Screen Monitor10.1" wide - LCD1015T/LCD1015TW
- Ultra slim design
- 10.1 inch 1280x800 IPS panel LCD Monitor
- HDMI/ DVI-D/ VGA/ Video inputs support
- 5-wire resistive touch panel model available
- Variable signal input support and aspect ratio feature
- Pixel-to-Pixel and Underscan display mode
- Function Key feature
- Stepless adjustable stand with a low gravity center design
- VESA (FPMPMI 75x75mm) hole support
Related Links
Introduction
LCD1015T is a 10.1-inch LED backlight LCD Monitor with 5-wire resistive touch panel, HDMI,DVI-D,VGA and Video inputs. LCD1015T supports higher video resolution input with up to 1080P/1920x1080 for both digital and analog input. Display aspect ratio also can be selected through OSD menu from 4:3, 16:9, 1.85:1 ad 2.35:1. LCD1015T adapts to a wide variety of applications including security, education, medical, digital signage, and FA.
Features

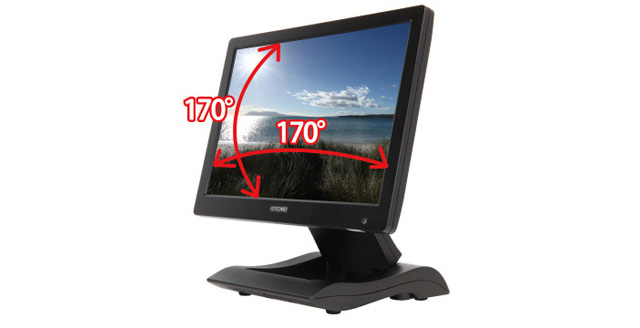

High resolution, wide view angle, IPS panel monitor
LCD1015T adapts 1280x800 high resolution with 170 (H) / 170 (V) degree wide view angle IPS panel. It exhibits minimal change in contrast and hue when viewed from off center, ideal for viewing a variety of content from any angle.

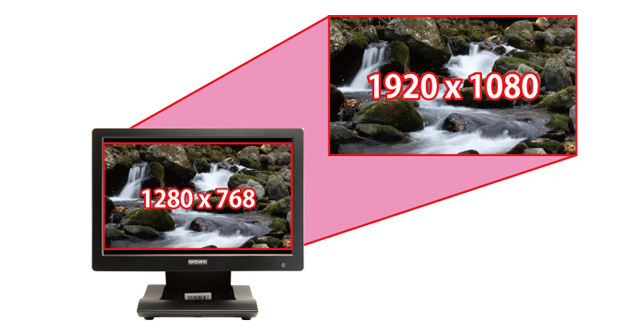

Variable signal input support and aspect ratio feature
LCD1015T supports higher video resolution input up to 1080P/1920x1080 for both digital and analog input.Display aspect ratio also can be selected through OSD menu from 4:3, 16:9, 1.85:1 ad 2.35:1.
Multi-input signal support
LCD1015T supports both digital and analog input signals with variable input interfaces, HDMI, DVI-D, VGA and Video.
HDCP (High-bandwidth Digital Content Protection) 1.4 compliant
LCD1015T is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.
5-wire resistive touch panel model available
Convenient touch-screen models, LCD1015T or LCD1015TW are used as your input device. The touch screen model utilize the USB port as the interface.
Function Key feature
Functions most frequently used can be assigned to the function key feature through OSD settings. Function key feature enables calling assigned function by long press A/V button.Functions of assignment include aspect ratio, image flip, pixel-to-pixel, zoom, underscan, and color mode.

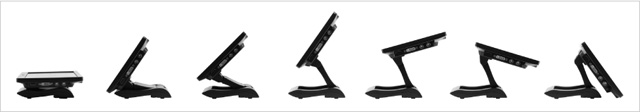

Stepless Adjustable Stand with A Low Center-Of-Gravity
LCD1015T has a stepless adjustable stand which enables bending and stretching to an ideal angle of your monitor installation. The rear side the stand also includes wall-mount hooks.
Specifications
| Model No. | LCD1015T | LCD1015TW | |
|---|---|---|---|

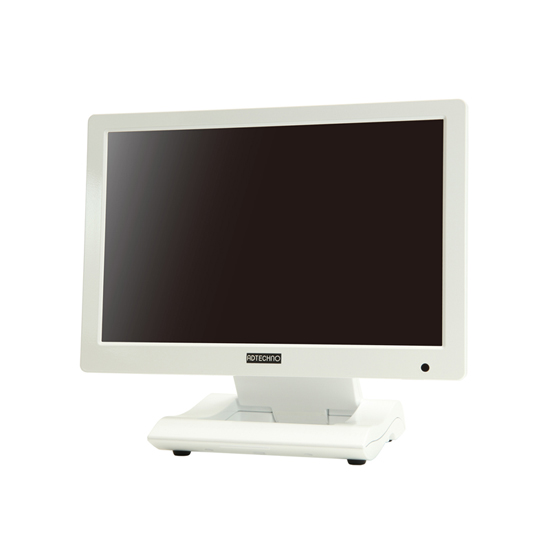

| Color | Black | White | |
| LCD Panel | Size | 10.1”, wide-screen | |
| Panel Type | IPS | ||
| Resolution | 1280 x 800 | ||
| Brightness | 350 cd/m2 | ||
| Contrast Ratio | 800:1 | ||
| View Angle | 170°(H) / 170°(V) | ||
| Touch Panel | Type | 5-wire resistive | |
| Control interface | USB Mini-B | ||
| Input | HDMI / DVI-D / VGA / Video / Audio (stereo) | ||
| Speaker | 2W x 1 (mono) | ||
| VESA (FPMPMI) standard | 75 x 75 mm | ||
| DPMS | Yes | ||
| Power | DC12V 1.2A | ||
| Power Consumption | 10W | ||
| Supported OS (Touch function) | Windows 10 / 8.1 / 8 / 7 | ||
| Operating Temperature | 0 ～ 50℃ | ||
| Storage Temperature | -20 to 60 degree | ||
| Dimensions | 245 (W) x 168 (H) x 29.5 (D) mm ※not including stand | ||
| Weight | 1000g（440g ※not including stand） | ||
| Package Content | Remote Controller, HDMI cable, VGA cable, Video cable, AC Adaptor, Manual | ||
| Certifications | FCC, CE, RoHS | ||
※Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here. Not responsible for typographical errors.
Supported Formats
| Format | Resolution | Frequency(Hz) | |
|---|---|---|---|
| HDMI | 1080p | 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 59.94 / 50 / 60Hz | |
| 1080i | 50 / 59.94 / 60Hz | ||
| 720p | 25 / 29.97 / 30 / 50 / 59.94 / 60Hz | ||
| 576p | 50Hz | ||
| 576i | 50Hz | ||
| 480p | 59.94 / 60Hz | ||
| 480i | 60Hz | ||
| DVI-D | 640×400 | 56Hz | |
| 720X400 | 70Hz | ||
| 640X480 | 60 / 72 / 75Hz | ||
| 800X600 | 56 / 60 / 70 / 72 / 75Hz | ||
| 1024X768 | 60 / 70 / 72 / 75Hz | ||
| 1152X864 | 75Hz | ||
| 1152X870 | 75Hz | ||
| 1152X900 | 66Hz | ||
| 1280X720 | 60 / 75Hz | ||
| 1280X800 | 60Hz | ||
| 1280X960 | 60Hz | ||
| 1280X1024 | 60 / 70 / 75Hz | ||
| 1600X1200 | 60 / 70Hz | ||
| 1920X1080 | 60Hz | ||
| VGA | 640×400 | 56Hz | |
| 720X400 | 70 / 85Hz | ||
| 640X480 | 60 / 66 / 72 / 75 / 85Hz | ||
| 800X600 | 56 / 60 / 70 / 72 / 75Hz | ||
| 1024X768 | 60 / 70 / 75Hz | ||
| 1152X864 | 75Hz | ||
| 1152X870 | 75Hz | ||
| 1152X900 | 66Hz | ||
| 1280X720 | 60Hz | ||
| 1280X768 | 60 / 70 / 75Hz | ||
| 1280X800 | 60Hz | ||
| 1280X960 | 60Hz | ||
| 1280X1024 | 60 / 70 / 75 / 85Hz | ||
| 1600X1200 | 60 / 65 / 70 / 85 Hz | ||
| 1920X1080 | 60Hz | ||
| Video | NTSC / PAL | ||
