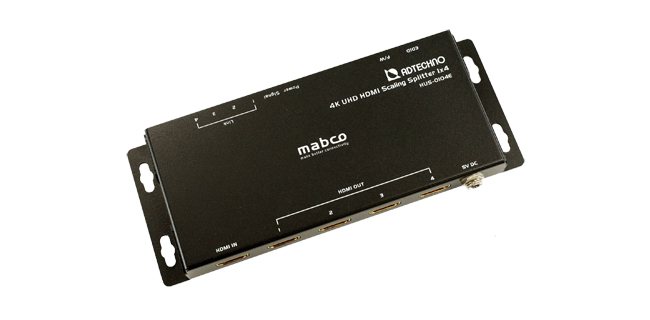

The HUS-0104E splitter is able to automatically downscale and convert HDCP revision according to EDID and HDCP of connected display equipment.

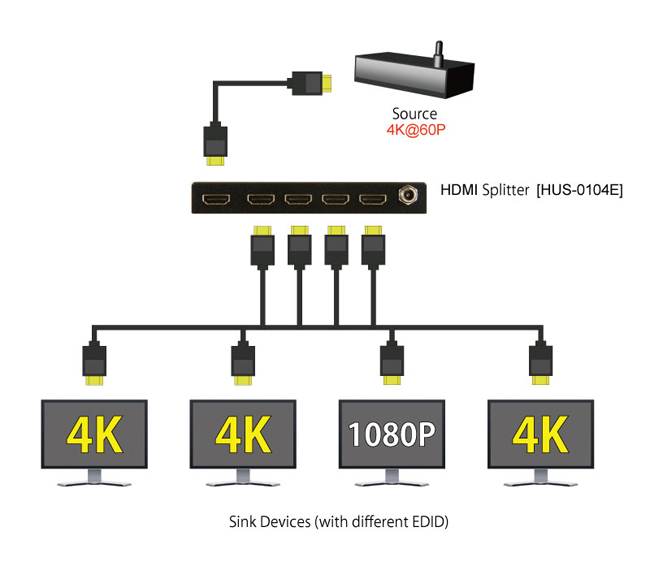

The HUS-0104E supports maximum 4K@60 4:4:4 (18Gbps) input. The splitter is able to output to displays with different specifications as “4K@60 4:4:4 (18Gbps)/HDCP2.2” and “1080p@60/HDCP1.4” at the same time by automatically converting the format according to each attached display equipment.
It is able to output at each displays optimal resolution even if displays with different specifications as 4K (HDCP2.2) and full HD (HDCP1.4) are connected. Premium Ultra HD content with HDR (High Dynamic Range), supporting both xvYCC (x.v.Color) and Deep Color as well as up to 7.1ch surround sound is also supported. Automatic EDID analysis mode and EDID emulation are also supported.
6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1 can be selected by DIP switch providing a versatile range of settings and preventing display losses due to cable disconnection or power loss.
The HUS-0104E also features a screw-lock DC connector, preventing accidental disconnections especially from heavy sound vibrations. Cascade connection is supported up to 2 levels with a maximum limit of 16 sink devices*1. By enabling output to displays with different specifications (4K and Full HD etc.) at each displays highest resolution this 4K HDMI splitter with automatic downscaling can be utilized at exhibitions, events and for advertisement.
Delivers 4K Ultra HD videos (3840x2160) at up to 60 frames per second from a wide range of 4K formats such as 4K/60p/4:2:2/36bit, 4K/60p/4:4:4/24bit, 4K/24p (30p)/4:4:4/36bit.
Supports premium 4K video contents requiring HDCP 2.2. Also backward compatible with HDCP 1.4 protected media contents.

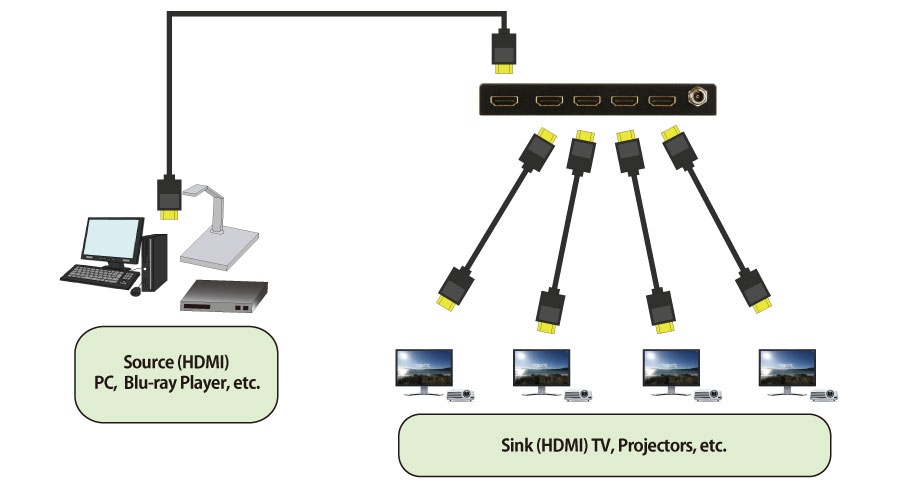

When connecting a 4K@60 4:4:4 (18Gbps) source to display equipment with different resolution and HDCP versions as “4K@60 4:4:4 (18Gbps)/HDCP2.2” or “1080p@60/HDCP1.4” the splitter will automatically adjust the output and display the content at each displays' highest resolution.

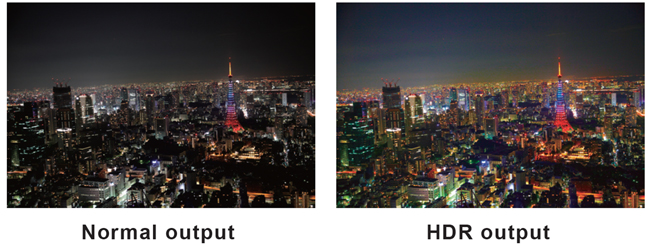

Supports HDR 4K videos to display finer details with a higher contrast ratio.
Wide color gamut due to xvYCC (x.v.Color), higher video signal processing due to Deep color and up to 7.1ch surround sound are supported.
6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1 can be selected by DIP switch providing a versatile range of settings and preventing display losses due to cable disconnection or power loss.
Screw-lock type DC connector plug provides a tight, secure connection preventing power loss resulting from accidental disconnections.
Metal brackets to fix splitter on wall or ground are included.

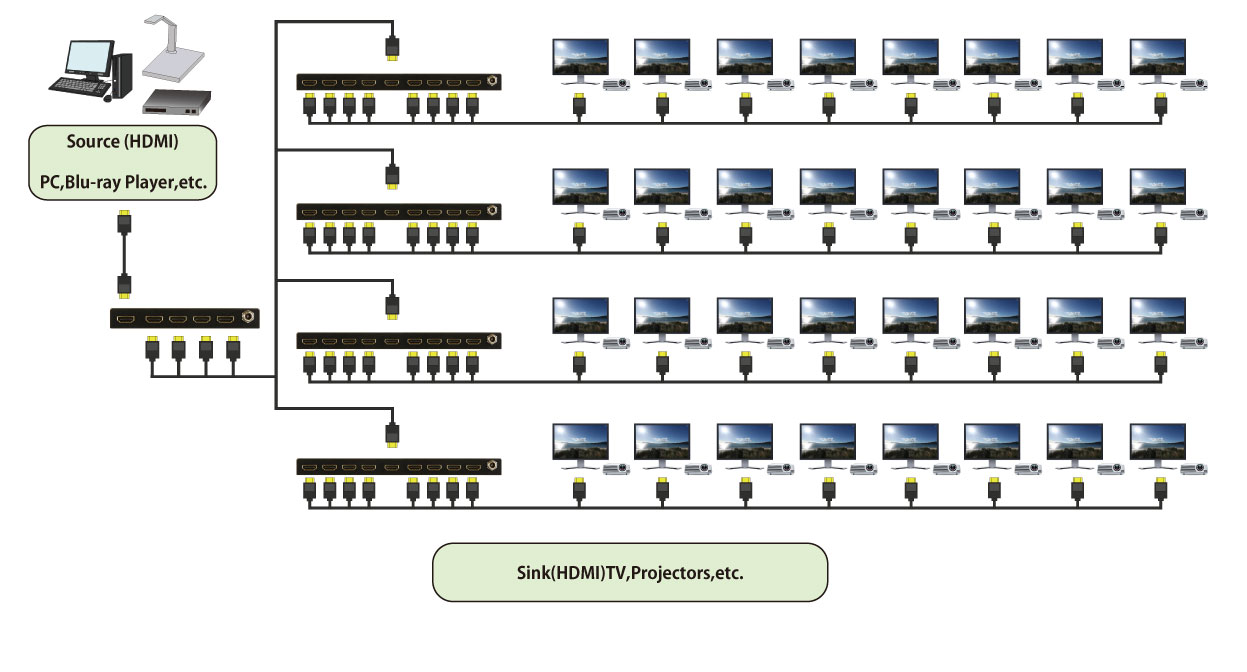

Cascade connection is supported up to 2 levels with a maximum limit of 32 sink devices when using with HUS-0108E.*4) Splitter can be utilized with great effect during exhibitions, events or at superstores.
* When distributing 4K @ 60 video, connect the HDMI cable from the source to the sink so that the length is 10 m or less. It has been verified with our handling HDMI cable.
Model No. | HUS-0104E | |
---|---|---|
HDM | Ver.2.0a | |
HDCP | 2.2, 1.4 compliant | |
Supported Video Format | 480i/480p/720p/1080i/1080p60/1080p60 3D(*2 /4K UHD@30(*2 /4K UHD@60(*2 /4K DCI@60(*2 4K UHD@60 and 4K DCI@60 at YPbPr 4:4:4 24bit and YPbPr 4:2:2 36bit color depth 4K UHD@60 and 4K DCI@60 HDR at YPbPr 4:2:0 30bit color depth |
|
Suppoeted VESA (PC) Resolution(*3 | SVGA (800*600), XGA (1024*768), WXGA (1280*768, 1280*800), FWXGA (1360*768, 1366*768), SXGA (1280*1024), WXGA+ (1440*900), WSXGA+ (1680*1050), Full HD (1920*1080), WUXGA (1920*1200) | |
Bandwidth | 18Gbps | |
Transfer Rate | 600MHz | |
Max. connections (HDMI sink devices) | 32*4) *using with HUS-0108E | |
EDID | 6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1 | |
Input | HDMI x 1 | |
Output | HDMI x 4 | |
HDMI | Type A | |
Dimensions | 150(W) x 69(D) x 18.1(H) mm | |
Weight | 267g approx. | |
Power | DC 5V 4A | |
Power Consumption | 3W Max. | |
Operating/Storage Temperature | 0℃~40℃ / -20℃~60℃ | |
Operating Humidity | 20%~90% *no condensation | |
Package Contents | HUS-0104E, AC Adaptor, Mounting Bracket x 2, Screw x 4, Manaul | |
Certification | FCC/CE/RoHS |
*1) Format conversion by automatic recognition is only supported for 4K and 1080p.
*2) Display is not guaranteed on all HDMI sink devices.
*3) Not supported when outputting from PC.
*4) Max. number of connecting devices with HDCP protected signals is up to 32 subject to HDCP 2.x specification
※ARC and CEC are not supported.
※The following functions are not supported.
1. 4K2K @ 60 Downscaling from 4:2:2 to 1080P.
2. Scaling from 4K2K @ 60 4:2:2 to 4K2K @ 60 4:2:0.
3. Conversion of frame rate.
4. 4K HDR data content can be output, but when downscaling to 1080P, HDR data cannot be reproduced 100%.
※HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※X.v.Color is a trademark or registered trademark of Sony Corporation.
※Operation with all devices is not guaranteed.
※Specifications are subject to change without notice for improvement.
