2-Way HDMI2.0a splitter with scaling functionHUS-0102E

HUS-0102E
  • 4K@60 4:4:4 18Gbps
  • 2-way HDMI splitter
  • Downscaling and HDCP revision conversion
  • HDR (High Dynamic Range)
  • xvYCC (x.v.Color) and Deep Color
  • Automatic EDID analysis and emulation
  • Screw-lock DC connector
  • Brackets to fix splitter on wall or ground

Related Links

Introduction

The HUS-0102E splitter is able to automatically downscale and convert HDCP revision according to EDID and HDCP of connected display equipment.

The HUS-0102E supports maximum 4K@60 4:4:4 (18Gbps) input. The splitter is able to output to displays with different specifications as “4K@60 4:4:4 (18Gbps)/HDCP2.2” and “1080p@60/HDCP1.4” at the same time by automatically converting the format according to each attached display equipment.

It is able to output at each displays optimal resolution even if displays with different specifications as 4K (HDCP2.2) and full HD (HDCP1.4) are connected. Premium Ultra HD content with HDR (High Dynamic Range), supporting both xvYCC (x.v.Color) and Deep Color as well as up to 7.1ch surround sound is also supported. Automatic EDID analysis mode and EDID emulation are also supported.

6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1 can be selected by DIP switch providing a versatile range of settings and preventing display losses due to cable disconnection or power loss.

The HUS-0102E also features a screw-lock DC connector, preventing accidental disconnections especially from heavy sound vibrations. Cascade connection is supported up to 2 levels with a maximum limit of 16 sink devices (*1). By enabling output to displays with different specifications (4K and Full HD etc.) at each displays highest resolution this 4K HDMI splitter with automatic downscaling can be utilized at exhibitions, events and for advertisement.

Features

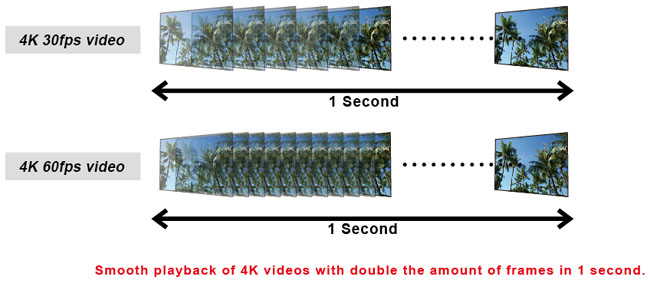

4K@60 4:4:4 18Gbps

Delivers 4K Ultra HD videos (3840x2160) at up to 60 frames per second from a wide range of 4K formats such as 4K/60p/4:2:2/36bit, 4K/60p/4:4:4/24bit, 4K/24p (30p)/4:4:4/36bit.

4K@60 4:4:4 18Gbps

HDCP 2.2 / 1.4

Supports premium 4K video contents requiring HDCP 2.2. Also backward compatible with HDCP 1.4 protected media contents.

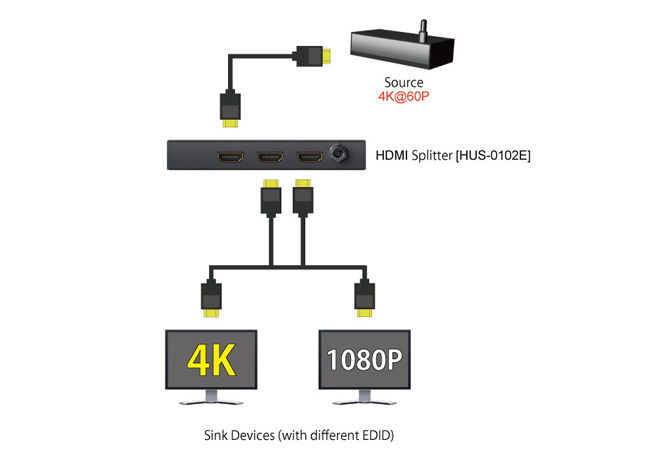

Downscaling and HDCP revision conversion

When connecting a 4K@60 4:4:4 (18Gbps) source to display equipment with different resolution and HDCP versions as “4K@60 4:4:4 (18Gbps)/HDCP2.2” or “1080p@60/HDCP1.4” the splitter will automatically adjust the output and display the content at each displays' highest resolution.

Downscaling and HDCP revision conversion

HDR (High Dynamic Range)

Supports HDR 4K videos to display finer details with a higher contrast ratio.

HDR (High Dynamic Range)

Supports xvYCC (x.v.Color) and Deep Color

Wide color gamut due to xvYCC (x.v.Color), higher video signal processing due to Deep color and up to 7.1ch surround sound are supported.

Automatic EDID analysis and emulation

6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1 can be selected by DIP switch providing a versatile range of settings and preventing display losses due to cable disconnection or power loss.

Automatic EDID analysis and emulation

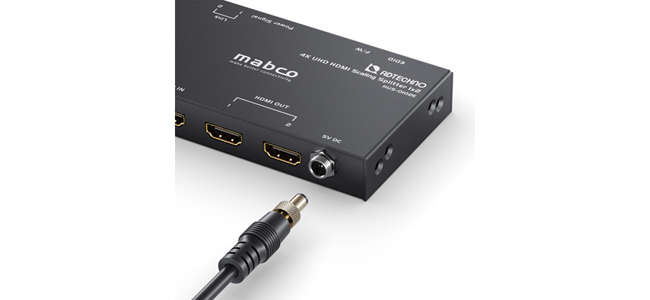

Screw-lock type DC connector

Screw-lock type DC connector plug provides a tight, secure connection preventing power loss resulting from accidental disconnections.

Screw-lock type DC connector

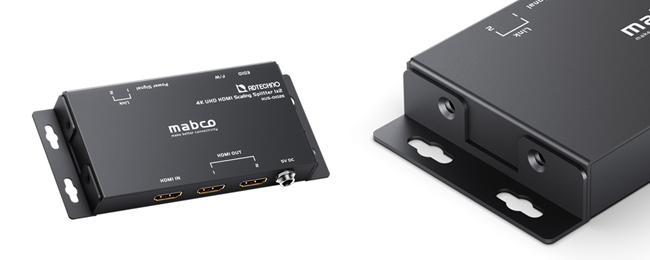

Brackets to fix splitter on wall or ground

Metal brackets to fix splitter on wall or ground are included.

Brackets to fix splitter on wall or ground

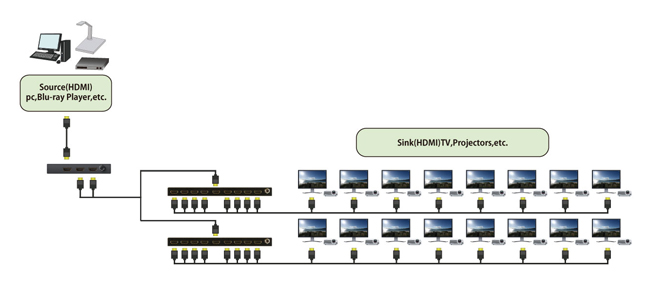

Cascade connection supported up to 2 levels

Cascade connection is supported up to 2 levels with a maximum limit of 16 sink devices when use with HUS-0108E. Splitter can be utilized with great effect during exhibitions, events or at superstores.

* When distributing 4K @ 60 video, connect the HDMI cable from the source to the sink so that the length is 10 m or less. It has been verified with our handling HDMI cable.

Cascade connection supported up to 2 levels

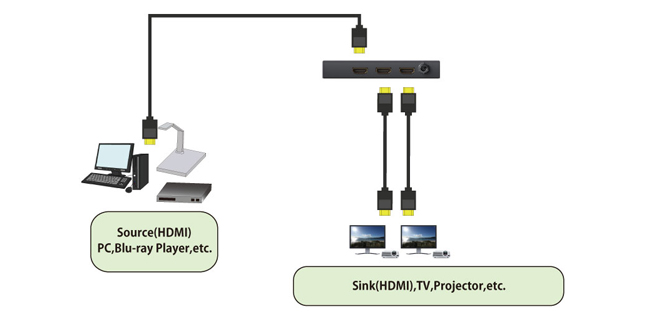

Connection Diagram

Connection Diagram

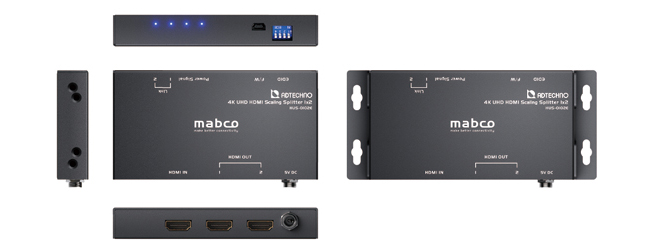

Appearance

Appearance

Specifications

Model No. HUS-0102E
HDM Ver.2.0a
HDCP 2.2, 1.4 compliant
Supported Video Format 480i/480p/720p/1080i/1080p60/1080p60 3D(*2 /4K UHD@30(*2 /4K UHD@60(*2 /4K DCI@60(*2
4K UHD@60 and 4K DCI@60 at YPbPr 4:4:4 24bit and YPbPr 4:2:2 36bit color depth
4K UHD@60 and 4K DCI@60 HDR at YPbPr 4:2:0 30bit color depth
Suppoeted VESA (PC) Resolution(*3 SVGA (800*600), XGA (1024*768), WXGA (1280*768, 1280*800), FWXGA (1360*768, 1366*768), SXGA (1280*1024), WXGA+ (1440*900), WSXGA+ (1680*1050), Full HD (1920*1080), WUXGA (1920*1200)
Bandwidth 18Gbps
Transfer Rate 600MHz
Max. connections (HDMI sink devices) 16*Using with HUS-0108E
EDID 6 preset EDID configurations, automatic EDID analysis mode and EDID acquisition from Port 1
Input HDMI x 1
Output HDMI x 2
HDMI Type A
Dimensions 120 (W) x 64 (D) x 18.1 (H) mm
Weight 210g approx.
Power DC 5V 2A
Power Consumption 2W Max.
Operating/Storage Temperature 0℃~40℃ / -20℃~60℃
Operating Humidity 20%~90% *no condensation
Package Contents HUS-0102E, AC Adaptor, Mounting Bracket x 2, Screw x 4, Manaul
Certification FCC/CE/RoHS

*1) Format conversion by automatic recognition is only supported for 4K and 1080p.
*2) Display is not guaranteed on all HDMI sink devices.
*3) Not supported when outputting from PC.
※ARC and CEC are not supported.
※The following functions are not supported.
 1. 4K2K @ 60 Downscaling from 4:2:2 to 1080P.
 2. Scaling from 4K2K @ 60 4:2:2 to 4K2K @ 60 4:2:0.
 3. Conversion of frame rate.
 4. 4K HDR data content can be output, but when downscaling to 1080P, HDR data cannot be reproduced 100%.
※HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※X.v.Color is a trademark or registered trademark of Sony Corporation.
※Operation with all devices is not guaranteed.
※Specifications are subject to change without notice for improvement.
