SDI Monitor28" wide - UH2800S
- 44K Ultra HD LCD Panel
- Multi format SDI （12G / 6G / 3G / HD-SDI）support
- 2 types of Quad 3G-SDI（2SI / SQD）support
- 4 HDMI Input（HDMI 2.0 x 1 / HDMI 1.4 x 3）
- Tally function( D-sub 9 pin)
- VESA 100x100 support
- 4pin XLR power input support
- External battery support（V mount on back side ）
- Carry box available (Optional）
Related Links
Introduction
UH2800S features a 28-inch native 4K Ultra HD (3840x2160) resolution LCD panel with 12G/6G/3G-SDI support. 4K output is supported by single 12G and 6G-SDI as well as Quad 3G-SDI. 2SI and SQD are both supported for Quad 3G-SDI. This model also supports 1x HDMI 2.0 port for Ultra HD content at 60Hz as well as 3x HDMI 1.4 ports for Ultra HD content at 30hz. UH2800S is compliant with HDCP.

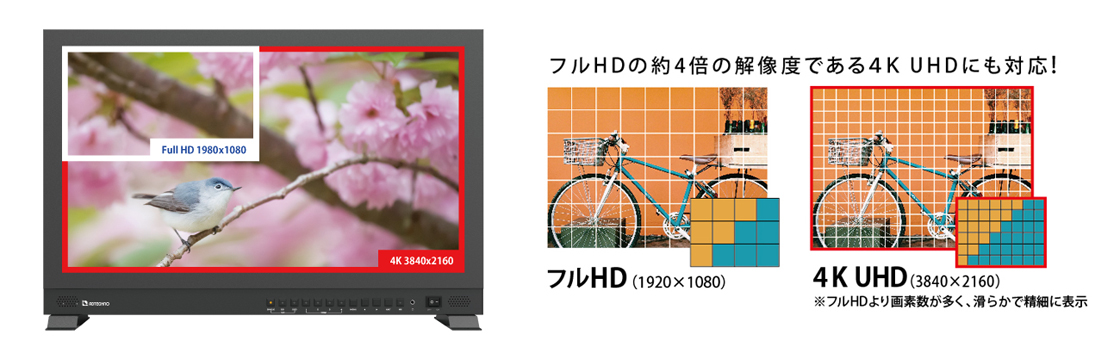

Compared to conventional HD LCD panels the 4K LCD panel has a 4 times higher display resolution. The 4K UHD panel allows for playback of 4 Full HD contents in 4-way split screen mode. Vertical and horizontal 2-way split screen, PIP and Safety Marker functions to assist creators are also supported.
The included self-standing floor stand includes screw holes for additional stability at any location. UH2800S supports power input from XLR connector. Support for V-Mount battery plates is also included through mount holes on the back.
This 4K industrial LCD monitor adapts to a wide range of use including broadcasting, laboratory, medical, promotional and any other scene where 4K UHD is needed.
Features
28″native 4K UHD IPS panel
The 4K panel has high brightness (300cd/m2), wide viewing angle (170 deg/160 deg) and high contrast (1000:1)
28″native 4K UHD IPS panel

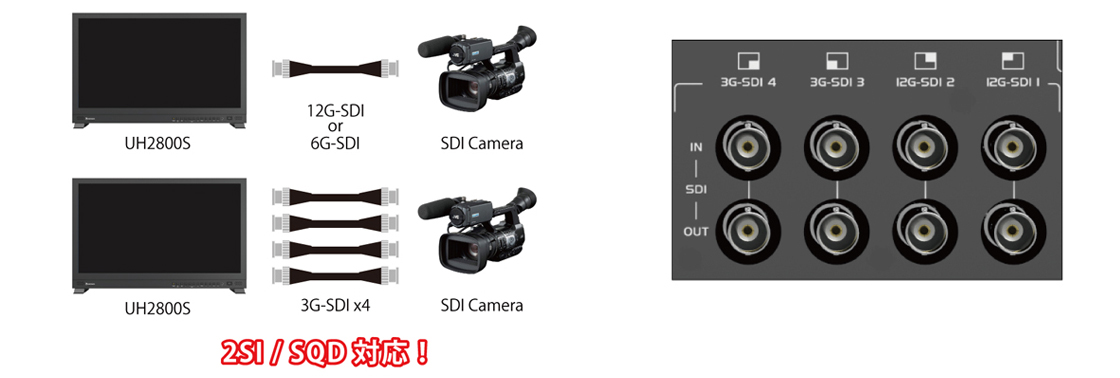

Support for 12G/6G/3G/HD/SDI and 2SI/SQD Quad 3G-SDI Supports 4K using single 12G or 6G-SDI as well as Quad 3G-SD 2SI and SQD are supported for Quad 3G-SDI SDI OUT with pass through from SDI IN.
4x HDMI ports (1x HDMI 2.0 / 3x HDMI 1.4)
1x HDMI 2.0 port for 4K@60 and 3x HDMI 1.4 ports for 4K@30 with support for HDCP 1.4 for playback of protected contents like Blu-ray*1)

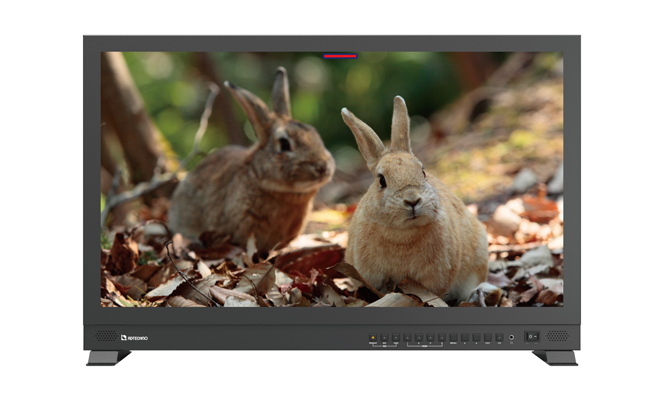

Tally function (D-sub 9 pin)
A tally function that lights up red or green on the upper side of the monitor screen is provided to indicate which monitor image is being recorded (or being broadcast) when there are multiple images or shooting equipment.

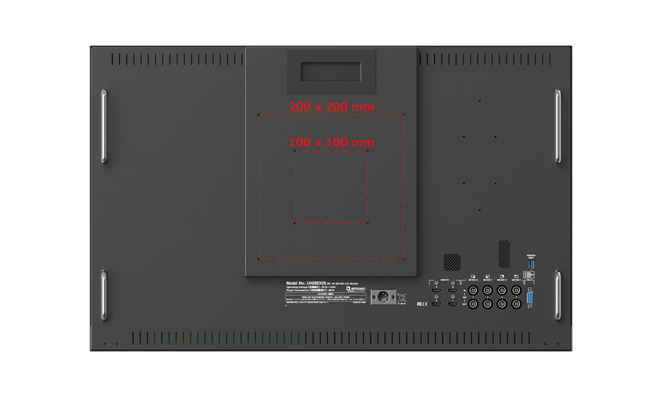

Equipped with VESA 100x100mm / 200x200mm screw holes
Equipped with VESA100x100mm and 200x200mm screw holes on the back, it can be installed on a tripod or arm or mounted on a wall.

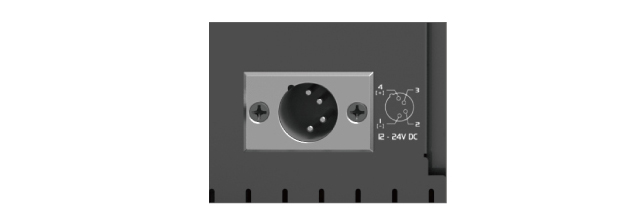

4-pin XLR power input
The power supply corresponds to the 4-pin XLR power input from the included AC adapter.

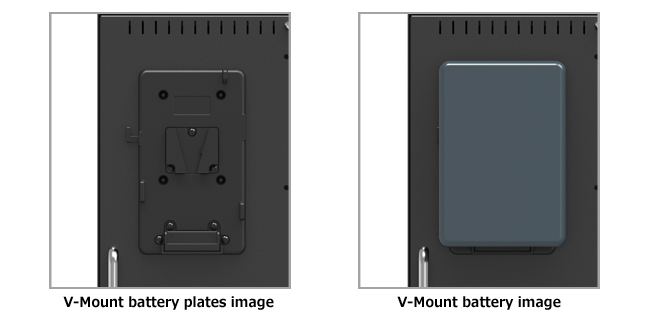

Support for external batteries (mounting holes for V-Mount brackets)
Mounting holes for V-Mount battery plates on the back side to allow usage outdoors.

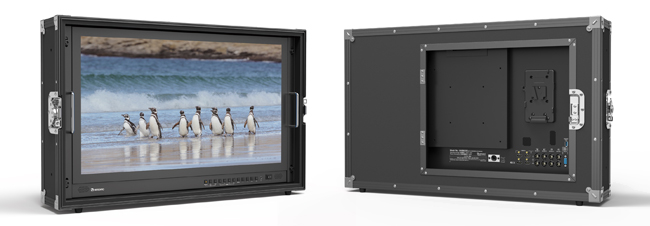

Dedicated carry box (optional)
A dedicated carry box is available as an option for each product. The aluminum carry box is lightweight and sturdy, protecting the product from damage in hard locations. In addition, the carry box opens and closes with the monitor mounted on the front and back, allowing you to quickly connect and display cables without removing them from the carry box. In the field where speed is always required, the time can be used more effectively by making the equipment setting more efficient.
Product specifications
| Model No. | UH2800S | |
|---|---|---|
| Color | Black | |
| Panel | Size | 28" 16:9 Wide format IPS Panel |
| Resolution | 3840x2160 | |
| Response Time | 8ms | |
| Brightness | 300 cd/m2 | |
| Contrast ratio | 1000:1 | |
| View Angle | 170°(H) / 160°(V) | |
| Input | 12G-SDI x 2 / 3G-SDI x 2 /HDMI 2.0(HDCP1.4) x 1 HDMI 1.4(HDCP1.4) x 3 | |
| Output | 12G-SDI x 2 / 3G-SDI x 2 / 3.5mm Stereo headphone jac | |
| Other I/O | mini D-sub 9 pin (for Tally) | |
| Speaker | 2W x 2 (L&R) | |
| External battery | V-Mount plate mounting holes | |
| Stand | Self-standing floor stand | |
| Power | 4 pin XLR | |
| Power Consumption | Max.62W | |
| Operating Temperature | 0 to 40 degrees | |
| Storage Temperature | -20 to 60 degrees | |
| size | 670(W) x 425(H) x 72(D) mm(not including stand) | |
| Weight | approx. 10700g (not including stand) | |
| Accessories | AC adaptor / Manual | |
| Certification | FCC / CE / PSE / RoHS | |
*1 HDCP 2.2 is not supported
※4Pin XLR cable is not included
※Running time is approx..3.2hr using ITX V mount type lithium ion battery DUO-C95 (theoretical value) HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
