SDI Monitor15.6" wide - SH1560S

  • 15.6 inch Full HD 1920x1080 panel LCD Monitor
  • 3G-SDI Input with a loop out port
  • Analog and Digital inputs support (HDMI/DVI-D/VGA/S-Video/Video)
  • Picture-In-Picture (PinP) and Picture-By-Picture (PbyP) fuctions
  • 24/7 Long Time Operation with a rugged metal housing design
  • VESA (FPMPMI) 100x100mm support

Related Links

Introduction

SH1560S features a 15.6 inch 1920x1080 Full HD LED panel with wide view angles of 120° vertical and 140° horizontal, a contrast ratio of 600:1, and with 3G-SDI, HDMI, DVI-D, VGA, S-Video, Video (BNC) input. 3G-SDI supports SMPTE 424M/SMPTE 292M/SMPTE 259M with 3G-SDI pass-through capability.

SH1560S has PinP (Picture-In-Picture) and PbyP (Picture-By-Picture) functions that enables to display 2 different analog and digital input video signals with a full screen at the same time as one other input signal displayed inset windows or different input signals with separate windows.

Designed for 24/7 continuous operation with a rugged metal housing, ideal for a wide range of applications: inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conference, surveillance, digital signage or as an OEM part integrated into another product.

Features

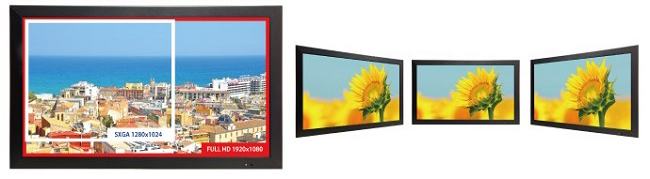

High resolution, wide view angle, high contrast LCD panel monitor

SH1560S adopts Full HD 1920x1080 high resolution with 140 (H) / 120 (V) degree wide view angle LCD panel.

High resolution, wide view angle, high contrast LCD panel monitor

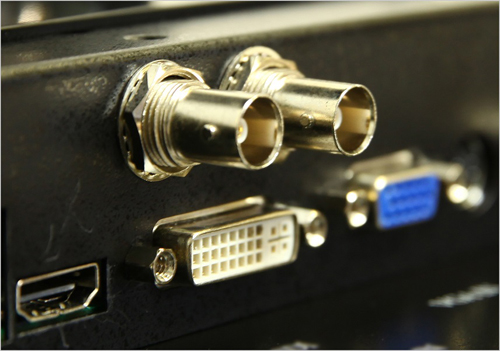

Supports 3G-SDI input

SMPTE standard 3G-SDI input is fully supported by the SH1560S. Uncompressed digital HD video and audio can be delivered over long distances via a single coaxial cable. The SH1560S also includes SDI pass-through function, outputting the SDI input signal via the SDI output port for chain connections or connecting to other display devices.

Supports 3G-SDI input

3G-SDI Level A/B support

3G-SDI interface supports both SDI level A and B format

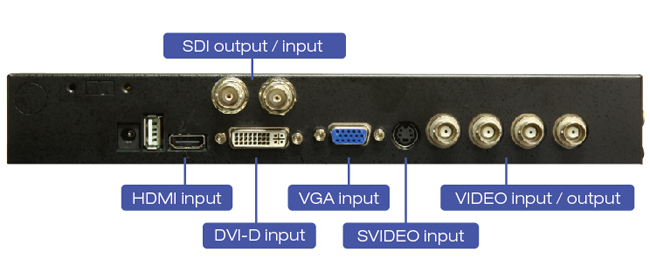

Multi-input signal support

SH1560S supports both digital and analog input signals with variable input interfaces, HDMI, DVI-D, VGA, S-Video and Video.

Multi-input signal support

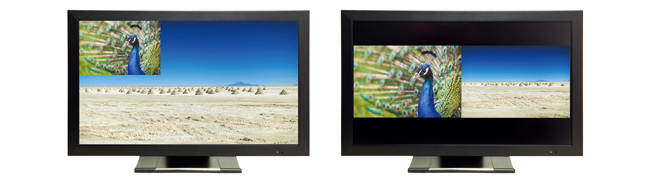

PinP (Picture-In-Picture) and PbyP (Picture-By-Picture) function

SH1560S has Picture-In-Picture (PinP) and Picture-By-Picture (PbyP) functions that enables to display 2 different analog and digital input video signals with a full screen at the same time as one other input signal displayed inset windows or different input signals with separate windows.

PinP (Picture-In-Picture) and PbyP (Picture-By-Picture) function

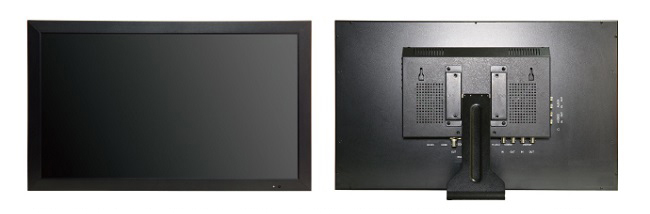

24/7 long time operation with a rugged metal housing designn

SH1560S is designed for 24/7 continuous operation with a rugged metal housing, ideal for a wide range of applications: inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conference, surveillance, digital signage or as an OEM part integrated into another product.

24/7 long time operation with a rugged metal housing designn

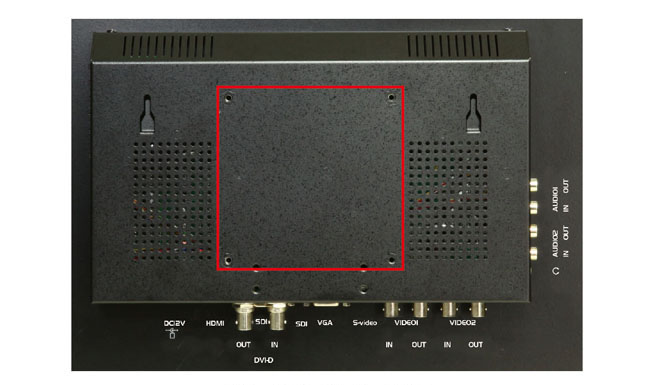

VESA (FPMPMI) 100x100 support

SH1560S comes with a leaning typed stand attached to the VESA (FPMPMI) 100x100mm standard screw holes. An optional self-standing monitor stand [Model No.: SH_STD] is also available.

Compatible with VESA standard 100x100mm for stands and wall hanging

Product specifications

Model No. SH1560S
Panel Size 15.6”
Aspect ratio 16:9
Resolution 1920 x 1080
Brightness (cd/m2) 300
Contrast ratio 600:1
Viewing angle 140°/120°(H/V)
Power supply DC12V
Input 3G-SDI (BNC) / HDMI / DVI-D / VGA / Video(BNC)x 2 / S-Video / Audio(RCA)x 2 / Audio(3.5mm)x 1
Output 3G-SDI (BNC) / Video(BNC)x 2 / Audio(RCA)x 2
Speaker 2 Watt(mono)
Power consumption 18W (Max)
Operating temperature 0℃~40℃
VESA (FPMPMI) standard 100 x 100 mm
External dimensions(WxHxD) 382 x 230 x 47 mm *incl. stand
Weight about 3.5kg
Included items VGA Cable / Audio (RCA) red and white Cable / AC Adaptor/Remote Controller / Manual
Certification standard FCC/ CE/ RoHS

※Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here. Not responsible for typographical errors
※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Compatibility with ALL devices not guaranteed.
