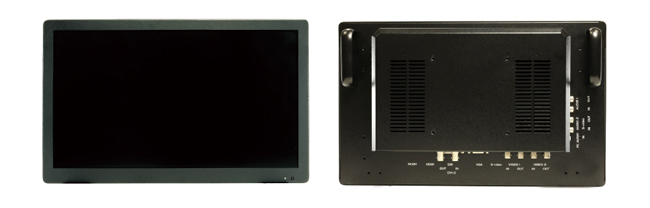

21.5" 3G-SDI LCD Monitor21.5" wide - SG2150S

　SG2150S adopts LED liquid crystal panel with full HD resolution (1920x1080), wide viewing angle (horizontal 178°/vertical 178°) and high contrast (1000:1). It is a professional multimedia display with SDI/HDMI/DVI-D/VGA/S-video/composite video (BNC) input terminals.

　SDI signal supports SMPTE 424M/SMPTE 292M/SMPTE 259M format, and different mapping methods for Level A and B. The SDI output can pass through the input SDI video signal, so daisy chaining between monitors is possible. It supports video signal input up to 1080p60 by HDMI and up to 1920 x 1080 by VGA. The HDMI interface also supports HDCP (High-bandwidth Digital Content Protection)^※1

　SG2150S features the P-in-P (picture in picture) function and P-by-P (picture by picture) function to meet the needs for the simultaneous display of two different (digital / analog) video signals on a screen.^※2

　SG2150S features rugged metal housings with toughness designs that can withstand a long period of use with 24/7 operation. They can also be integrated into industrial equipment. All SG Series monitors have a carrying handle for easy carrying.

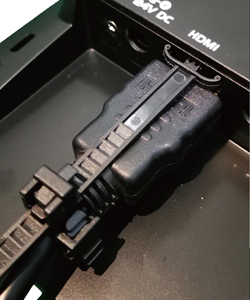

　There are dedicated insertion holes for cable clamp beside each interface of HDMI, S -video, composite video input/output (BNC), audio input/output (RCA / 3.5mm), and power supply. By fixing the cable clamp, you can prevent the cable from being accidentally dropped off or loosened.

　Optional upright stand [ Model number: SG_STD ] and AC adapter holder [ Model number: HLDR_001 ] for SG series are available. By using the dedicated upright stand, you can make the display stand on its own. The dedicated AC adapter holder is used to locate the AC adapter.

　SG2150S is a professional multimedia display can be used for broadcasting, meeting room, digital signage, exhibitions, educational facilities, showrooms, factory lines, application, etc.

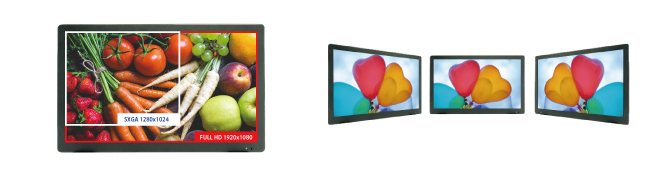

Full HD resolution

High resolution (1920x1080), wide viewing angle (horizontal 178°/vertical 178°) and high contrast (1000:1) full HD LCD panel.

3G-SDI Level A/B support

3G-SDI interface supports both SDI level A and B format

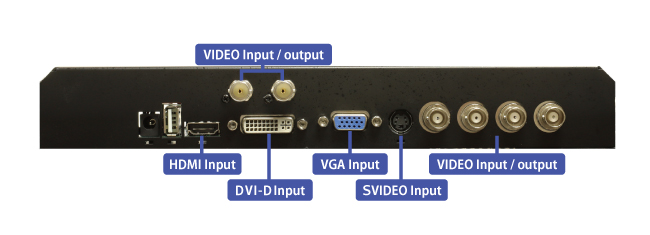

Supports both analog and digital signal inputs

Equipped with HDMI (HDCP compatible), DVI-D (HDCP compatible), mini D-Sub15 pin (VGA), S-video and composite video (BNC) interfaces, and supports both analog and digital inputs. SG1560S also supports HDCP (High-bandwidth Digital Content Protection) that displays content with copyright protection technology such as Blu-ray or game console contents.^※1

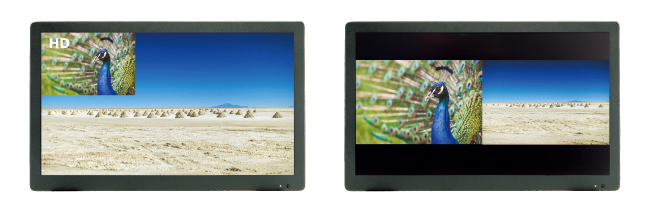

P-in-P (picture in picture) and P-by-P (picture by picture) support

P-by-P (picture by picture) function that divides the screen to two parts. Also, with the P-in-P function, you can change the position of the small window (select from the four corners) and size (select from large, medium, and small). This function can be used in various situations, such as displaying the surveillance camera and the computer screen on one display. ^※2

Solid metal housing and toughness design for 24/7 operation

Using a strong metal housing is suitable for embedding inside an industrial equipment. In addition, it is designed to withstand long-term use, and can be used for 24/7 operation.

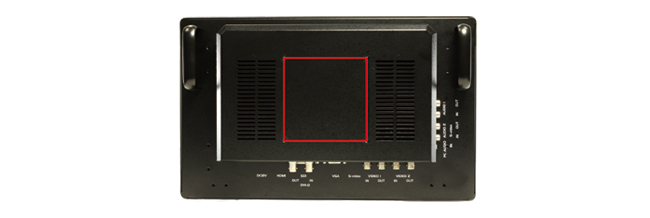

Compatible with VESA standard 100x100mm for stands and wall mounting

SG2150S has 100x100mm screw hole on the back of the mainunit. It fits with the commercially available VESA wall mounting

Carry Handle

SG2150S has carry handles that is convenient for carrying during the setup and installation.

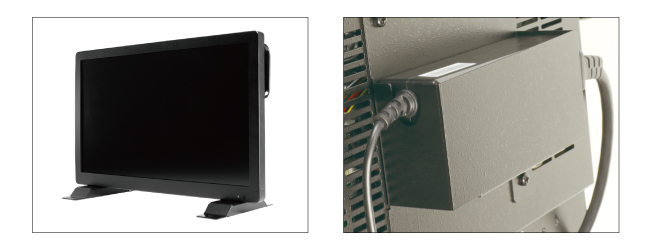

Optional upright stand [Model number: SG_STD] and AC adapter holder [Model number: HLDR_001]

Using a strong metal housing is suitable for embedding inside an industrial equipment. An upright stand exclusively for SG series monitor is available as an option. AC adapter holder attachable to the SG series by VESA 100x100 mm screw holes on the back is also available as an option. ^{※4 ※5}
