SDI Monitor10.1" wide - LCD1017S

  • Max 4K@30 input
  • Full HD IPS Panel
  • 6H hard protective panel
  • HDMI(HDCP support)/VGA / Video / Audio input
  • Cable clamp available
  • 3G-SDI Input and output(Level A/B support)
  • Adjustable stand with low center of gravity
  • VESA 75x75 support

Related Links

Introduction

 LCD1017S is a professional multimedia display featuring a 10.1 inch 1920x1200 Full HD IPS panel. High durability is achieved by using OCA (Optical clear adhesive) and 6H hard glass panel.

 It supports HDMI, VGA, Video (RCA) and audio inputs as well as a 3.5mm audio output. It is also capable of displaying HDCP protected media contents such as Blu-ray.※1)

 LCD1017S has 3G / HD / SD-SDI input / output terminals compliant with SMPTE standards. 3G-SDI supports two different mapping methods, Level A and B, and also has an SDI output terminal that passes through the input SDI, so daisy chaining between monitors is possible.

 Aspect ratio can be configured to [Full screen (16:10)], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu. Other functions include Pixel-to-pixel mode, under scan and image flip function to adapt to various installations and applications.

 It also features a stepless adjustable stand which enables tilting and adjusting to your desired angle. LCD1017S also includes holes that can be used with wall-mount hooks and is VESA mount FPMPMI 75×75mm compatible.

 We also provide an optional non-glare protective film to reduce reflection from fluorescent lamps and sunlight.

 The versatility of LCD1017S makes it ideal for use as a sub-monitor for servers, PCs, inspection at factory lines, educational institutes, exhibitions, showrooms, video conferences, digital signage, as an OEM part integrated into other equipment and home use.

Features

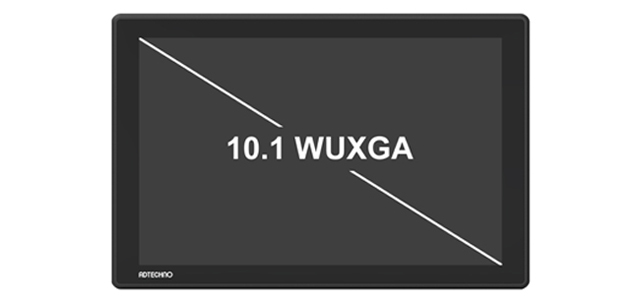

10.1 inch Full HD IPS panel

LCD1017S uses a Full HD (1920x1200) 10.1 inch IPS panel with high brightness of 350cd/m2, wide viewing angles of 170(H) / 170(V) degrees and high contrast of ratio of 1000:1.

Support for HDMI, VGA, Video input

Equipped with 3G-SDI input / output terminal (Level A / B compatible)

LCD1017S is equipped with 3G / HD / SD-SDI input / output terminals compliant with SMPTE standards. 3G-SDI supports Level A and B mapping methods. It also has an SDI output terminal to pass through the input SDI, so daisy chaining between monitors is possible.

Equipped with 3G-SDI input / output terminal (Level A / B compatible)

Support for HDMI, VGA, Video input

Support for HDMI, VGA, Video (RCA) input. Maximum resolution is 4K UHD@30 for digital and 1920x1200 for VGA input. Video (RCA) inputs are also provided to ensure broad compatibility with various professional and consumer products.

Support for HDMI, VGA, Video input

HDCP compliant

LCD1017S is compliant with HDCP and is capable of displaying HDCP protected media and can be connected to Blu-ray players and game consoles.*1

Configurable aspect ratio

Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

Configurable aspect ratio

Pixel-to-pixel mode and Image flip function

When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution. The image on the screen can be flipped to adapt to various installations and applications.

Pixel-to-pixel mode and Image flip function

Stepless adjustable stand with low CG (center of gravity)

LCD1017S features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

Stepless adjustable stand with low CG (center of gravity)

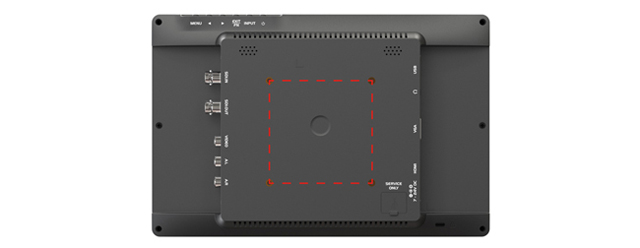

VESA mount FPMPMI 75×75mm compatible

LCD1017S is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75x75mm mounts. Removal of the stand is required to use the VESA mount holes.

VESA mount FPMPMI 75×75mm compatible

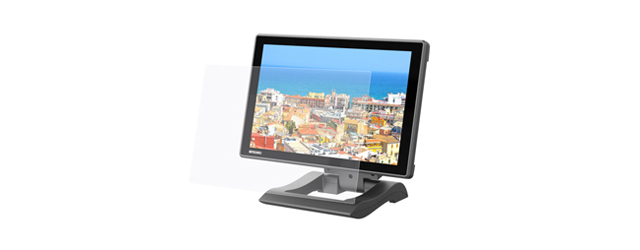

Non-glare protection film (optional)

Non-glare protection film (optional)

Optional non-glare protection film to prevent reflection from fluorescent lamps and sunlight. It will also protect against scratches, fingerprint, and dust.

Specifications

Model No. LCD1017S
Color Black
Panel Size 10.1 inch 16:10 wide format IPS panel
Surface Glare / Hard coating 6H
Resolution 1920 x 1200
Brightness 320 cd/m2
Contrast ratio 1000:1
View Angle 170°(H) / 170°(V)
Input 3G-SDI x 1 / HDMI x 1 / VGA x 1 / Video (RCA) x 1 / Audio (RCA) L.R x 1
Output 3G-SDI x 1 / 3.5mm stereo mini jack
Speaker 1W x 2(L/R)
VESA Standard 75 x 75 mm
Power DC 7~24V (suggest 12V)
Power Consumption Max. 13W
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20 ~ 60℃
Operation humidity / Storage humidity 10 ~ 80% (without condensation)
size 252(W) x 166(H) x 32.5(D)mm (not including stand)
Weight Approx. 630g (not including stand)
Package Contents AC adaptor / Remote Control/ Manual
Warranty 1-year
Certification FCC / CE / PSE / RoHS

※1) HDCP 2.2 is not supported
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
