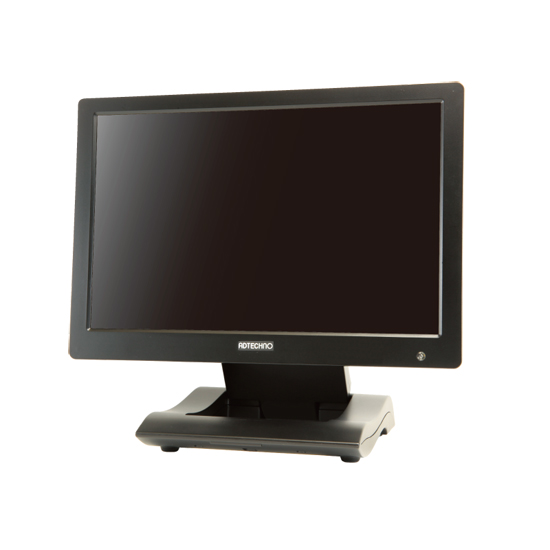

LCD1015S is a 10.1-inch LED backlight LCD Monitor with 3G-SDI (input and output),HDMI,DVI-D,VGA and Video inputs. LCD1015S supports higher video resolution input with up to 1080P/1920x1080 for both digital and analog input. Display aspect ratio also can be selected through OSD menu from 4:3, 16:9, 1.85:1 ad 2.35:1. LCD1015S adapts to a wide variety of applications including security, education, medical, digital signage, and FA.

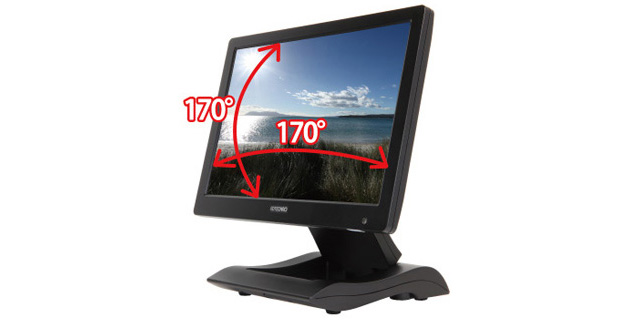

LCD1015S adapts 1280x800 high resolution with 170 (H) / 170 (V) degree wide view angle IPS panel. It exhibits minimal change in contrast and hue when viewed from off center, ideal for viewing a variety of content from any angle.

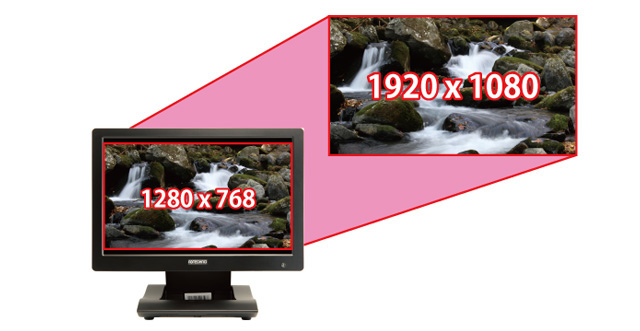

LCD1015S supports higher video resolution input up to 1080P/1920x1080 for both digital and analog input.Display aspect ratio also can be selected through OSD menu from 4:3, 16:9, 1.85:1 ad 2.35:1.
SMPTE standard 3G-SDI input is fully supported by the LCD1015S. Uncompressed digital HD video and audio can be delivered over long distances via a single coaxial cable. The LCD1015S also includes SDI pass-through function, outputting the SDI input signal via the SDI output port for chain connections or connecting to other display devices.
LCD1015S supports both digital and analog input signals with variable input interfaces, HDMI, DVI-D, VGA and Video.
LCD1015S is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.
Functions most frequently used can be assigned to the function key feature through OSD settings. Function key feature enables calling assigned function by long press A/V button.Functions of assignment include aspect ratio, image flip, pixel-to-pixel, zoom, underscan, and color mode.

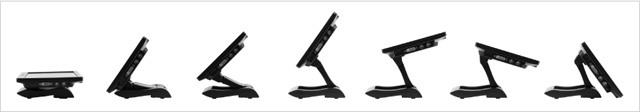

LCD1015S has a stepless adjustable stand which enables bending and stretching to an ideal angle of your monitor installation. The rear side the stand also includes wall-mount hooks.
Model No. | LCD1015S | ||
---|---|---|---|
Color | Black | ||
LCD Panel | Size | 10.1”, wide-screen | |
Panel Type | IPS | ||
Resolution | 1280 x 800 | ||
Brightness | 350 cd/m2 | ||
Contrast Ratio | 800:1 | ||
View Angle | 170°(H) / 170°(V) | ||
Input | 3G-SDI/ HDMI/ DVI-D/ VGA/ Video/ Audio (stereo) | ||
Speaker | 2W x 1 (mono) | ||
VESA (FPMPMI) standard | 75 x 75 mm | ||
DPMS | Yes | ||
Power | DC12V 1.2A | ||
Power Consumption | 10W | ||
Operating Temperature | 0 ~ 50℃ | ||
Storage Temperature | -20 to 60 degree | ||
Dimensions | 245 (W) x 168 (H) x 29.5 (D) mm ※not including stand | ||
Weight | 1000g※not including stand | ||
Package Content | Remote Controller / HDMI cable / VGA cable / Video cable / AC Adaptor / Manual | ||
Certifications | FCC, CE, RoHS |
※Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here. Not responsible for typographical errors.
