17" LED backlight LCD Monitor17" square - SN17TS

  • 17" LED backlight LCD Monitor
  • HDMI/ VGA/ Video (BNC) inputs support
  • 3D Comb Filter and 3D De-interlace
  • PIP Multi-display function
  • VESA (FPMPMI 100x100mm) hole for wall mount
  • RoHS

Related Links


 SN17TS is a 17 inch LED backlighted LCD monitor with HDMI, VGA and Video (BNC) inputs.

 also includes Video (BNC) output bypassing Video input signal to other devices. The input resolution support up to 1080p - digital and 1600x1200 pixels - analog.

 SN17TS adapts to a wide variety of applications including security, education, medical, digital signage and FA.


Multi-input signal support

SN17TS supports both digital and analog input signals with variable input interfaces, HDMI, VGA and Video (BNC). SN17TS also supports up to 1080P (digital) and 1600x1200 (analog) resolutions displaying the contents fit to the screen.

3D Comb Filter and 3D De-interlace

3D Comb Filter and 3D De-interlace adapted SN17TS displays with better video quality.

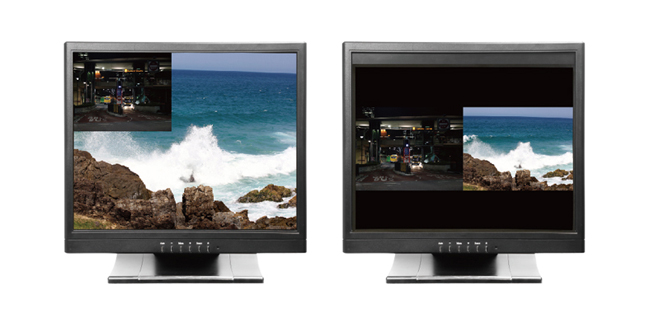

PIP Multi-display function

SN17TS displays 2 different video sources on a single display using PIP (Picture-In-Picture) function.

PIP Multi-display function

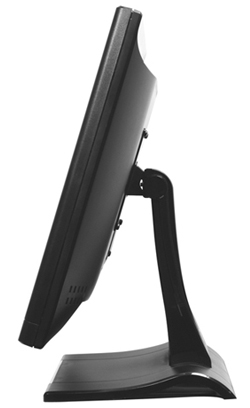

Removable tilts stand with VESA hole

SN17TS includes a vertical tilt stand attached to VESA (FPMPMI 100x100mm) hole. The VESA hole can also be used for wall mount with an optional wall mount bracket.

Removable tilts stand with VESA hole

Product specifications

Model No. SN17TS
Panel Size 17”
Resolution 1280 x 1024
Brightness 250 cd/m2
Contrast ratio 1000:1
Aspect Ratio 5:4
View Angle 160°(H)/160°(V)
Response Time 5 ms
Input HDMI/ Video (BNC)/ VGA(D-Sub 15P)
Output Video (BNC) Pass-through
Speaker 3.5φStereo mini/ RCA(L/R)
VESA (FPMPMI) 100 x 100 mm
Power Input = AC100V - 240V 50/60Hz
Power Consumption Max.25W
Operating Temperature 0 ~ 50℃
Storage Temperature -20 ~ 60℃
size 374(W) x 395(H) x 240(D) mm (not including stand)
Weight 3.1kg
Accessories AC Adaptor/ VGA cable/ Audio cable(3.5φ stereo mini)/Manual
Certification FCC/ CE/ RoHS

※Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here. Not responsible for typographical errors.
