HDMI Monitor15.6" wide - LCD1560

  • 15.6-inch FHD (1920x1200) IPS Panel
  • Supports HDMI output
  • Supports HDMI, VGA, Video and Audio input
  • HDCP compliant
  • Configurable aspect ratio
  • Pixel-to-pixel mode and Image flip function
  • Stepless adjustable stand with low CG
  • VESA 75x75mm and 100mmx100mm compatible
  • 1/4-inch Thread Holes
  • Support for external battery
  • Support for U-Type stand and sunshade (optional)
  • Support for 19-inch rackmount (6U) brackets (optional)
  • Exclusive non-glare protection film (optional)

Related Links

Introduction

The LCD1560 features a 15.6-inch, 1920x1200 (16:9) IPS panel with HDMI/ VGA/ Video (RCA) & Audio L/R (RCA) inputs and an additional HDMI pass through output utilizable for daisy chain monitors for conference rooms and Digital Signage application, etc. where mirroring displays are required.
The LCD1560 also provides high durability and display clearness achieved by using OCA (Optical clear adhesive) with 6H hard glass panel.

The aspect ratio can be manually configured from the following presets: [Full screen (16;10)], [4:3], [16:9], [1.85:1] and [2.35:1]. Additionally, the LCD1560 is HDCP 1.4 compliant, capable of displaying HDCP protected source such as Blu-ray, etc.

The LCD1560 also features pixel-to-pixel mode, underscan, image flip, and also includes a function key, activated by holding down the “Exit” button, which can be manually configured to trigger various function for quick access. The key-lock function is also equipped that disables all buttons operations and prevents erroneous operations suitable for a public place installation.

The LCD1560 has a thickness of 37.7mm and is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 8 threaded holes compatible with both FPMPMI 75x75 and 100x100mm VESA mounts. 1/4-inch screw mounts on top, bottom and both sides allow installation on a tripod or mounting on a monitor arm.

The threaded holes for mounting V-Mount battery plate are also placed on the back of the monitor for battery operation.

We also provide an optional U-type stand, sunshade, rackmount brackets and a non-glare protective film to reduce reflection of fluorescent lamps and sun light.

The versatility of the LCD1560 makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

Features

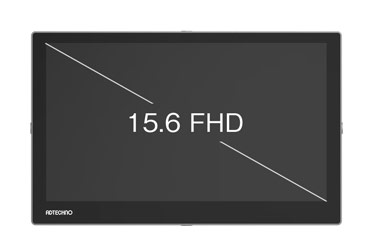

15.6inch Full HD IPS panel

The LCD1560 uses a Full HD (1920x1200) 15.6inch IPS panel with high brightness of 300cd/m2, wide viewing angles of 170(H) / 170(V) degrees and high contrast of ratio of 1000:1.

15.6inch Full HD IPS panel

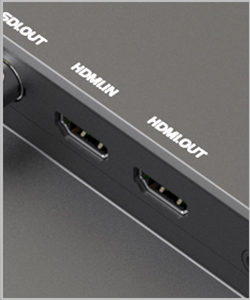

Support for HDMI, VGA, Video Input and HDMI Output

Support for HDMI, VGA, Video(RCA) input. Maximum Resolution is 4K UHD@30 for digital and 1920x1200 for analog input. Video (RCA) inputs are also provided to ensure broad compatibility with various professional and consumer products. An additional HDMI output with pass through functions to daisy chain monitors is also included. *2) *3)

Support for HDMI, VGA, Video Input and HDMI Output

HDCP compliant

LCD1560 is compliant with HDCP and is capable of displaying HDCP protected media and can be connected to Blu-ray players and game consoles.*1)

Configurable aspect ratio

Aspect ratio can be configured to [Full screen], [4:3], [16:9], [1.85:1] and [2.35:1] via OSD settings menu.

Configurable aspect ratio

Pixel-to-pixel mode and Image flip function

When using digital input Pixel-to-pixel mode allows users to display media contents at its original resolution.
Image on screen can be flipped to adapt to various installations and applications.

Pixel-to-pixel mode and Image flip function

1/4-inch Thread Holes

1/4-inch screw mounts on top, bottom and both sides allow installation of tripods and monitor arms.

1/4-inch Thread Holes

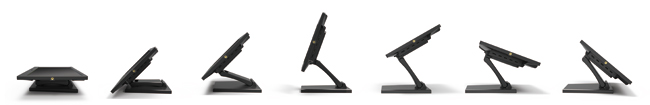

Stepless adjustable stand with low CG (center of gravity)

LCD1560 features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

Stepless adjustable stand with low CG (center of gravity)

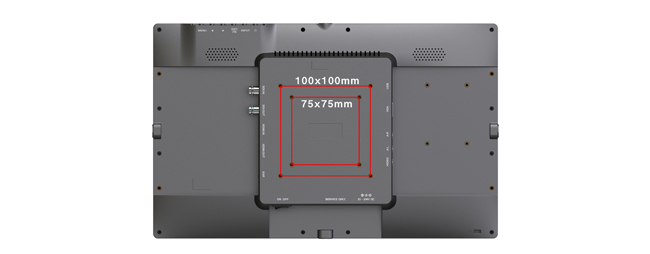

VESA mount FPMPMI 75x75mm and 100x100mm compatible

LCD1560 is equipped with 8 threaded holes compatible with VESA 75x75mm and 100x100mm mounts.
Removal of the stand is required to use the VESA mount holes.

VESA mount FPMPMI 75x75mm and 100x100mm compatible

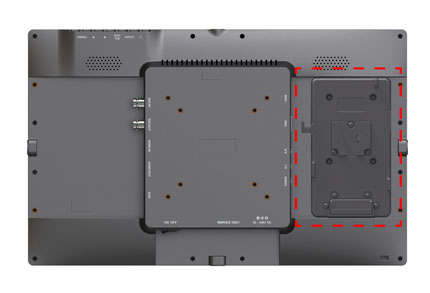

Support for external battery

Mounting holes for V-Mount battery plate to allow usage of aftermarket batteries

Support for external battery

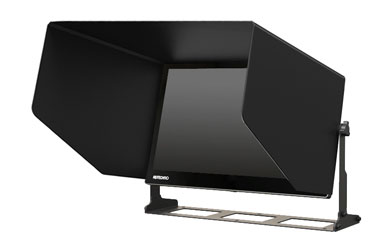

U-Type stand and Sunshade (optional)

Optional U-Type stand [Model No. UH-15STD] and Sunshade [Model No. UH-15S] are available.

U-Type stand and Sunshade (optional)

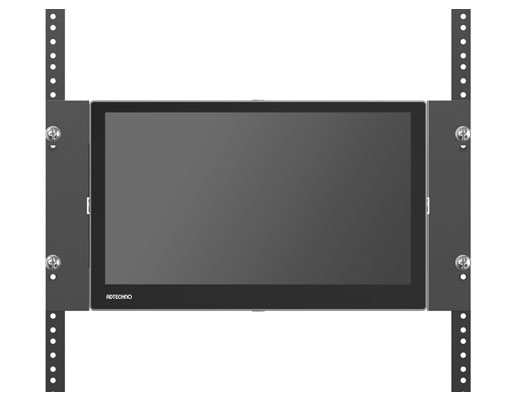

Brackets for 19-inch EIA Rack (optional)

An optional EIA bracket, [Model No. UH15-BRK] is available for mounting the LCD1560 on a 19-inch EIA Rack.
The LCD1560 fits to the rack with the height of below 6U.

Brackets for 19-inch EIA Rack (optional)

Exclusive non-glare protection film (optional)

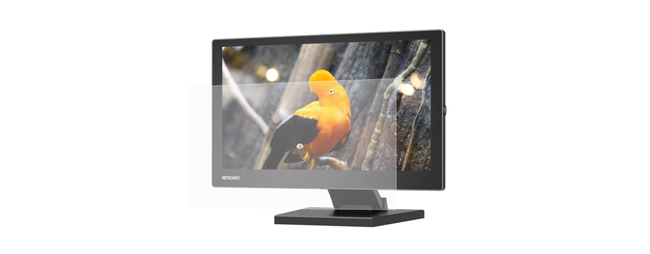

Optional non-glare protection film to prevent reflection from fluorescent lamps and sun light. It will also protect against scratches, fingerprint and dust.

Exclusive non-glare protection film (optional)

Product specifications

Model No. LCD1560
Color Black
Panel Size 15.6inch 16:9 wide format IPS panel
Surface Glare / Hard coating 6H
Resolution 1920 x 1200
Brightness 300 cd/m2
Contrast ratio 1000:1
View Angle 170°(H)/170°(V)
Input HDMI x 1 / VGA x 1 / Video (RCA) x 1 / Audio (RCA) L・R x 1
Output HDMI x 1 / 3.5mm stereo mini jack
Speaker 2W x 2 (L/R)
VESA Standard 75x75mm / 100x100mm
Power DC 10~24V (recommended 12V)
Power Consumption Max. 16W
Operating Temperature 0 ~ 40℃
Storage Temperature -20 ~ 60℃
Operation humidity / Storage humidity 10 ~ 90% (without condensation)
size 383(W) x 239(H) x 37.7(D) mm (not including stand)
Weight Approx. 1850g (not including stand)
Accessories Monitor / Remote Control /AC Adapter
Warranty 1-years
Certification FCC / CE / PSE / RoHS

*1) HDCP 2.2 is not supported
*2) Signal strength may deteriorate according to cable length and number of attached products. When using daisy chain an equalizer maybe required
*3) Contents protected by HDCP cannot be passed through to HDMI output.
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with all devices not guaranteed.

Supported Formats

Format Resolution Frequency(Hz)
HDMI 4K DCI(4096×2160) 23.976 / 24
4K UHD(3840×2160) 23.976 / 24 / 25 / 29.97 / 30
1080p 23.976 / 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i 50 / 59.94 / 60
720p 25 / 29.97 / 30 / 50 / 59.94 / 60
576p 50
576i 50
480p 59.94 / 60
480i 59.94 / 60
VGA 800×600 60
1024×768 60
1280×1024 60
1366×768 60
1600×1200 60
1920×1080 60
1920×1200 60
Video NTSC / PAL

※HDR is not supported
※YCbCr 4:2:0 is not supported
※Supports SDI Level A and B
