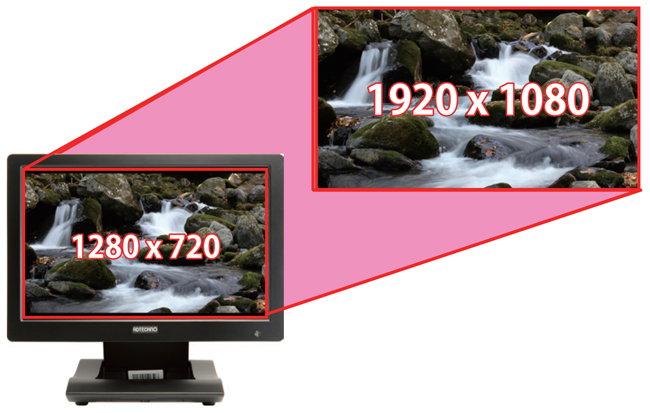

The LCD1015HDS is HDBaseT CTS Class B certified 10.1” high resolution (1280x800), high brightness (350cd/m2) and high contrast ratio (800:1) IPS LCD monitor. With a built-in HDBaseT receiver, the LCD1015HDS is able to display video/audio signals via HDBaseT and be powered by just a LAN cable. The LCD1015HDS is also able to extend the remote control signales bi-directionally with a built-in IR receiver/transmitter. This HDBaseT transmission range can be extended up to 60m. With downscan function, higher resolution (up to 1080p) images are automatically adjusted to fit the native 1280x800 screen.
The user will also be to configure the aspect ratio from the various standard configurations: [Full Screen] [4:3] [16:9] [1.85:1] [2.35:1]. The LCD1015HDS is ideal for a wide variety of applications such as educational institutions, exhibtions, events, showroom, video conference, digital signage, monitoring in production lines, and especially applications requiring long range extensions.

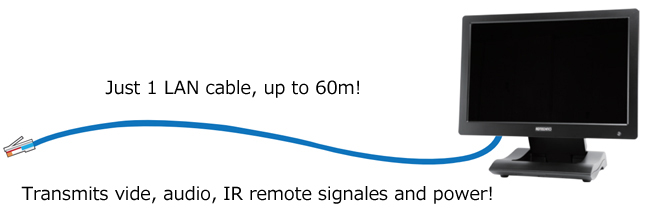

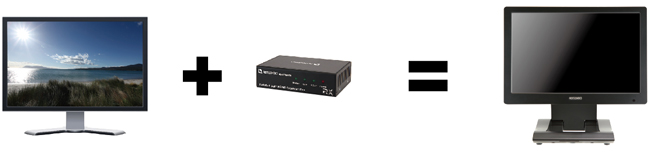

The LCD1015HDS is equipped with a built-in HDBaseT Receiver/ Paired with ADTECHNO’s HDBaseT Transmitters such as the HDBaseT HDMI Extender TX (Model: HD-06TX), an uncompressed (with audio via HDMI), remote control signal and power can be transmitted up to 60m with the use of just a CAT5e or Cat6 twisted pair LAN cable.
The LCD1015HDS features PoH capability, removing the need for the use of an AC adapter when in use with another PoH-capable HDBaseT Transmitter.
The LCD1015HDS supports bi-directional IR transmission. The LCD1015HDS settings can be controlled from the source side connected to the HDBaseT transmitter, TX, and the source device settings can be controlled from the LCD1015HDS side through bi-directional IR transmission.
The LCD1015HDS is equipped with an IR receiver to receive IR signals and transmit the signals to the source device (eg. Blu-ray player) via HDBaseT. This extends the remote control range to that of the LCD1015HDS.
The LCD1015HDS utilizes an IPS panel with a high resolution of 1280x800 and a brightness of 350 cd/m2. IPS panels boast wide view angles of 170°(V) / 170°(H), high contrast ratio (800:1) and vibrant color display capability.
The LCD1015HDS has a native aspect ratio of16:10, but is capable of adjusting the input media's aspect ratio to accomodate other resolutions of different aspect ratios. This settings can be configured in the OSD (on screen display) settings menu. Available aspect ratio settings: [Full screen] [4:3] [16:9] [1.85:1] [2.35:1]

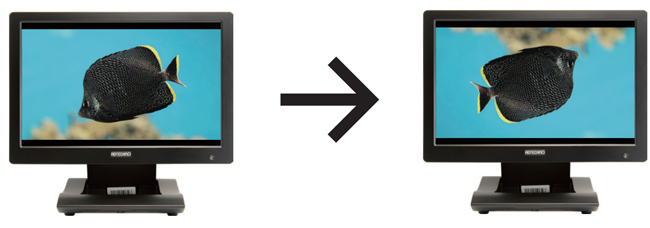

Input display can be flipped horizontally and/or vertically to adapt to the setup environment.

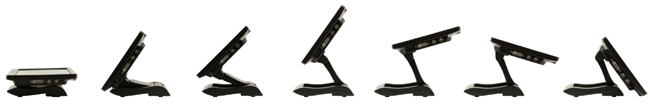

The LCD1015HDS features a stepless adjustable stand which enables bending and stretching to your desired angle. The rear side of the stand also includes holes that can be used with wall-mount hooks.
Model No. | LCD1015HDS | |
---|---|---|
Color | Black | |
Display | Size | 10.1” |
Panel Type | IPS | |
Resolution | 1280x800 | |
Brightness | 350 cd/m2 | |
Contrast Ratio | 800:1 | |
View Angle | 170°(H)/170°(V) | |
HDBaseT | Max. Distance | 60m |
Video Signal | 480i / 480p / 576i / 576p / 720p / 1080i / 1080p | |
IR Receiver | Bi-directional, extends source IR range | |
HDMI Standard | HDMI Deep Color, Full HD | |
HDCP | Pass-thru | |
Input | HDBaseT (RJ-45) x 1、HDMI x 1 | |
Speaker | 2W x 2 | |
VESA Mount Compatibility | 75 x 75 mm | |
Power | DC48V / PoH | |
Power Consumption | Max 10W | |
Operating Temperature | 0℃ to 50℃ | |
Storage Temperature | -20℃ to 60℃ | |
Dimensions | 245mm x 168mm x 29.5mm (excluding stand) | |
Weight | Approx. 1kg (Approx. 440g exlcuding stand) | |
Package Contents | LCD1015HDS x1, Remote Controller x1, AC Adapter x1, Manual x1 | |
Certification | FCC/CE/PSE/RoHS/HDBaseT |
※Due to product improvements, specifications are subject to change without notice.
