Full HD IPS panel Enables easy focusing and high detailed pre-viewing



6H hard Protective glass A 6H hard protective glass is attached to the panel using OCA (Optical Clear Adhesive) to ensure clear and beautiful picture while also providing high protection to the product.

Up to 4K Input

Up to 4K30 Input / Output/b> Capable of 4K@30 Input to enable compatibility with the newest 4K cameras

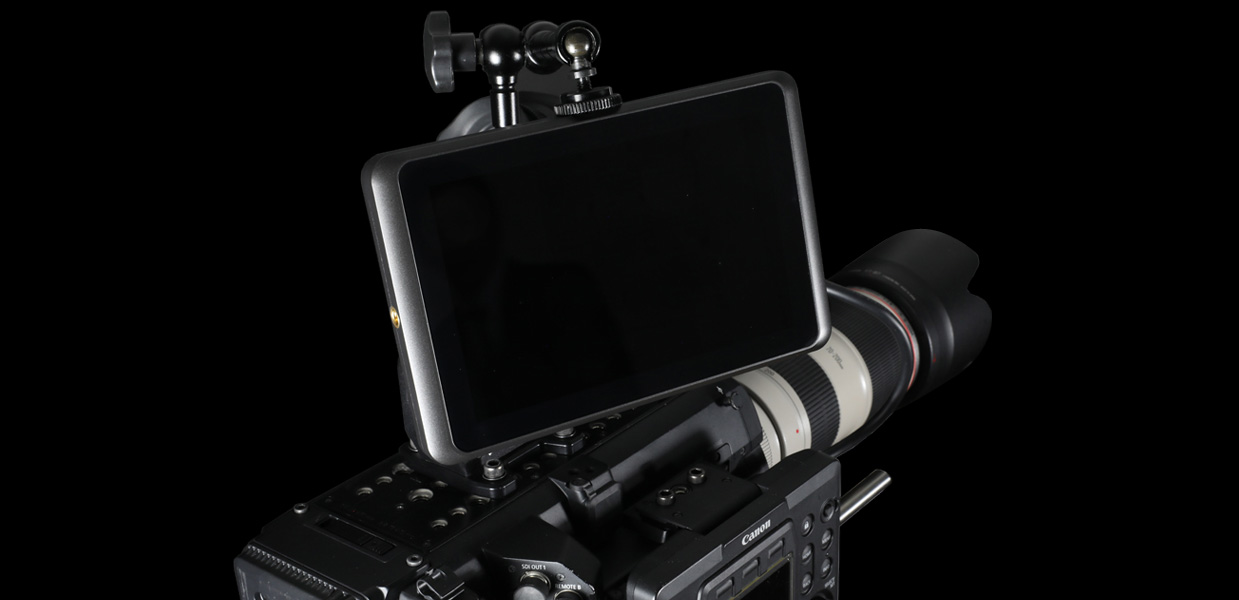

Ultra-Light weight design for maximum portability





Ultra-Light weight design. The 5-inch model is 185g while the 7-inch model with SDI is 375g making it optimal to use with cameras

Realtime sharing of Image

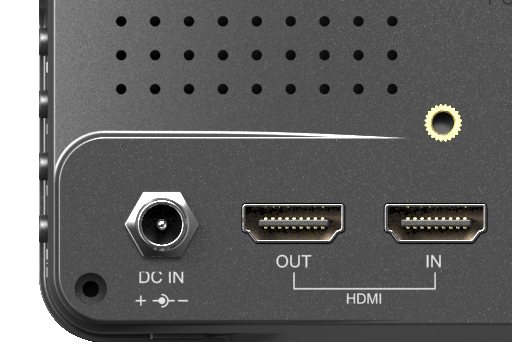

HDMI Input / Output The camera monitor supports both HDMI In and Output. The HDMI input signal is passed through to the HDMI output to support connection to other monitors or recorders.

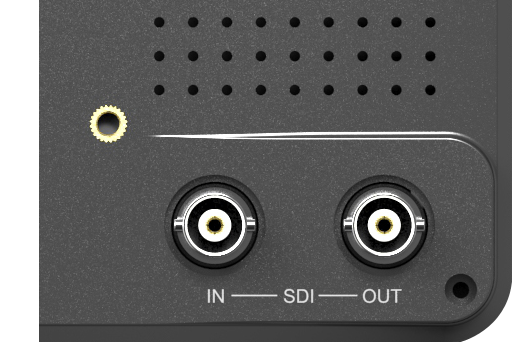

SDI Input / Output The 7inch model 75SB supports 3G-SDI In and Output for professional use. The SDI Input signal is passed through to the SDI output to support connection to other monitors or recorders.

Professional monitoring tools



Professional monitoring tools are available through OSD menu. Also a function key to allocate various features is available





Peaking

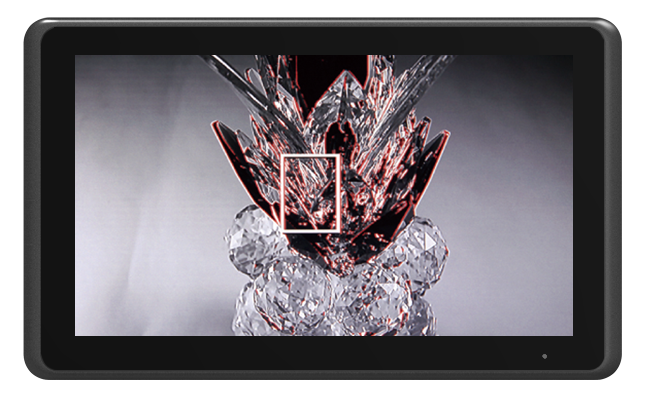

Peaking tool will display area of focus assisting user during shooting

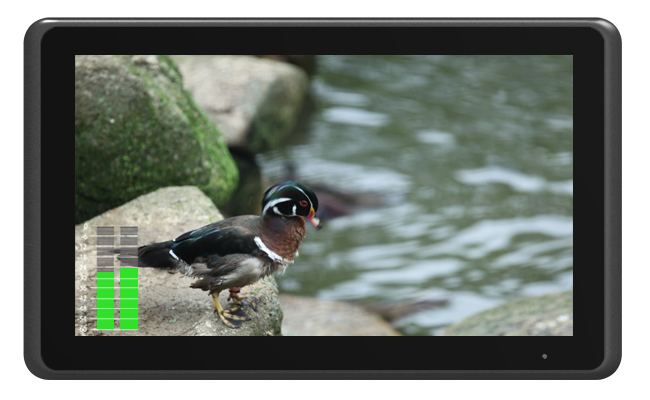

Audio Level Meter

Audio level meter enables visualization of audio input of up to 2 channles.

Versatile Battery System

2-Way power supply In additional to 7-24V DC input Sony [NP-F970] and Canon [LP-E6N] Batteries can be directly attached to the monitor

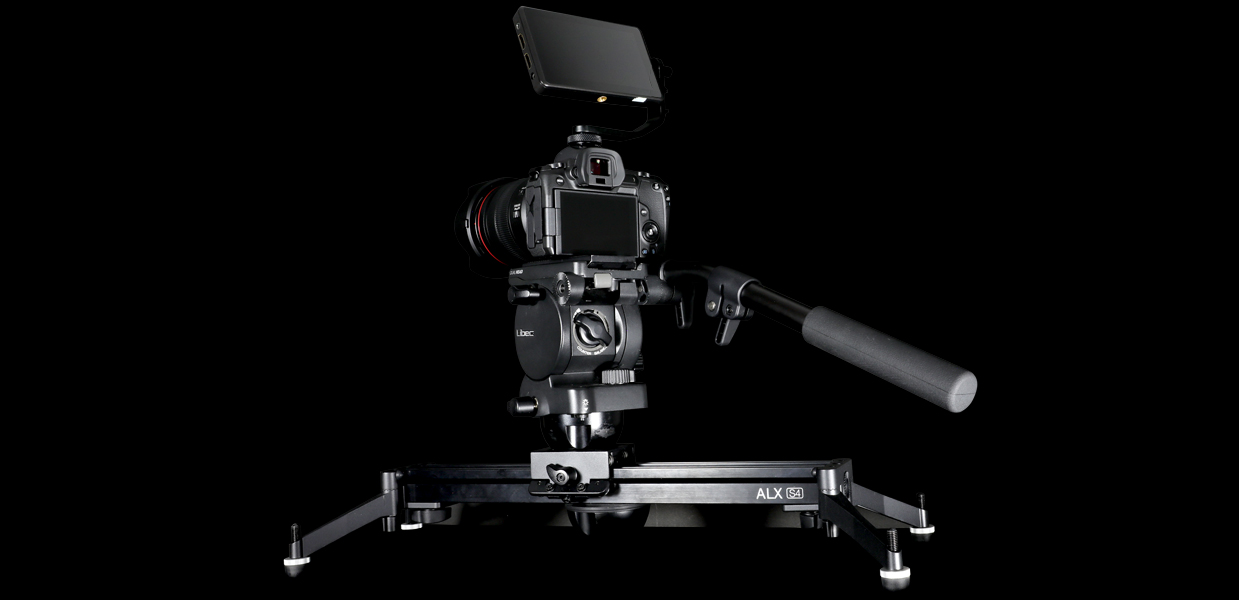

Support for 1/4-inch screw mounts

Support for 1/4-inch screw mounts Support for aftermarket tripods, hot shoe adapters and many other accessories






Sunshade A sunshade is provided for use under sunlight. The sunshade is made from light weight plastic with a black mate finish to ensure easy carrying and providing protection against glare from direct sunlight.

Product specification




Model Number 55HB 75HB 75SB
Color Matte Black
LCD Panel Size 5-inch wide 7-inch wide
Panel Type IPS
Surface Glare / Hard Coating 6H
Resolution 1920 x 1080 1920 x 1200
Brightness 460 cd/m2 450 cd/m2
Color 16.77 million colors
Contrast Ratio 1000:1 1100:1
View Angle 170°（H）/170°（V） 160°（H）/160°（V）
Input HDMI x 1 ※1) 3G-SDI x 1 / HDMI x 1 ※1)
Output HDMI x 1 ※1)
Audio Line Out (3.5mm) x 1		 3G-SDI x 1 / HDMI x 1 ※1)/
Audio Line Out (3.5mm) x 1
Speaker none
1/4-inch mount hole 3 4
Power DC　7～24V
Power Consumption Max. 8W Max. 8.2W Max. 9.5W
Operating Temperature 0 ～ 50℃
Storage Temperature -20 ～ 60℃
Operation Humidity / Storage Humidity 10 ～　90%（without condensation）
Size （㎜）
（※Protruding parts not included）		 135 (W) x 82 (H) x 18 (D) 194.5 (W) x 125 (H) x 21 (D)
Weight 185g 355g 375g
Package Contents AC Adaptor （DC12V） /
Sunshade /
sunshade mounting frame /
Manual 		AC Adaptor （DC12V） /
Sunshade /
Screws for Sunshade (3pcs) /
Manual
Warranty 1-Year
Certification FCC/CE / PSE / RoHS

※1) HDCP is not supported
※2) Signal strength may deteriorate according to cable length and number of attached products. When using products in daisy chain an equalizer is recommended
※3) Signal strength may deteriorate according to cable length and number of attached products. When using products in daisy chain an equalizer is recommended
※4) Cross conversion between HDMI and SDI is not supported
※5) Some functions cannot be allocated to the function key
※6) Battery not included
※7) Sunshade for 75HB and 75SBwill use 1/4ich mounting holes on both sides and top of monitor. Sunshade will not provide full protection against glare
※8) Accessories are sold separately
※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC
※Specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here
※ Compatibility with all devices not guaranteed

Supported Format




Type Resolution Refresh Rate (Hz)
HDMI 480i 59.94 / 60
480p 59.94 / 60
576i 50
576p 50
720p 23.976 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
1080i 50 / 59.94 / 60
1080p 23.976 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
2160p 23.976 / 24 / 25 / 29.97 / 30
SDI 525i(NSTC) 60
625(PAL) 50
1920x720p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 23.98/24/25/29.97/30/50/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60

Only RGB and Y.Cb.Cr 4:4:4 8bpc are suppported for 2160p
Only TV formats are supported
SDI is only supported by Model: 75SB

Product

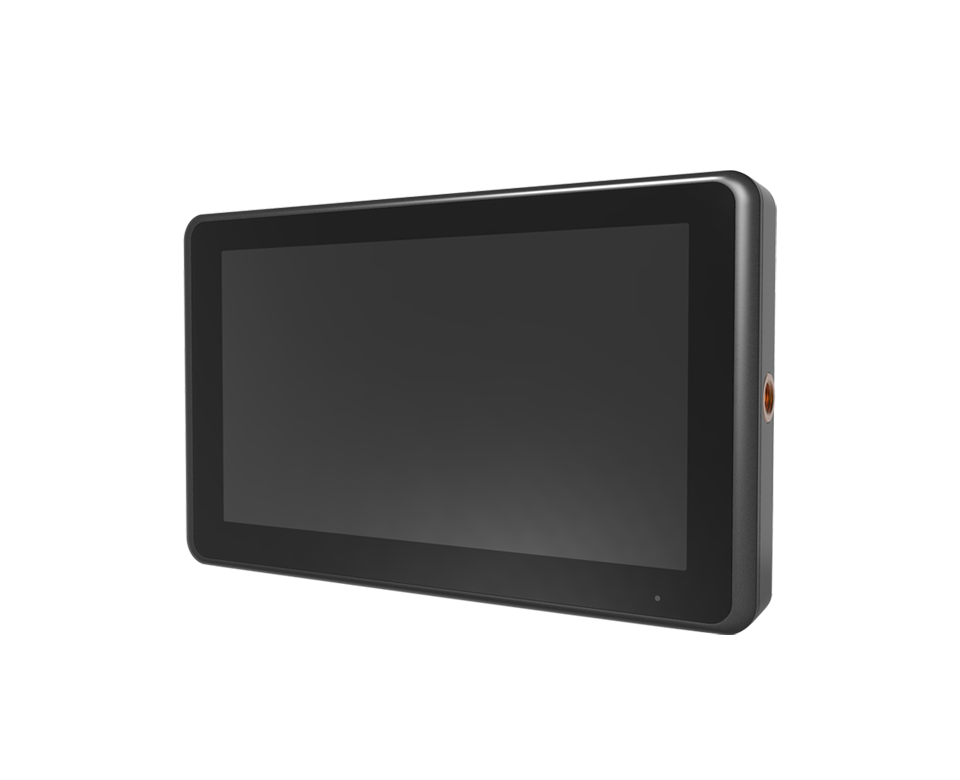

5-inch HDMI Model
55HB		 7-inch HDMI Model

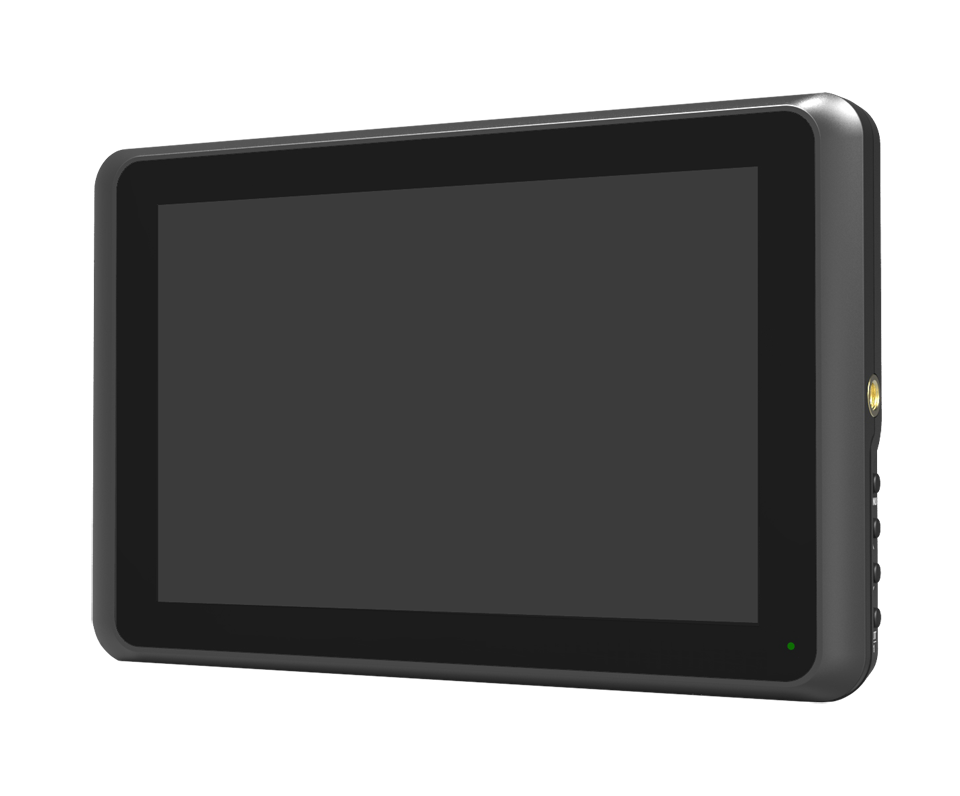

75HB		 7-inch SDI Model
75SB

5-inch Field Monitor
with 4k30 Input/Output and
Full HD IPS pannel

7-inch Field Monitor
with 4k30 Input/Output and
Full HD IPS pannel

7-inch Field Monitor
with 4k30 Input/Output and
Full HD IPS pannel and SDI support
製品ページへ 製品ページへ 製品ページへ

Optional Accessories

Anti-glare Protection film Camera Arm for 55HB Ball head hot shoe
55FLM
75FLM		 55ARM 75FHS


Anti-glare film to protect against glare to improve visibility

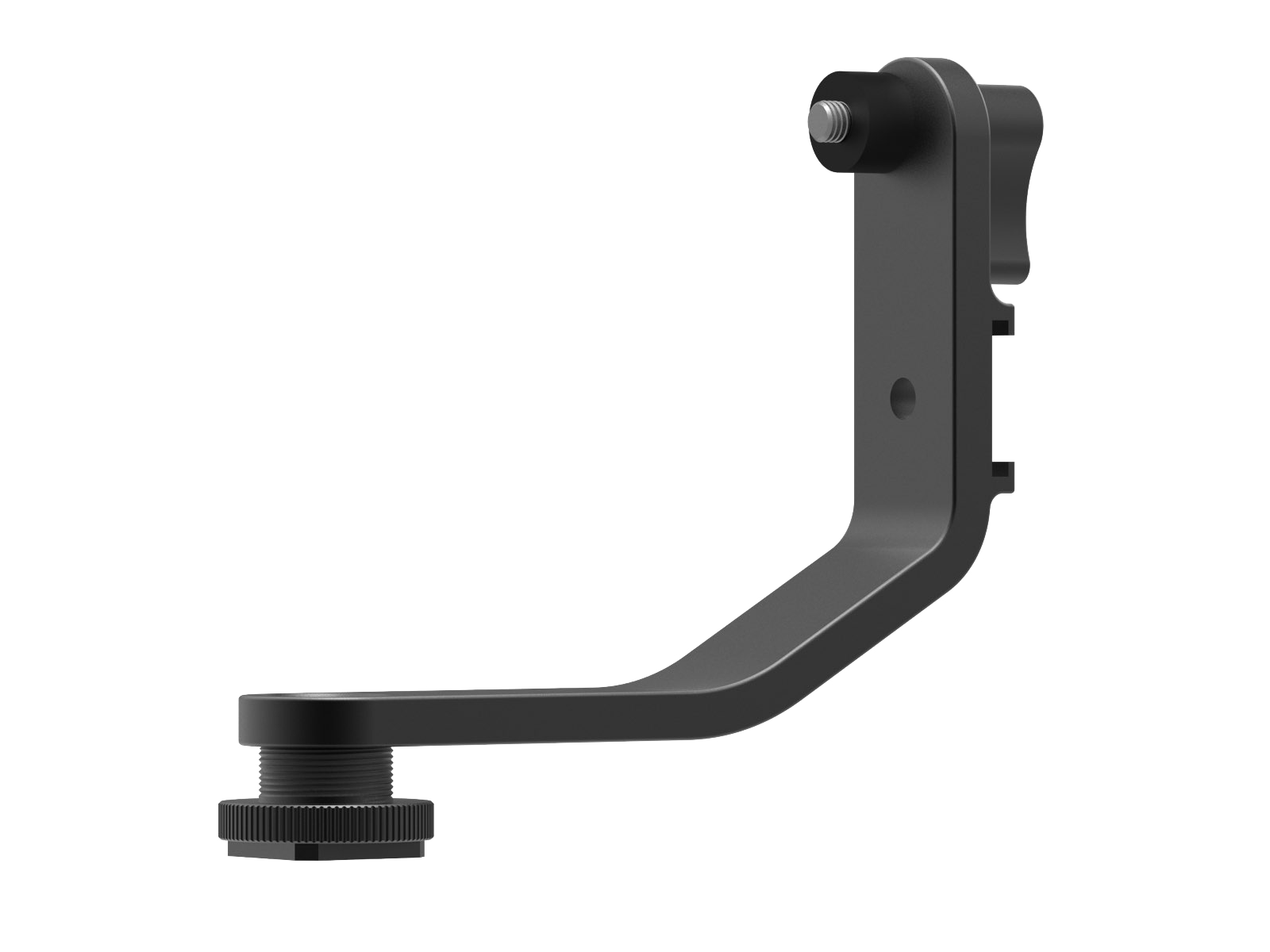

Camera arm to install field monitor on hot shoe of camera

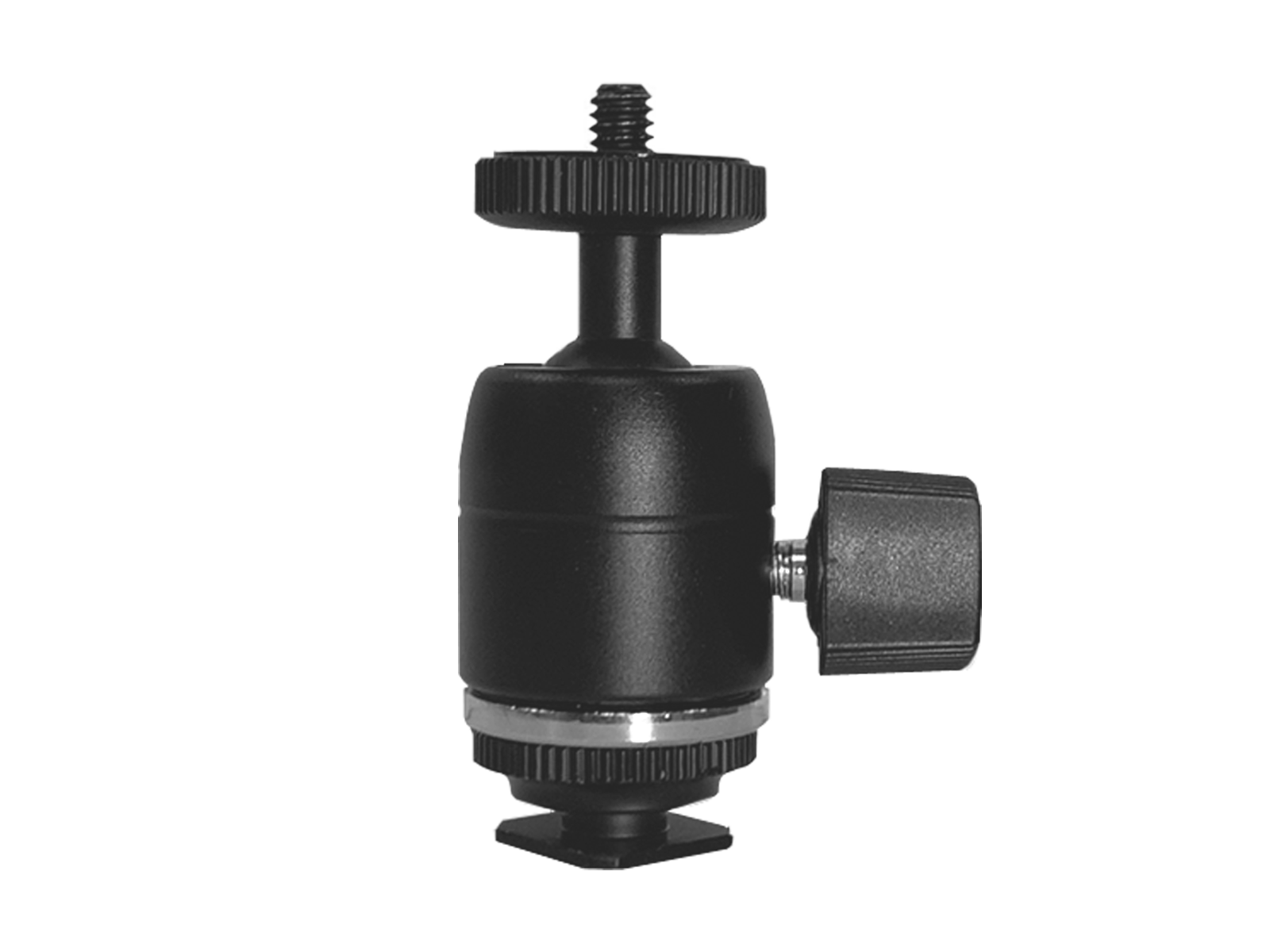

Ball head that can be easily attached to camera's hot shoe
