METAL CARRY CASE with 13.3" monitor exclusively for the ATEM MiniMV1330

  • Dedicated Carry Case for ATEM Mini
  • 13.3 inch Full HD IPS LCD Panel
  • Program Out & Multi-view Feature
  • Source Selectable Audio Out
  • Rugged Metal Housing with Carry Handle
  • Built-in Cooling Fan Design
  • Kensington Securlty Slot for Anti-Theft

Related Links

Introduction

 The MV1330 is a carry case for ATEM Mini / ATEM Mini Pro / ATEM Mini Pro ISO with a full HD resolution (1920x1080) 13.3-inch IPS LCD display and a multi-viewer.

 Built-in multi-view function that splits and displays 4 HDMI input signals on one screen. Input signals from source devices such as cameras and personal computers are distributed and input to the ATEM Mini series and 13.3-inch full HD LCD panels, respectively. Therefore, you can use the only HDMI output terminal of the ATEM Mini series as a program output while displaying the multi-view screen on the MV1330.

 Equipped with a 3.5mm stereo earphone jack terminal that allows you to select any source from the input signal and output audio. You can monitor the audio of each HDMI input signal by connecting earphones or headphones. In addition, you can easily switch the audio source with a single touch of a button.

 Uses a strong metal housing. It has a retractable mechanism and a carry handle that allows you to carry it with the ATEM Mini series attached. At the site, just open the cover and energize. You can also save a lot of setting time.
 In addition, it has a built-in cooling fan that exhausts the heat of the ATEM Mini series body to the outside. The fan speed can be set in 5 steps, and it is designed so that you can use it with confidence for a long time.
 The connection terminal side is equipped with a Kensington lock hole to prevent theft, and a commercially available security wire lock is used to protect it from theft when it is installed in a public place.

 Equipped with a full HD LCD display and multi-viewer, the MV1330 is the perfect ATEM Mini series carry case for all sites that use the ATEM Mini series, from online classes at school to corporate distribution, seminars and small studios.

Features

Dedicated Carry Case for ATEM Mini

The MV1330 is a carry case for the ATEM Mini series. It has a 13.3-inch IPS LCD panel with F ull HD resolution (1920x1080). The ATEM Mini series fits neatly into the housing designed exclusively for ATEM Mini / Mini Pro / Mini Pro ISO. ※1

Dedicated Carry Case for ATEM Mini

Special designed metal casing for ATEM Mini/ Mini Pro/ Mini Pro ISO

Dedicated Carry Case for ATEM Mini

The rear interface terminals are designed as the same arrangement as the ATEM Mini series.

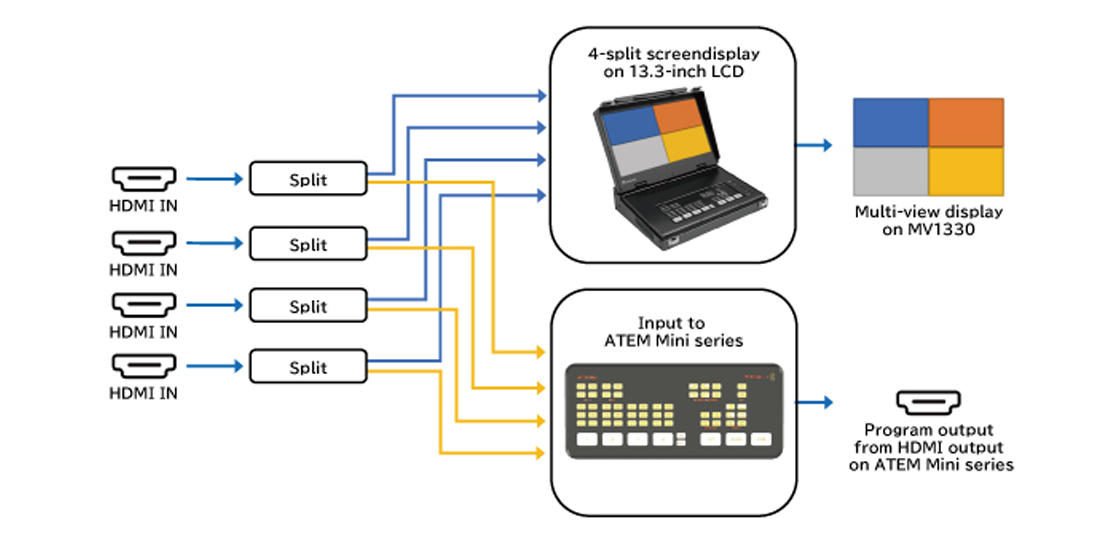

Program Out & Multi-view Feature

Have you ever wanted to monitor the multi-view screen at the same time outputting the program video to HDMI display from the ATEM Mini? Input signals from source devices such as camera and PC are split and distributed respectively to the ATEM Mini and MV1330 main board. MV1330 also provides multi-view funciton which allows to display 4 different HDMI video source on one screen. This can make only one HDMI output port provided on ATEM Mini always to be used as a program output. ※1

Program Out & Multi-view Feature

ATEM Mini series can output either multi-view or program output at one time

Program Out & Multi-view Feature

The HDMI output of ATEM Mini can be just utilized as program output

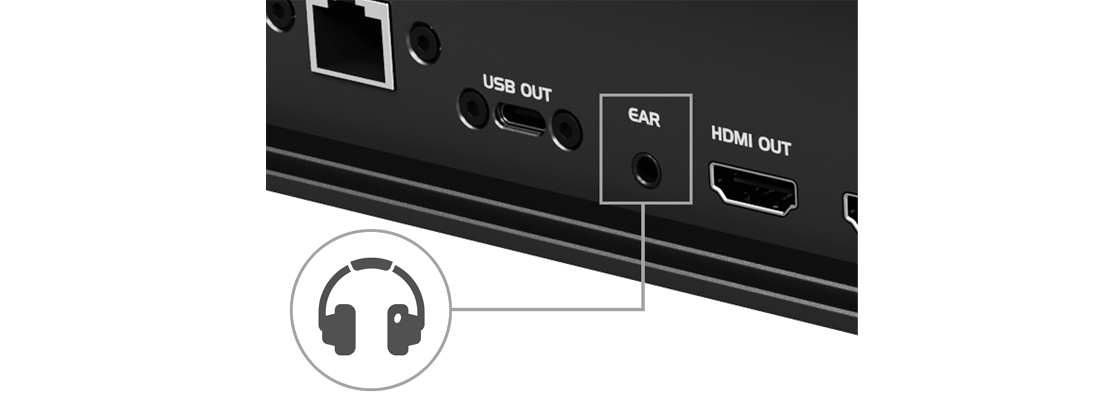

Source Selectable Audio Out

3.5mm earphone jack terminal outputs the audio by selecting one from the four input HDMI sources. User can easily switch the audio source with select buttons on the MV1330. User can monitor the sound of each source signal through earphone or headphone.

Source Selectable Audio Out

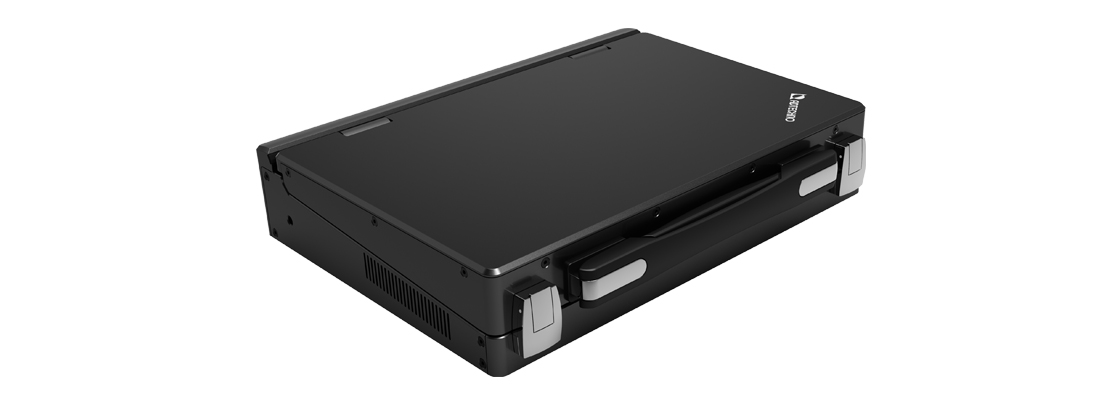

Rugged Metal Housing with Carry Handle

MV1330 is built with a rugged metal housing with a retractable mechanism and carry handle. User can carry it with the ATEM Mini installed inside. At the field, just need to open the casing cover and plug in the power which saves a lot of setup time.

Rugged Metal Housing with Carry Handle

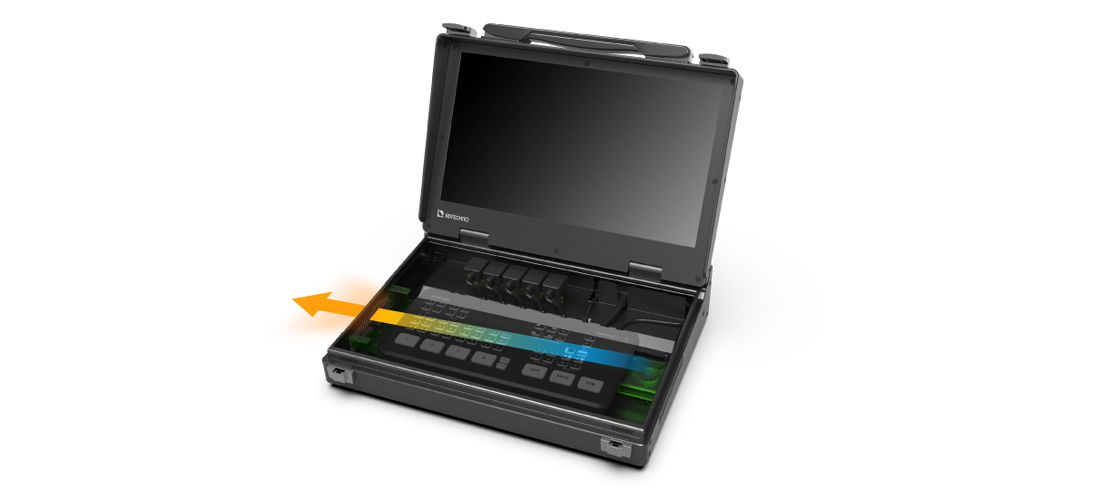

Built-in Cooling Fan Design

To ensure the operation reliability long time, MV1330 has a built-in cooling fan to dissipate the heat generated by the ATEM Mini.

Built-in Cooling Fan Design

Kensington Securlty Slot Anti-Theft

kensington Securlty Slot is provided on the back corner of MV1330. User can use a security wire lock which is commercially available to protect it from being stolen when MV1330 is installed in a public premises.

Kensington Securlty Slot Anti-Theft

Classrooms, rental conference room exhibitions, and non-entry conferences will be held.

Application

The MV1330 works perfect with ATEM Mini series which brings add-on features and better usability that make operation easy and quick to set up the live production environment, suitable for business presentation, live streaming, education, training and lost of other applications.

Application

Specifications

Model No. MV1330
Color Black
LCD Size 13.3”wide (16:9)
Panel IPS
Surface Anti-Glare
Resolution 1920x1080
Brightness 350 cd/m2
Contrast Ratio 1000:1
Viewing angles 178°(H)/ 178°(V)
Interface Input HDMI x 4 (to connect with ATEM Mini HDMI Input 1~4)
3.5mmΦ phone jack ( to connect with ATEM Mini MIC 1~2) x 2 pass through
Output HDMI x 1 ( to connect with ATEM Mini HDMI Output ) 3.5mmΦphone jack x 1
Other I/OI/O USB OUT (USB-C) x 1 pass through
ATEM CONTROL(Ethernet Port) x 1 pass through
ATEM Mini Series Interface Input HDMI x 1 ( to connect with ATEM Mini HDMI Output)
Output HDMI x 4 ( to connect with ATEM Mini HDMI Input 1~4)
3.5mmΦphone jack( to connect with ATEM Mini MIC 1~2) x 2 pass through
Other I/O USB OUT (USB-C) x 1
pass through ATEM CONTROL(Ethernet Port) x 1 pass through
Speaker -
Power Input -
Power Output DC 12V ※For ATEM Mini
Power Consumption(DC12V) 36W ※With ATEM Mini Pro ISO
Operating Temp. 5 ~ 40℃
Storage Temp. -10 ~ 60℃
Humidity 0 ~ 90% (without condensation)
Dimension 330 (W) x 243 (H) x 67 (D) mm ※Closed state without protrusions
Weight Approx. 3,850g ※Not include ATEM Mini
Accessories HDMI cable x5 / AC Adaptor x1 / Power cable x1 / Hex wrench x1 / screw(spare) x4
Warranty 6 months
Certificate FCC / CE / PSE ( AC Adaptor ) / RoHS

* 1) The imaginary "ATEM Mini series" and "ATEM Mini" in the document refer to "ATEM Mini", "ATEM Mini Pro" and "ATEM Mini Pro ISO".
※HDCP 2.2 is not supported
※Compatibility with ALL devices not guaranteed.
※ATEM Mini,ATEM Mini Pr,or ATEM Mini Pro ISO are trademarks or registered trademarks of Blackmagic Design Pty Ltd.
※HDMI, HDMI logo, or High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
