48Gbps Ultra High Speed HDMI 2.1 Optical Fiber CableAHU-xxxM
- Ultra High Speed HDMI® cable ATC certified
- 8K60Hz/4K120Hz (48Gbps) transmission
- Available lengths: 7.5/ 10/ 15/ 20 meters
- Lightweight and soft cable wire (allowable bending radius 45mm)
- Noise free (excellent electromagnetic compatibility)
Related Links
Introduction
The AHU is a series of certified Ultra High Speed HDMI AOC Cable, transmitting 48Gbps video signal for support of all the latest HDMI 2.1 specifications including 8K@60Hz/ 4K@120Hz. The series come with the cable length of 7.5, 10, 15 and 20 meters.
The AHU is suitable for home theater, game event, video production studio, medical sites, etc. where the application requires a long distance 8K video transmission.
Features

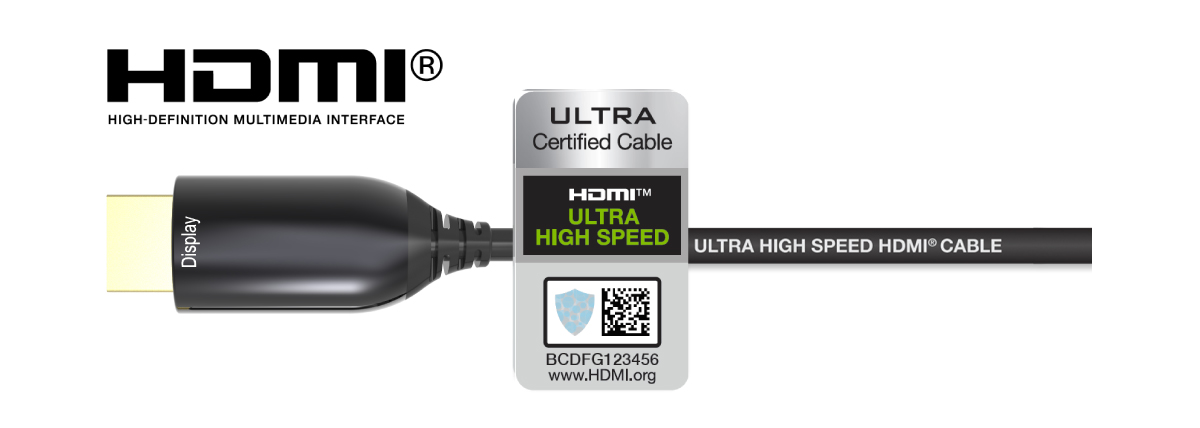

Ultra High Speed HDMI® cable certification
The QR code label assigned with an unique authorized certificate number.
Lightweight and soft cable (minimum allowable bending radius 45mm)
The AHU cable utilizes a light and soft cable wire (only 310g with 10 meters), which make it easy to carry, resulting a stress less to the HDMI conectors of connecting devices during the installation.
Noise free (excellent electromagnetic compatibility)
The AHU connectors utilize a zinc alloy shell which ensures a robust strength and excellent EMC compatibility.
Zinc Alloy shell ensures excellent electromagnetic compatibility
Specification
| Model No. | AHU-xxxM (xxx indicate the length) | ||
|---|---|---|---|
| Length | 7.5 / 10 / 15 / 20 | ||
| Connector | Source | HDMI A Type | |
| Sink | HDMI A Type | ||
| Connector Dimension | 45mm x 20 mm x 9mm (W x H x D) | ||
| Cable Type | Active (4 GOF，7 Copper) | ||
| Max Transmission Speed | 48Gbps | ||
| HDCP | Passthrough (2.3) | ||
| Dynamic HDR | YES | ||
| HEC | YES | ||
| eARC | YES | ||
| DSC | YES | ||
| External Power | NO | ||
| Max Power Consumption | 0.25W | ||
| Color | Cable :Black / Conector：Gold | ||
| Cable | Shielded | ||
| Cable Diameter | 4.5mm ±0.2 mm | ||
| Bending Radius | Min 45mm | ||
| Cable Tensile | 230N (23kgf) | ||
| Cable Direction | YES | ||
| Max Resolution | 8K60Hz / 4K 120Hz | ||
| Operation/Storage Temp. | 0℃～50℃ / -40℃～70℃ | ||
| Opearting & StorageHumidity | 10～80% | ||
| Warranty | 1 year (only for the chip inside the connector) | ||
| Certificate | FCC / CE / RoHS / ATC (HDMI 2.1) | ||
