Dante AV Ultra Smart Display Module - Dante AV Ultra Colibri to Intel® SDMDAV-03SBL

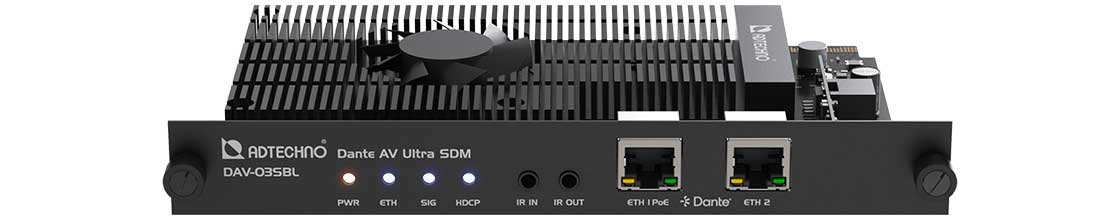

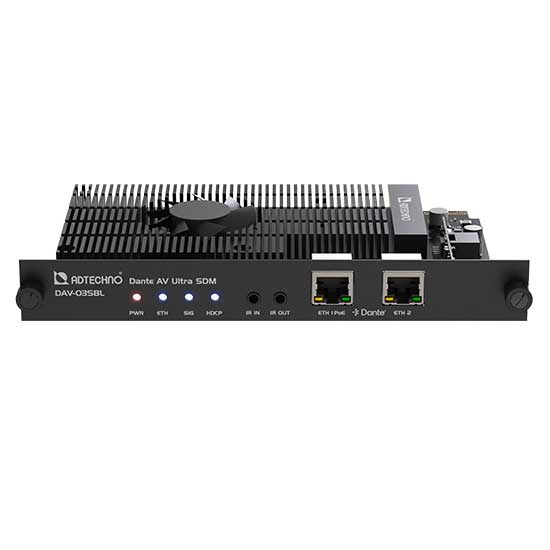

DAV-03SBL Product Image

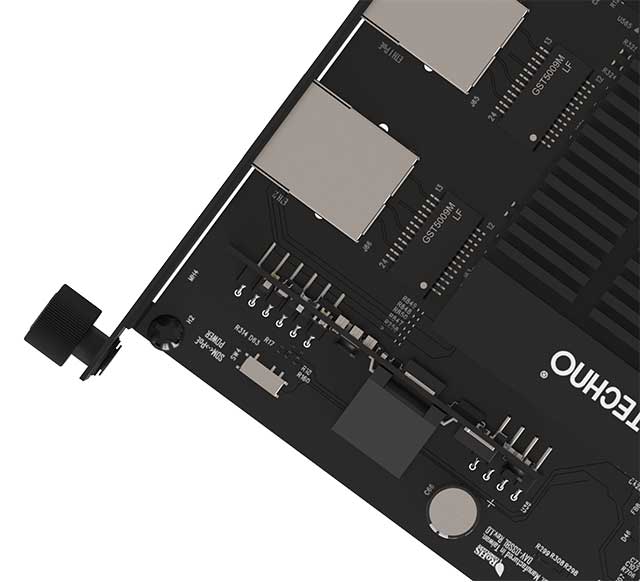

DAV-03SBL Product Image2
  • DAV-03SBL Product Image
  • DAV-03SBL Product Image2
  • Stunning 4K UHD 60p 4:4:4 Video Output
  • Visually Lossless Colibri Codec Compression
  • Intel® SDM-L Platform Integration
  • Dual Ethernet Ports with Native Daisy-Chain Support
  • Native 5x5 Video Wall Synchronization
  • Flexible Power Configuration (PoE & SDM Host Power)
  • Seamless Integration with the Full Dante Ecosystem
  • AES67 Audio Interoperability
  • Best of Show Award, AV Technology Category

Related Links

Introduction

The DAV-03SBL is an advanced AV solution built on the Intel® Smart Display Module platform, enabling seamless integration into Intel® SDM-compatible displays and projectors while eliminating the need for external equipment such as wall boxes or patch panels.

It delivers high-quality 4K UHD 60p 4:4:4 video and precise audio transmission with ultra-low latency and perfect synchronization over a single 1GbE IP connection. Utilizing the Colibri codec, the DAV-03SBL ensures real-time AV delivery, ideal for live events and large-scale installations. Fully compatible with Dante AV Ultra, it supports centralized control via Dante Controller, Dante Director, Dante Domain Manager, and Dante Studio. AES67 support ensures interoperability with other AES67-compliant devices.
With dual Ethernet ports, the DAV-03SBL enables daisy-chain connectivity for simplified video wall and multi-screen installations, reducing system complexity and cost.

Designed for corporate AV, education, digital signage, broadcasting, and live events, the DAV-03SBL offers outstanding flexibility, scalability, and reliability for professional AV environments.

Features

Stunning 4K UHD 60p 4:4:4 Video Output

Experience uncompromised visual clarity with ultra-detailed 4K UHD resolution at 60 frames per second and 4:4:4 chroma subsampling. Perfect for demanding environments like live events, broadcasting, digital signage, and mission-critical monitoring, where every pixel counts.

Intel® Smart Display Module Platform Integration

Designed for Intel® SDM-L, the DAV-03SBL fits directly into compatible displays and projectors. This eliminates the need for external AV receivers or decoder boxes, enabling elegant, all-in-one installations with reduced system complexity.

Dual Ethernet Ports with Native Daisy-Chain Support

Simplify your network architecture with built-in dual Ethernet ports that support daisy-chain connections. Easily distribute signals across multiple displays without the need for external switches or hubs, reducing installation costs and potential points of failure.

Dual Ethernet Ports with Native Daisy-Chain Support

Native 5x5 Video Wall Synchronization

Create immersive large-scale video walls with support for up to 25 synchronized displays. Thanks to built-in synchronization and Dante AV Ultra precision timing, no external processors or synchronization tools are required—just plug, configure, and deploy.

Flexible Power Configuration (PoE & SDM Host Power)

Power the module either via Power over Ethernet (PoE) or directly through the Intel® SDM slot from the host display. This dual-power approach simplifies deployment and eliminates the need for bulky adapters or separate power supplies.

The largest AV over IP technology ecosystem

Compatible with over 4,000 existing Dante products available on the market. Controlling video, audio and control signals has never been easier with the familiar Dante Controller Software. Installing ADTECHNO Dante AV Ultra onto an existing 1GbE network infrastructure is straightforward, without encountering management difficulties and performance issue.

The largest AV over IP technology ecosystem

Dante Controller

Seamless integration into an existing Dante audio network. The ADTECHNO Dante AV Ultra is easily managed with flexible, independent routing for audio, video, USB, IR and RS-422 (VISCA) through the use of Dante Controller.

Learn more

Network Switch Guide

The following features are required for the Dante AV Ultra Smart Display Module and decoder to work seamlessly within a single network switch system:

  • 1GbE Managed
  • Multicast capabilities
  • IGMP Snooping and Querie
  • Immediate and Fast Leave
  • QoS (Quality of Service)

For more details, please consult Audinate's website.

Learn more

NETGEAR AV Line, M4250 Switches are also available for a seamless integration solution for deploying Dante AV.

Learn more

Specification

Model No. DAV-03SBL
Product Name Dante AV Ultra Smart Display Module - Dante AV Ultra Colibri to Intel® SDM
Audio/Video Input 1 x RJ-45 with PoE - 1GbE*1
Audio/Video Output 1 x SDM Golden Finger, 1 x RJ-45*1
Other I/O IR Input 1 x 3.5mm stereo jack
IR Output 1 x 3.5mm stereo jack
Dimension 195 (W) x 112 (D) x 25 (H) mm*2
Power PoE 802.3 af or SDM Host
Power Consumption 10W max.
Operating Temperature 0 to 40 ℃ (32 to 104 ℉)
Storage Temperature -40 to 60 ℃ (-40 to 140 ℉)
Operating Humidity 10-90% noncondensing
Box Content 1 x DAV-03SBL, 1 x Quick User Guidee
Warranty 1 year

*1 For daisy-chain use only
*2 protrusions not included
*Dante and Audinate are registered trademarks of Audinate Holdings Pty Ltd. All trademarks and copyrights are the property of their respective owners.

Formats

Video Output Format

Resolution Frequency (Hz)
4096 x 2160p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
3840 x 2160 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
2560 x 1600 60
1920 x 1200p 60
1920 x 1080p 23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
1600 x 1200 60
1280 x 720p 50/ 59.94/ 60
1080i 50/ 59.94/60
1024 x 768 60
576p 50
