LCD97T is an ultra slim design, 39mm of a 9.7 inch IPS panel LCD Monitor with 5-wire resistive touch panel, HDMI, DVI-D, VGA and two video inputs using a customized SKS cable that enables easy cable management. The input resolution supports up to 1080p - digital, and 1600x1200 pixels -analog of LCD97 adapts to a wide variety of applications including security, education, medical, digital signage, and FA.
Wide view angle IPS panel |
Ultra slim, small and light design for limited-space installation LCD97T has only a 235mm width, 30mm thickness with 630g weight. The monitor is ideal for limited-space installation. |
Multi-input signal support
LCD97T supports both digital and analog input signals with abundant input interfaces, HDMI, DVI-D, VGA and Video. LCD97T also supports up to 1080P (digital) and 1600x1200 (analog) resolution input displaying the contents fit to the screen.
HDCP (High-bandwidth Digital Content Protection) 1.4 compliant
LCD97T is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.
5-wire resistive touch panel model available
Convenient touch-screen models, LCD97T or LCD97TW is used as your input device. The touch screen model utilizes the USB port as the interface.

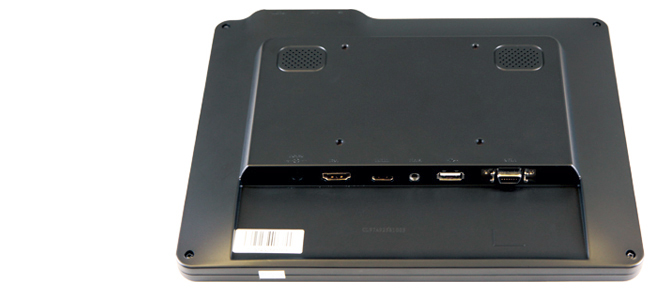

Customized SKS cable connection Customized SKS cable contains 14 pins SKS terminal to 9 pins VGA, 2 x Video, Audio and DC input terminals which enables easy cable management. |
Stepless Adjustable Stand with A Low Center-Of-Gravity
LCD97T has a stepless adjustable stand which enables bending and stretching to an ideal angle of your monitor installation. The rear side the stand also includes wall-mount hooks.
Model No. | LCD97T / LCD97TW | ||
---|---|---|---|
Color | Black / White | ||
Display |
Size | 9.7” | |
Resolution | 1024×768 | ||
Brightness | 350 cd/m2 | ||
Contrast Ratio | 900:1 | ||
View Angle | 170°(V) / 170°(H) |
||
Touch Panel | Type | 5-wire resistive | |
Control interface | USB (Type-A) | ||
VESA (FPMPMI) standard | 75mm x 75mm | ||
Power | DC12V 1.2A | ||
Supported OS (touch function) | Windows 10/8.1/8/7 | ||
Operating Temperature | 0 to 50 degree | ||
Storage Temperature | -20 to 60 degree | ||
Dimensions | 238.3 mm×189.2mm×27 mm | ||
Weight | 630g *excl. stand | ||
Package Contents | Remote Controller, Customized SKS cable,Customized VGA cable (miniDIN 9pin to VGA),Stand, AC Adaptor, Manual,Touch pen,Driver CD | ||
Certification | FCC, CE, RoHS |
※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Windows and Windows 10 is either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
