13.3 inch LED backlight SDI Monitor「LCD1330S」

  • ■ 13.3 inch Full HD 1920x1080 IPS panel LCD Monitor
  • ■ 3G-SDI/HDMI/ DVI-D/ VGA/ Video inputs support
  • ■ Pixel-to-Pixel and Underscan display mode
  • ■ Function Key feature
  • ■ Stepless adjustable stand with a low gravity center design
  • ■ VESA (FPMPMI 75x75mm) hole support

LCD1330/img/main.jpg Model No :LCD1330S
[SDI model, Color: Black]

■ Introduction

LCD1330S features a 13.3 inch 1920x1080 Full HD IPS panel with 3G-SDI / HDMI/ DVID/ VGA/ Video & Audio input, brightness of 300 cd/m2, view angle of 170 ° (vertically and horizontally), and contrast ratio of 800:1.
LCD1330S has a thickness of 30mm and is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 4 threaded holes compatible with FPMPMI 75 x 75mm VESA mounts.
Furthermore, built-in to the rear bottom corner of the LCD1330S is a loop for attaching anti-theft cables, etc.
The versatility of the LCD1330S makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

■ Features

Full HD Resolution (1920x1080), wide angle (170°) IPS LCD panel

The LCD1330S is equipped with a full HD resolution (1920 x 1080) 13.3 inch IPS panel with a brightness of 300cd/m2, contrast ratio of 800:1 and view angle of 170° (vertically and horizontally).

Supports 3G-SDI input

SMPTE standard 3G-SDI input is fully supported by the LCD1330S. Uncompressed digital HD video and audio can be delivered over long distances via a single coaxial cable. The LCD1330S also includes SDI pass-through function, outputting the SDI input signal via the SDI output port for chain connections or connecting to other display devices.

Supports both Digital and Analog input

Digital and analog input signals such as HDMI, DVI-D, VGA and Video compatible.

HDCP (High-bandwidth Digital Content Protection) 1.4 compliant

LCD1330S is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.

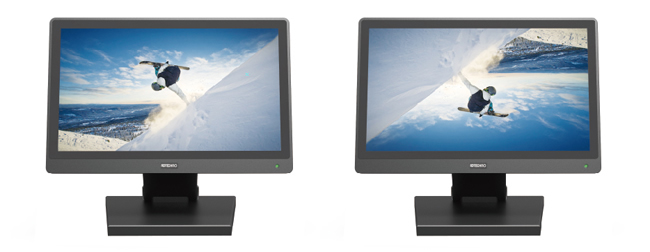

Image Flip Function

Flip the screen to adapt to installation and application.

Configurable quick access function key and
a Loop for anti-theft cable

Long pressing the Input/F1 button triggers the quick access function key. This function key can be mapped to a frequently used settings function for quick accessibility. A loop is built into the LCD1330S rear bottom for anti-theft cable, chain or lock attachments.

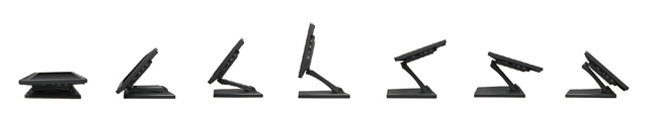

Stepless adjustable stand with low CG (centre of gravity)

LCD1330S features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

VESA mount FPMPMI 75×75mm compatible

LCD1330S is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75・5mm mounts. Removal of the stand is required to use the VESA mount holes.

■ Specifications

Model No. LCD1330S
Color Black
Display Size 13.3”
Panel Type IPS
Resolution 1920x1080
Brightness 300 cd/m2
Contrast Ratio 800:1
View Angle 170°(V) / 170°(H)
Input 3G-SDI/ HDMI/ DVI-D/ VGA/ Video/ Audio (stereo)
Output 3G-SDI/ Audio (stereo)
Speaker 2Wx2
VESA (FPMPMI) standard 75mm x 75mm
Power DC 10 ~ 24V
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Dimensions 325 mm×212 mm×30.5 mm
Weight Approx. 2600g (Approx.1200g=ヲExcluding stand)
Package Contents Monitor / HDMI Cable / VGA Cable / Video Cable / Remote Control /AC Adapter
Certification FCC, CE, RoHS

 ※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Windows and Windows 10 is either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
