 13.3 inch LED backlight LCD Monitor「LCD1330」

  • ■ 13.3 inch Full HD 1920x1080 IPS panel LCD Monitor
  • ■ HDMI/ DVI-D/ VGA/ Video inputs support
  • ■ Pixel-to-Pixel and Underscan display mode
  • ■ Function Key feature
  • ■ Stepless adjustable stand with a low gravity center design
  • ■ VESA (FPMPMI 75x75mm) hole support

Model No :LCD1330

■ Introduction

LCD1330 features a 13.3 inch 1920x1080 Full HD IPS panel with HDMI/ DVID/ VGA/ Video & Audio input , brightness of 300 cd/m2, view angle of 170 ° (vertically and horizontally), and contrast ratio of 800:1.

LCD1330 has a thickness of 30mm and is attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals 4 threaded holes compatible with FPMPMI 75 x 75mm VESA mounts.

Furthermore, built-in to the rear bottom corner of the LCD1330 is a loop for attaching anti-theft cables, etc.

The versatility of the LCD1330 makes it ideal for a wide range of applications: sub-monitors for PC use or filming, inspection/supervision-use at factory lines, educational institutes, exhibition and events, showrooms, video conferences, digital signage or as an OEM part integrated into another product.

■ Features

Full HD Resolution (1920x1080), wide angle (170°) IPS LCD panel

The LCD1330 is equipped with a full HD resolution (1920 x 1080) 13.3 inch IPS panel with a brightness of 300cd/m2, contrast ratio of 800:1 and view angle of 170° (vertically and horizontally).

Supports both Digital and Analog input

Digital and analog input signals such as HDMI, DVI-D, VGA and Video compatible.

HDCP (High-bandwidth Digital Content Protection) 1.4 compliant

LCD1330 is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.

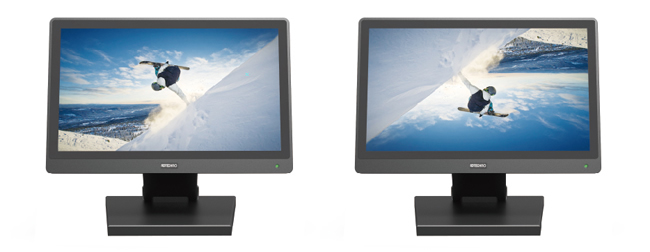

Image Flip Function

Flip the screen to adapt to installation and application.

Configurable quick access function key and
a Loop for anti-theft cable

Long pressing the Input/F1 button triggers the quick access function key. This function key can be mapped to a frequently used settings function for quick accessibility. A loop is built into the LCD1330 rear bottom for anti-theft cable, chain or lock attachments.

Stepless adjustable stand with low CG (centre of gravity)

LCD1330 features a stepless adjustable stand which enables tilting and adjusting to your desired angle. The bottom side of the stand also includes holes that can be used with wall-mount hooks (when fully collapsed).

VESA mount FPMPMI 75×75mm compatible

LCD1330 is equipped with 4 threaded holes compatible with VESA FPMPMI standard 75・5mm mounts. Removal of the stand is required to use the VESA mount holes.

■ Specifications

Model No. LCD1330
Color Black
Display Size 13.3”
Panel Type IPS
Resolution 1920x1080
Brightness 300 cd/m2
Contrast Ratio 800:1
View Angle 170°(V) / 170°(H)
Input HDMI/ DVI-D/ VGA/ Video/ Audio (stereo)
Output Audio (stereo)
Speaker 2Wx2
VESA (FPMPMI) standard 75mm x 75mm
Power DC 10 ~ 24V
Operating Temperature 0℃ ~ 50℃
Storage Temperature -20℃ ~ 60℃
Dimensions 325 mm×212 mm×30.5 mm
Weight Approx. 2600g (Approx.1200g=ヲExcluding stand)
Package Contents Monitor / HDMI Cable / VGA Cable / Video Cable / Remote Control /AC Adapter
Certification FCC, CE, RoHS

 ※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Windows and Windows 10 is either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
