The UH1560 features a 15.6 inch native 4K Ultra HD, 3840x2160 resolution IPS panel with a brightness of 330 cd/m2, view angle of 176°(vertically and horizontally), and a contrast ratio of 1000:1. The UH1560 is equipped with dual HDMI 2.0 supporting Ultra HD content at 60Hz, dual HDMI 1.4, Displayport 1.2 and analog VGA inputs. UH1560 is also compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
The UH1560 lets you view selected input data from up to 4 input sources at once, including selections of “4P (4 pictures at once)”, “2P LR (2 pictures on left and right)”, “2P TB (2 pictures on top and bottom)” and “PIP (Picture-In-Picture)”. The UH1560 also provides versatile functions for video production and broadcasting applications, including Safety Marker, Pixel-by-Pixel and Check Field with four color mode. The UH1560 has a thickness of 36mm with four 1/4-inch screw holes on top and bottom, left and right edges to mount on a tripod, an arm or a clamp, and is also attached with a removable, low CG, stepless adjustable stand. The stand can be collapsed to a compact size for convenience. Removing the stand reveals thread holes compatible with FPMPMI 75x75 and 100x100mm VESA mounts. Furthermore, A slot compliant with Kensington Security Slot is built-in to the rear bottom corner of the UH1560. Various installation methods are provided by functions such as Display Rotation, Image Mirror, and also Button Lock for mischief prevention.
The UH1560 provides AC/DC and battery driven with DC and mini 4 pin XLR connector. V-mount battery plate is mountable directly to the back of the monitor. The additional U-type stand, attachable sunshade and 19-inch rack mount (6U) brackets are available to meet the wide range of applications.

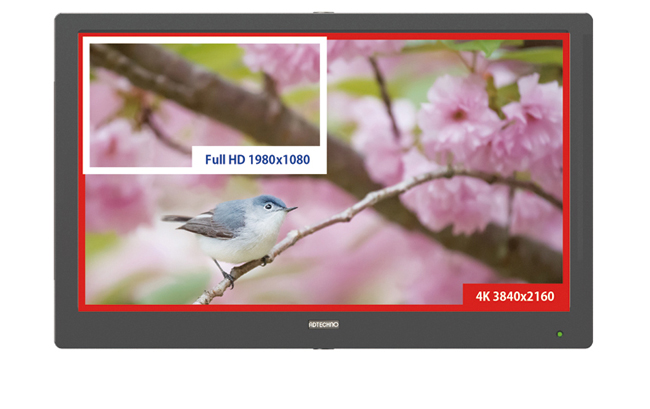

The UH1560 features a 15.6-inch native 4K Ultra HD, 3840x2160 resolution IPS panel with a brightness of 330 cd/m2, view angle of 176° (vertically and horizontally), and a contrast ratio of 1000:1.
The UH1560 is equipped with dual HDMI 2.0 supporting 4K Ultra HD signal at 60Hz, compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4 that enables watching copyright-protected content such as Blu-ray. Another dual HDMI 1.4 with HDCP 1.4 is also available for multi-signal inputs support.
The UH1560 is also equipped with Displayport 1.2 and Analog VGA inputs to meet the wide range of applications.

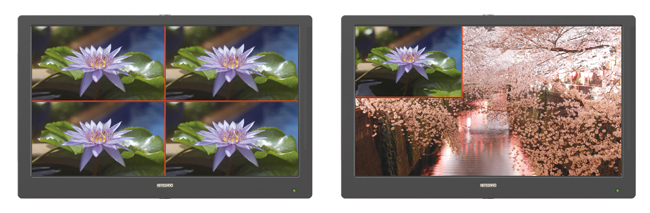

The UH1560 lets you view selected input data from up to 4 input sources at once, including selections of “4P (4 pictures at once)”, “2P LR (2 pictures on left and right)”, “2P TB (2 pictures on top and bottom)” PIP (Picture-In-Picture)”.

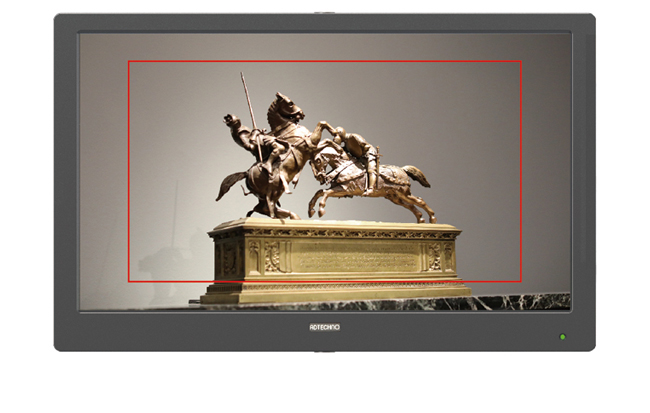

UH1560 provides versatile functions for video production and broadcasting applications, including Safety Marker, Pixel-by-Pixel and Check Field with four color mode.

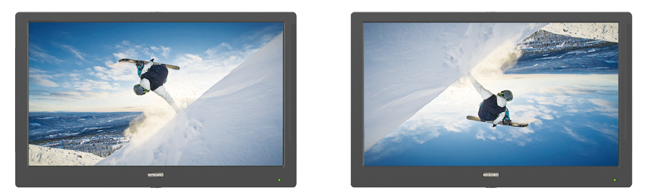

Various installation methods are provided by functions such as Display Rotation, Image Mirror, and also Button Lock for mischief prevention.
The UH1560 has a thickness of 36mm with four 1/4-inch screw holes on top and bottom, left and right edges to mount on a tripod, an arm or a clamp.
The UH1560 provides AC/DC and battery driven with DC and mini 4 pin XLR connector. An optional V-mount battery plate, UH15-VMP is mountable directly to the back of the monitor.

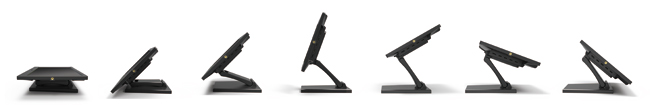

The UH1560 is attached with a removable, low CG, stepless adjustable stand which enables bending and stretching to an ideal angle of your monitor installation. The rear side the stand also includes wall-mount hooks. Removing the stand reveals thread holes compatible with FPMPMI 75x75 and 100x100mm VESA mounts.
A slot compliant with Kensington Security Slot is built-in to the rear bottom corner of the UH1560.

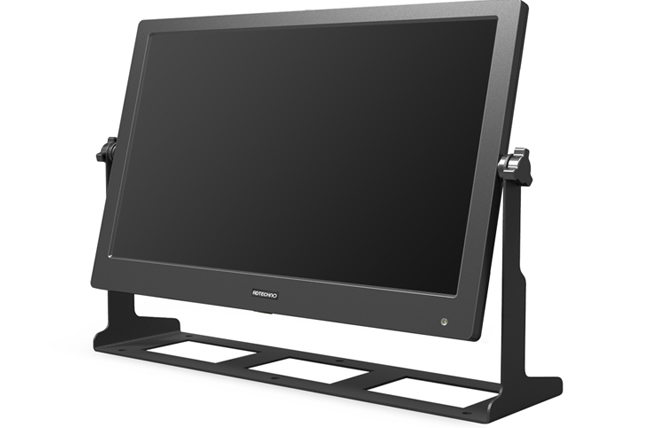

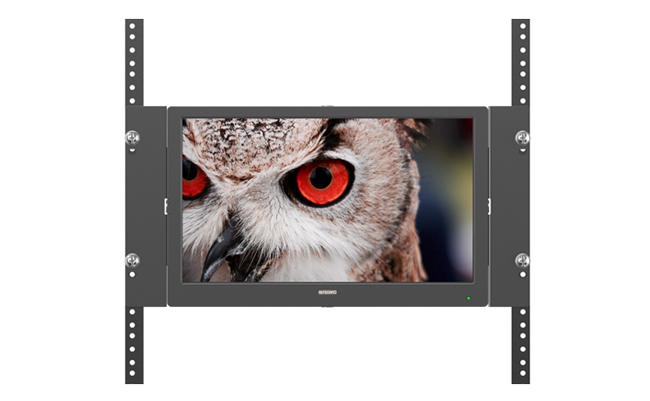

The additional U-type stand, attachable sunshade and 19-inch rack mount (6U) brackets are available to meet the wide range of applications.
Model No. | UH1560 | |
---|---|---|
Color | Black | |
Panel | Size | 15.6” |
Type | IPS | |
Resolution | 3840 x 2160 | |
Brightness | 330 cd/m2 | |
Contrast ratio | 1000:1 | |
View Angle | 176°(H)/176°(V) | |
Input | HDMI 2.0 x 2 (HDCP 2.2 and 1.4) / HDMI 1.4 x 2 (HDCP 1.4) / DisplayPort 1.2 x 1 / VGA x 1 | |
Output | 3.5mmΦ Phone Jack | |
Speaker | 2W x 2 | |
VESA (FPMPMI) | 75 x 75 mm / 100 x 100 mm | |
Power | DC10~24V / mini 4 pin XLR | |
Power Consumption | 17W | |
Operating Temperature | 0 ~ 50℃ | |
Storage Temperature | -20 ~ 65℃ | |
size | 383(W) x 239(H) x 36(D) mm (not including stand) | |
Weight | 1,360kg (not including stand) | |
Accessories | Remote Controller and AC Adaptor |
※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
