DP Alt & PD Optical Fiber USB CableAUC-xxxM
- Compatible with USB 3.2 Gen2 (USB 3.1)standard
- Maximum data transfer rate 10Gbps
- Support DP Alt Mode (Ver.1.4)
- Supports up to 4K60Hz (16.2Gbps transmission)
- Support USB Power Delivery Max 60W (20V/3A)
- Compatibility with USB 2.0 / USB 1.1 standards
- Transmission up to 10m
- Excellent electromagnetic compatibility
Related Links
Introduction
AUC is an active USB-C cable with Power Delivery support that can transmit USB 3.2 Gen2 (10Gbps) high-speed data signals and DisplayPort (Alt Mode) 4K video signals through glass optical fiber cables. By adopting a high-performance multi-mode VCSEL laser and low-data loss OM3 standard optical fiber, it can transmit data and video transmission up to 10 meters.
It is compatible with the USB 3.2 Gen2 (USB 3.1) standard, allowing for USB data transfer up to 10Gbps. It also includes a built-in IC for compatibility with legacy devices using USB 2.0 and 1.1 standards. This makes it usable for connecting any USB device from the latest PCs to existing webcams and printers.
Additionally, it supports DisplayPort signal transmission over two lanes through DP Alt Mode (DisplayPort Alternate Mode over USB-C), allowing for stable transmission of signals up to 4K60Hz (16.2Gbps).
Moreover, it supports USB Power Delivery, allowing for power supply up to 60W (20V/3A) to the latest PCs such as MacBook and Chromebook.
Features
Compatible with USB 3.2 Gen2 (USB 3.1)standard

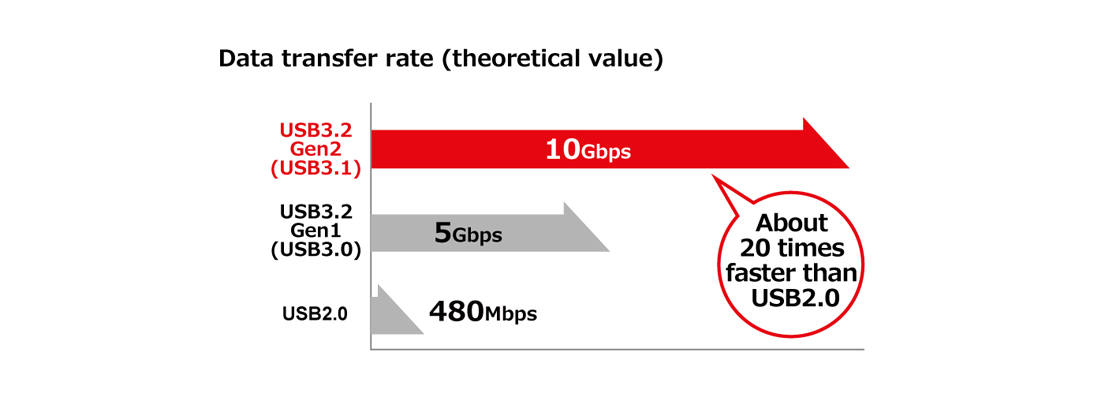

AUC is compatible with the USB 3.2 Gen2 (USB 3.1) standard and allows for USB data transfer speeds up to 10Gbps.
Support DP Alt Mode (Ver.1.4)
AUC supports the DP Alt Mode (DisplayPort Alternate Mode over USB-C) function, which is widely used with USB-C connectors. It uses the USB-C wire to transmit DisplayPort signals (video and audio). The DisplayPort signal is transmitted with 2 lanes, and it can stably transmit signals up to 4K60Hz (16.2Gbps).
※ Please Note :
Not all USB Type-C devices support DP Alt Mode. Please check the user manual of your device or contact the manufacturer for details. Also, the connector of this product has [Source][Display]. If you use it with DP Alt Mode, it will not work properly if you connect it in the wrong direction.
Not all USB Type-C devices support DP Alt Mode. Please check the user manual of your device or contact the manufacturer for details. Also, the connector of this product has [Source][Display]. If you use it with DP Alt Mode, it will not work properly if you connect it in the wrong direction.
Support USB Power Delivery Max 60W (20V/3A)
With USB Power Delivery support, it's possible to supply power to the latest PCs such as MacBook and Chromebook with a maximum high current of 60W (20V/3A).
Compatibility with USB 2.0 / USB 1.1 standards
The device is equipped with a compatibility driver IC for USB 2.0 and 1.1 standards, ensuring compatibility with legacy devices. It can be used to connect to any USB device, from webcams , printers, to the latest PCs.
Transmission up to 10m
AUC adopts a hybrid structure of optical fiber and copper wire. Optical fiber communication is used for high-speed data transfer of USB 3.2 standard and 4K video transmission by DP Alt Mode, while copper wire connection is allocated for legacy data transfer of USB 2.0/1.1 standard and power delivery function of USB Power Delivery. With this hybrid design, AUC realizes the various functions of USB-C, and achieve long-distance communication up to 10m.

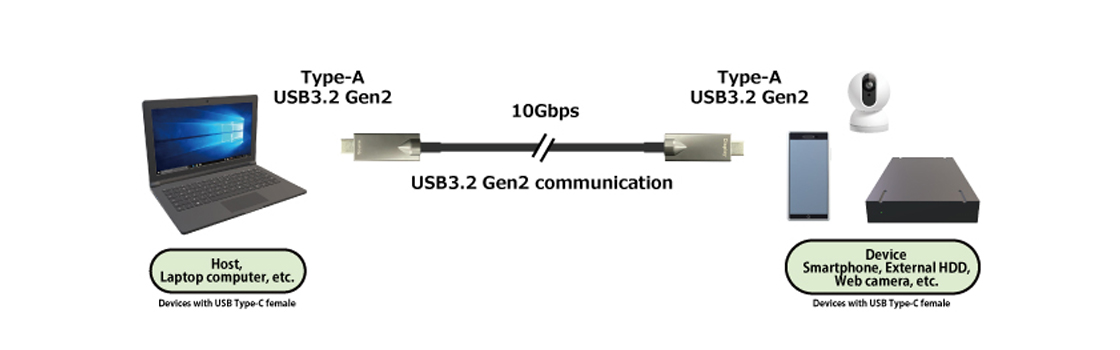

During USB data communication

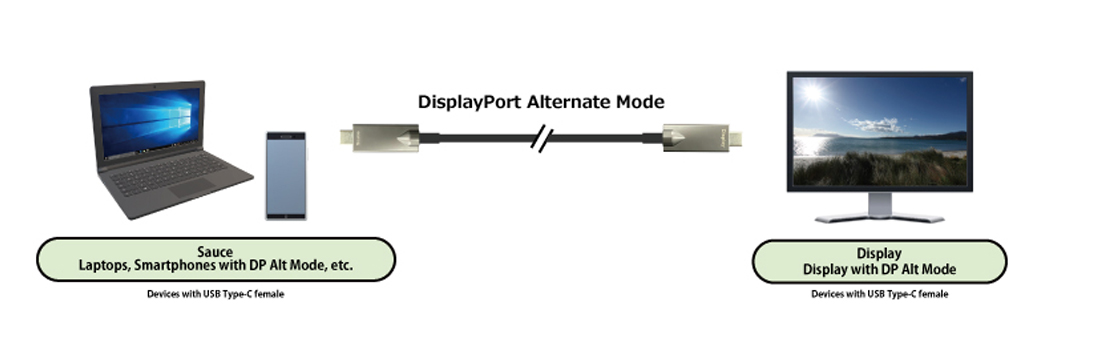

In DP Alt Mode(Ver.1.4)
Excellent electromagnetic compatibility
The connector part, which is made of metal casing, has excellent electromagnetic compatibility, making it less susceptible to external noise interference and minimizing noise generation from the main unit. In addition, the copper and fiber wires inside the cable are covered with braided copper wire shields, improving the cable's noise resistance. Therefore, it is also ideal for environments that require low noise, such as medical equipment.
Support Standard
| USB3.2 Gen2 (10Gbps) | ✔ |
|---|---|
| USB3.2 Gen1 (5Gbps) | ✔ |
| USB2.0 (480Mbps)/1.1 (12Mbps) | ✔ |
| USB Power Delivery (PD) | 60W |
| DP Alternate Mode | ✔ |
Specification
| Model No. | AUC-xxxM (xxx is the cable length) | ||
|---|---|---|---|
| Cabe Length(m) | 7 / 10 | ||
| Connector | Host | Type C (Male) | |
| Device | Type C (Male) | ||
| Connector Max Dim | 15mm | ||
| Cable Type | Active:GOF 4 / Copper Wire 8 | ||
| USB Spec | USB 3.2 Gen2 (USB 3.1) / USB 3.2 Gen1(USB 3.0) / USB 2.0 / USB 1.1 | ||
| Data Max Speed | 10Gbps | ||
| Alternate Mode | DisplayPort Alternate Mode | ||
| DP Max Speed | DP 2 lane (Ver.1.4) 16.2Gbps | ||
| USB Power Delivery | Max 60W (20V/3A) | ||
| External Power | Not Required | ||
| Max Power Consumption | 1.1W | ||
| Cable Color | Black | ||
| Cable Shield | PVC | ||
| Cable Diameter | 6.5mm±0.2mm | ||
| Bending Radius | 65mm | ||
| Cable Crush Resistance | Long Term:200N (20.4kgf) / Instant:600N (61.2kgf) | ||
| Cable Tensile Strength | Long Term:150N (15.3kgf) / Instant:300N (30.6kgf) | ||
| Cable Direction | DP Alt Mode has cable direction | ||
| Operating Temperature / Storage Temperature | 0℃~50℃ / -20℃~70℃ | ||
| Operating Humidity / Storage Humidity | 5~90%(no condensation) | ||
| Accessory | N/A | ||
| Warranty | 12 months (Only the internal IC chip in the connector part) | ||
| Certificate | FCC / CE / RoHS | ||
