10.1 inch LED backlight LCD Monitor with multi-input signal support「LCD1012」



  • ■ Ultra slim design
  • ■ 9.7 inch 1024x768, wide view IPS LCD Monitor
  • ■ HDMI/ DVI-D/ VGA/ Video x2 inputs support
  • ■ Stepless adjustable stand with a low gravity center design
  • ■ VESA (FPMPMI 75x75mm) hole support



Model No :LCD97
[Color:Black]

Model No :LCD97W
[Color:White]





■ Introduction

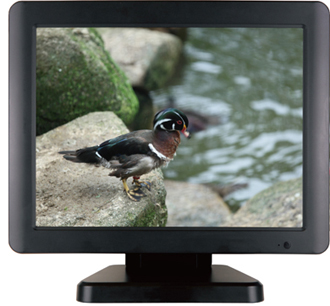

LCD97 is an ultra slim design, 39mm of a 9.7 inch IPS panel LCD Monitor with HDMI, DVI-D, VGA and two video inputs using a customized SKS cable that enables easy cable management. The input resolution supports up to 1080p - digital, and 1600x1200 pixels -analog of LCD97 adapts to a wide variety of applications including security, education, medical, digital signage, and FA.



■ Features

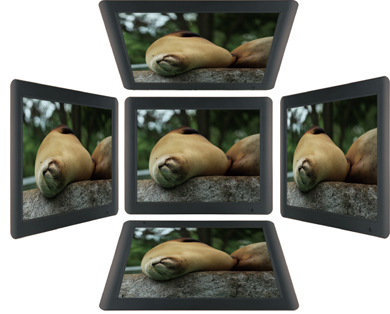

Wide view angle IPS panel
170/170 degree (H/V)


Ultra slim, small and light design for limited-space installation

LCD97 has only a 235mm width, 30mm thickness with 630g weight. The monitor is ideal for limited-space installation.


Multi-input signal support

LCD97 supports both digital and analog input signals with abundant input interfaces, HDMI, DVI-D, VGA and Video. LCD97 also supports up to 1080P (digital) and 1600x1200 (analog) resolution input displaying the contents fit to the screen.


HDCP (High-bandwidth Digital Content Protection) 1.4 compliant

LCD97 is capable of displaying HDCP 1.4 protected media contents such as Blu-ray, etc.

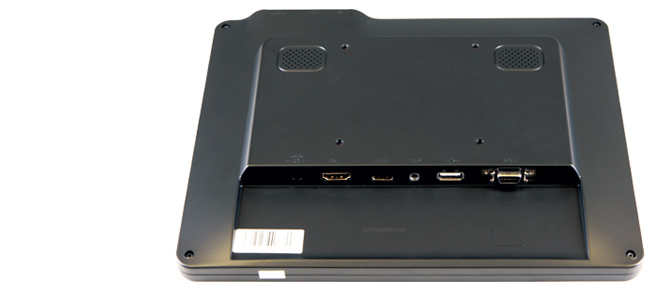

Customized SKS cable connection

Customized SKS cable contains 14 pins SKS terminal to 9 pins VGA, 2 x Video, Audio and DC input terminals which enables easy cable management.


Stepless Adjustable Stand with A Low Center-Of-Gravity

LCD97 has a stepless adjustable stand which enables bending and stretching to an ideal angle of your monitor installation. The rear side the stand also includes wall-mount hooks.






■ Product Specifications

Model No. LCD97 / LCD97W
Color Black / White
Display
Size 9.7”
Resolution 1024×768
Brightness 350 cd/m2
Contrast Ratio 900:1
View Angle 170°(V) / 170°(H)
VESA (FPMPMI) standard 75mm x 75mm
Power DC12V 1.2A
Operating Temperature 0 to 50 degree
Storage Temperature -20 to 60 degree
Dimensions 238.3 mm×189.2mm×27 mm
Weight 630g *excl. stand
Package Contents Remote Controller, Customized SKS cable,Customized VGA cable (miniDIN 9pin to VGA),Stand, AC Adaptor, Manual
Certification FCC, CE, RoHS

 ※HDMI, HDMI logo, or High-Definition Multimedia Interface, are trademarks or registered trademarks of HDMI Licensing LLC.
※Due to product improvements, specifications are subject to change without notice.
※Compatibility with ALL devices not guaranteed.
