4K UHD Digital Signage Media Player AS4K2K 「AS4L01X」

  • ■ The next-generation High Efficiency Video codec (HEVC), H.265 support
  • ■ Auto Content Play
  • ■ Up/Down Scaling
  • ■ USB 3.0 Auto Copy
  • ■ Auto Power ON/OFF
  • ■ Video Synchronized Playback
  • ■ FTP Auto Download
  • ■ Multi-Zone Display - Video/Picture/Text Scrolling
  • ■ RS-232-C Remote Control
  • ■ Play Button Content Control [Option]


Model No : AS4L01X

RoHS fc ce





■ Introduction

The AS4L01X is an easy-to-use, dual core 1.7GHz ARM-based, high performance, low-cost digital signage media player with the capability of decoding High Efficiency Video Codec (HEVC) in 4K2K@60 10 bit YUV 4:2:0 seamlessly.
The AS4L01X features 4K Up-scaling Function that upscale 1080p to sharp 4K resolution, a Video Synchronized Function that enables to build video walls with separate 4K videos per display, a USB 3.0 Auto Copy Function that detects the inserted USB flash drive which automatically replaces the existing files on the SD card with the media files on the USB flash drive - an extremely easy method to update media contents.
The AS4L01X provides lots more other functions, such as FTP Auto Download Function and its log function. Auto Timer Function, Multi-Zone Display Function with mixture of video, picture and test scrolling playback, and RS-232 remote control.
An optional add-on play button box is available to provide interactive playback control.





■ Features

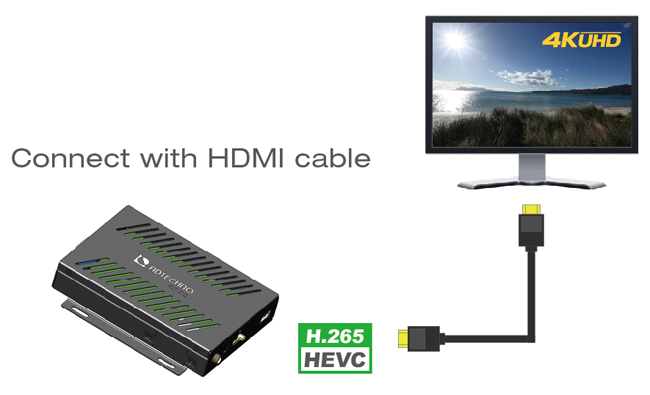

The next-generation High Efficiency Video codec (HEVC),
H.265 support

The AS4L01X is a dual core 1.7GHz ARM-based digital signage media player with the capability of decoding High Efficiency Video Codec (HEVC), H.265 in 4K2K@60 10bit YUV4:2:0 seamlessly.
The AS4L01X provides the ability to automatically play video content from SDXC Card.

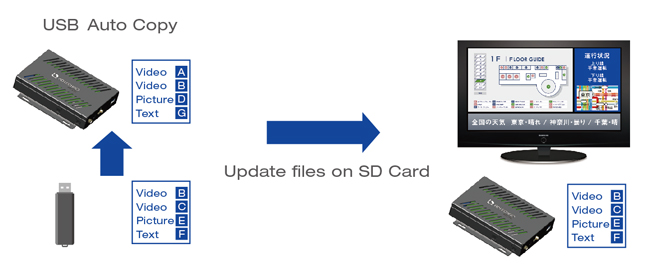

USB 3.0 Auto Copy

USB 3.0 Auto Copy Function that detect the inserted USB flash drive which automatically replaces the existing files on the SD card with the media files on the USB flash drive - an extremely easy method to update media contents.




Auto Power ON/OFF

The AS4L01X has a built-in Real Time Counter (RTC) that allows you to set the frame to turn on or off automatically at a selected time of the day.


Up/Down Scaling

The AS4L01X features a scaling function that up or down scale an original content resolution to the best matched resolution that your connected TV supports.

Supported scaling resolution:
2160p60Hz/ 2160p50Hz/ 2160p30Hz/ 2160p25Hz/ 2160p24Hz/ 4096x2160p60Hz/ 1366x768@60Hz/ 1080p60Hz/ 1080p50Hz/ 1080p30Hz/ 1080p25Hz/ 1080p24Hz/
1080i50Hz/ 1080i/ 480p/ 576p/ 720p/ 720p50Hz/
NTSC/ Pal-B/ Pal-B1/ Pal-D/ Pal-D1/ Pal-G/ Pal-H/ Pal-I/ Pal-K/ Pal-M/ Pal-N/ Pal-Nc/
VESA 640x480@60Hz/ VESA 1024x768@60Hz/ VESA 1280x720@60Hz/
VESA 1366x768@60Hz

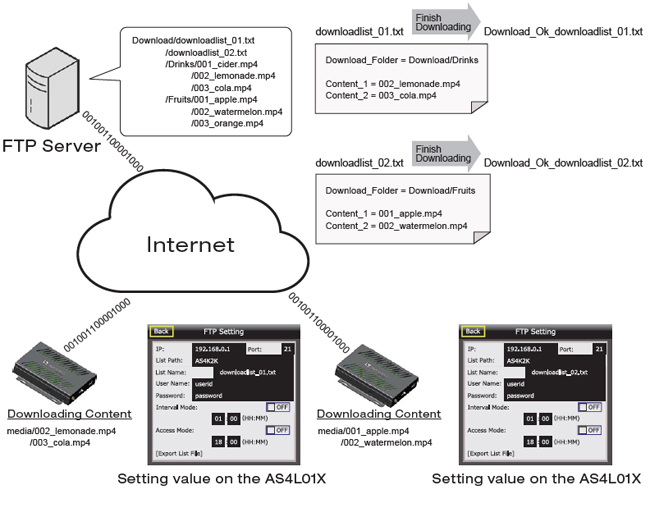

FTP Auto Download

FTP Auto Download Function enables AS4L01X to download new playing contents through the Internet. This also features download log function. The download method can be selected by interval model or access mode.

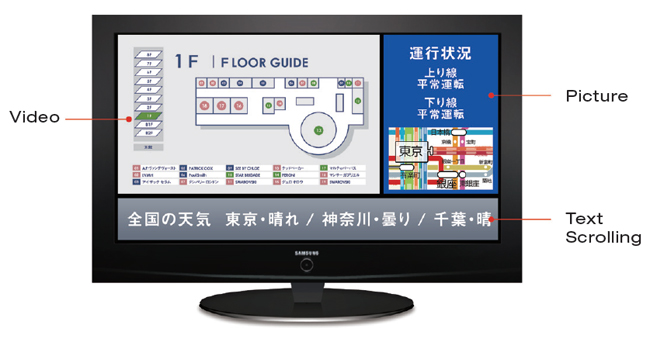

Multi-Zone Display - video, picture and text scrolling

Multi-Zone Display features to display video, picture and text scrolling on a single display.
Video and Picture display areas can be chosen from 3 different options.

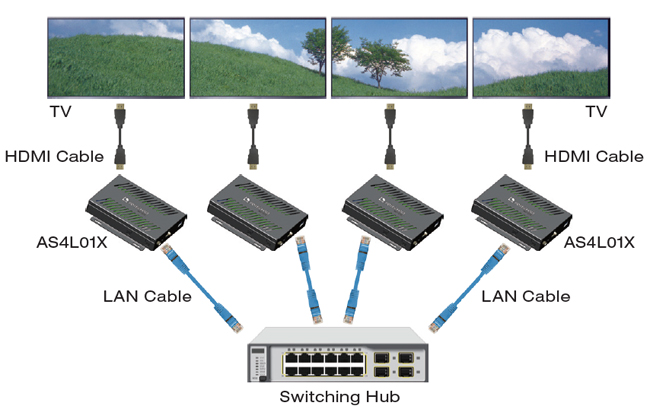

Video Synchronized Playback

Video Synchronized Playback Function enables to build video walls with separate 4K videos per display. The maximum number of synchronizing AS4L01X is up to 50 devices.


RS-232-C Remote Control

The AS4L01X can be controlled by sending serial commands from PC.

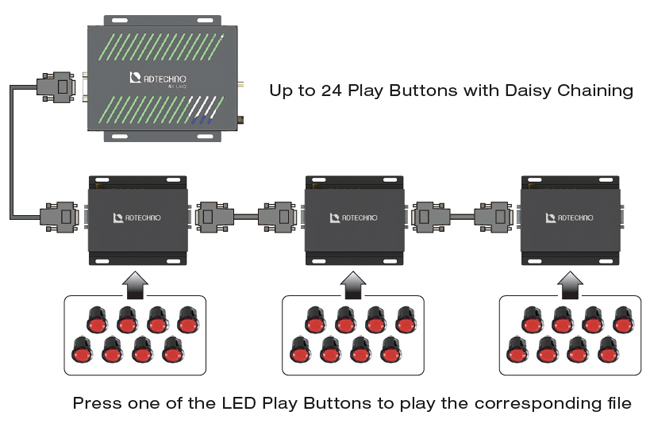

Play Button Content Control [Optional add-on]

An optional add-on play button box, BX08R is a play button control box used in tandem with the AS4L01X in which users can plug their ideal number of LED play button for interactive applications.
The BX08R also has RS-232 signal connectors with a DIP switch for daisy chaining of up to 3 units of BX08R, providing up to 24 play buttons to control video playback contents.

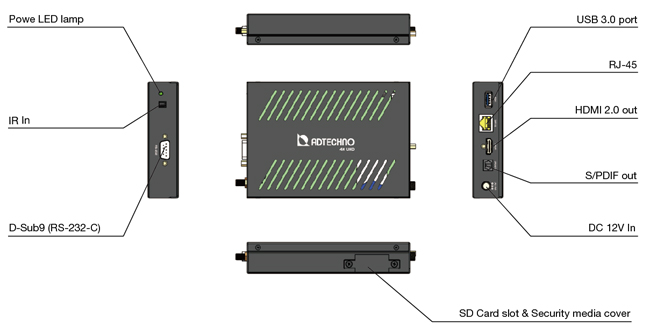

Rugged Metal-cased with VESA 75/100 Monting Ear

AS4L01X is engineered within a rugged industrial metal-cased enclosure for corrosion resistance. VESA 75/100 mounting ear is also included for secure bracket fixing.




Specification



Series AS4K2K
Model No. AS4L01X
CPU Dual Core 1.7GHz
GPU OpenGL E3.1
Memory eMMC (8GB) / DDR 4 (2GB)
Network RJ45 (1000Base-T)
Supported Media Device SD(XC) Card x 1
Supported File Format Video: H.265/ H.264/ MPEG-2/ MPEG-4/ VP9/(*.mov/*.mp4/*.mpg)
Picture: JPG/ PNG/ BMP
Display Resolution 4K2K UHD@60, 4K2K UHD@30,
1080p@90, 1080p@60, 1080i@60, 720p@60
Video Output HDMI 2.0 x 1
Audio Output HDMI 2.0 x 1, S/PDIF x 1
Serial I/O & GPIO D-Sub9
Other I/O USB 3.0 x 1
Operating Temperature 0 - 40 degree
Operating Humidity 10 - 85% (no condensation)
Power DC 12V / 1.5A
Dimensions 153.5mm x 107 mm x 28.8 mm
Weight 550g

 *Due to product improvements, specifications are subject to change without notice.
